NOTCHING SAW FOR ALUMINIUM PROFILES – EVOSF

Precision Slotting and Notching for Aluminium Façade Structures

Precision, Versatility, and Performance in Aluminium Profile Processing

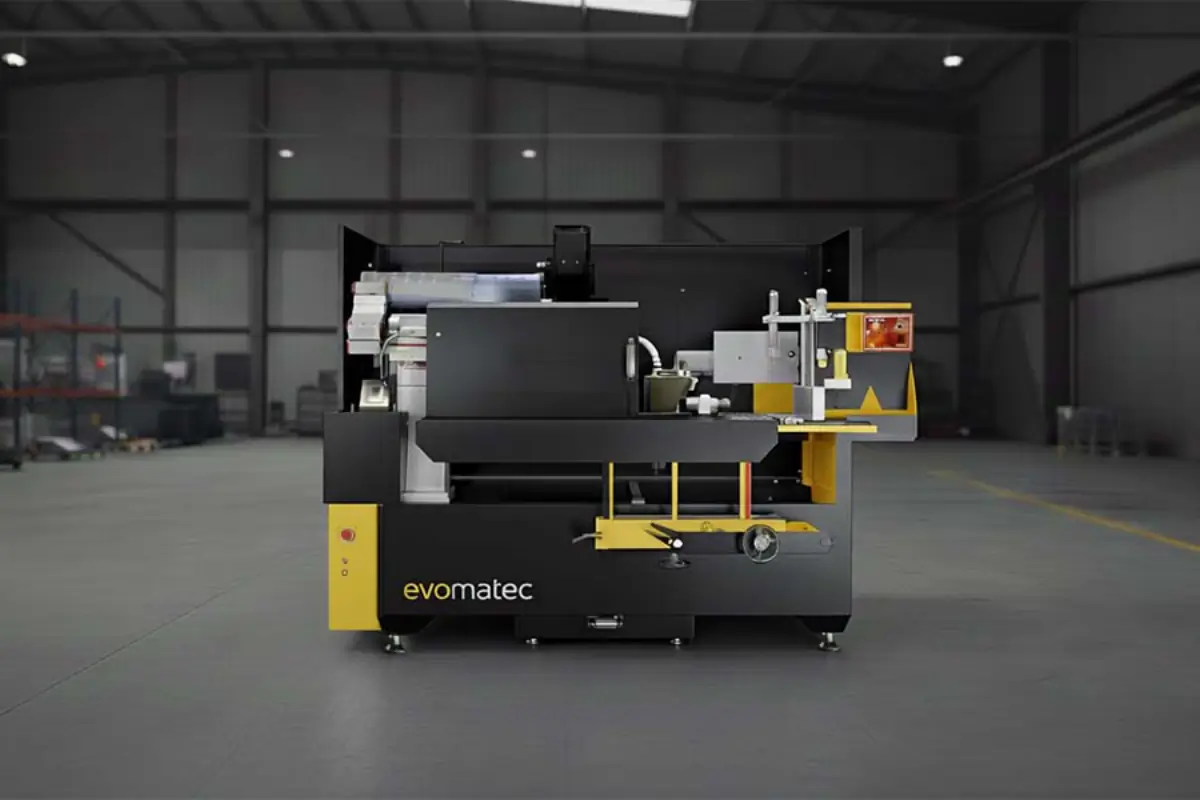

The EVOSF Notching Saw for Aluminium Profiles is a specially designed sawing and slotting machine developed for the accurate machining of sash, frame, mullion, and transom profiles.
It is the ideal solution for curtain façades, conservatories, skylights, and custom aluminium structures requiring precise notches and grooves at various angles on profile edges and surfaces.

With its combined vertical and horizontal cutting units, automatic clamping system, and precision linear guide technology, the EVOSF offers superior dimensional accuracy, process reliability, and efficiency — perfectly suited for industrial aluminium fabrication and façade construction.

Advanced Slotting and Milling Technology for Aluminium Façades

The EVOSF notching saw for aluminium profiles is engineered for precise, repeatable, and clean notching of aluminium profiles.
Its dual-blade configuration allows simultaneous machining on both the vertical and horizontal planes, enabling complex grooves and cutouts in a single operation.

The motion system runs on precision linear guides, ensuring stable and vibration-free cuts.
The combination of pneumatic clamping, a rigid machine frame, and ergonomic operation makes the EVOSF one of the most powerful notching saws for aluminium profiles in its class.

High-Quality Construction and Technical Precision

Hydro-Pneumatic Clamping and Guidance System

The profile is automatically secured by vertical and horizontal clamping cylinders, ensuring maximum stability during cutting.
The saw units move linearly along the profile edge, achieving precise cuts without vibration or dimensional deviation.

Vertical Cutting Unit

  • Saw Blade Diameter: Ø 500 mm

  • Maximum Cutting Dimensions (W × H): 150 × 250 mm

  • Motor Power: 2.2 kW

  • Speed: 3,000 rpm

  • Maximum Cutting Depth: 200 mm

  • Saw Tilt Angle: ±45°

Horizontal Cutting Unit

  • Saw Blade Diameter: Ø 500 mm

  • Motor Power: 2.2 kW

  • Speed: 3,000 rpm

  • Mitre Angle: 0° / 45°

General Technical Data

  • Voltage: 380 V

  • Frequency: 50 Hz

  • Air Pressure: 6–8 bar

  • Air Consumption: 15 L/min

  • Maximum Profile Width: 150 mm

  • Maximum Profile Height: 250 mm

  • Machine Type: Aluminium Façade Notching Saw (EVOSF)

  • Power Supply: Pneumatic & Electric

Advantages of the EVOSF Notching Saw for Aluminium Profiles

  • Precise Grooves & Notches: Accurate processing for aluminium frames, mullions, and transoms.

  • Dual Cutting System: Vertical and horizontal units for maximum versatility.

  • High Stability & Repeatability: Linear guide system eliminates vibration and dimensional error.

  • Automatic Clamping: Ensures firm profile fixation for reproducible results.

  • Variable Angle Settings: ±45° tilt and 0°/45° mitre positions for flexible cutting options.

  • Energy-Efficient & Low Maintenance: Durable design, long-life motors, and low air consumption.

  • CE-Compliant & Industry-Ready: Built according to the latest European safety and quality standards.

Typical Applications

  • Façade Construction: Precise notching and slotting of mullion-transom systems.

  • Window & Door Manufacturing: Accurate cutting of frame and sash profiles at various angles.

  • Conservatories & Skylights: Precise cuts for airtight and stable aluminium joints.

  • Aluminium System Fabrication: Dimensional notching for connectors and profile adjustments.

  • Metal & Light Construction: Versatile slotting for custom profiles and architectural designs.

Efficiency, Precision, and Industrial Reliability

The EVOSF notching saw for aluminium profiles excels with precise cutting control, powerful motorization, and high process safety.
It enables fast, repeatable work cycles and is perfectly suited for industrial series production as well as customized architectural solutions.

Thanks to its rigid machine frame, automatic clamping, and precision linear motion, the EVOSF delivers consistently accurate and burr-free edges with minimal maintenance and maximum productivity.

Conclusion

The EVOSF notching saw for aluminium profiles is the perfect solution for companies that demand maximum precision and efficiency in façade profile processing.
With its dual cutting units, automatic clamping, and linear guide technology, it delivers top-class results in both slotting and notching applications.

Whether in window, door, or façade manufacturing, the EVOSF guarantees clean, repeatable, and vibration-free cuts with maximum safety and cost efficiency.


EVOMATEC – Machines for Precision Aluminium Profile Processing
Request Technical Consultation: Contact Here
