GLAZING BEAD SAW MACHINE EVOOR

‹ ›

Glazing Bead Saw EVOOR – Precision and Efficiency in Cutting PVC and Plastic Profiles

Perfect cuts for modern window and door systems

Precision, Efficiency, and Durability for PVC and Plastic Profiles

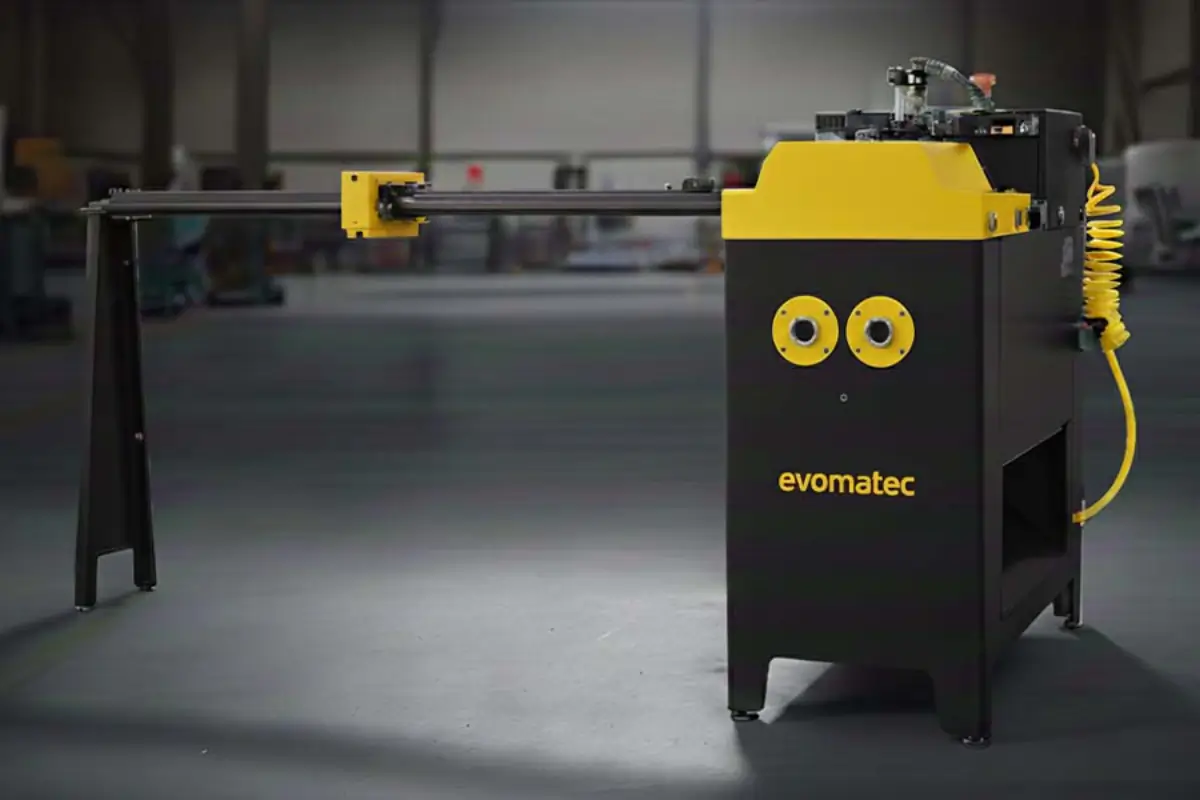

The EVOOR glazing bead saw from Evomatec stands for maximum precision, efficiency, and durability in cutting PVC glazing beads, plastic profiles, and window profiles.
Developed for the demanding needs of the construction industry, this machine combines advanced pneumatic cutting technology, automatic return, and precise length control to deliver industrial-grade accuracy and reliability.

Thanks to its compact yet robust construction, the EVOOR glazing bead saw is the perfect solution for window manufacturers, door producers, and plastic processors who require clean, accurate, and cost-efficient serial production.

Innovative Cutting Technology for PVC and Plastic

The EVOOR glazing bead saw operates with dual saw blades (Ø100 mm and Ø200 mm) to produce precise 45° miter cuts for glazing beads and various profile types.
Its pneumatic cutting system ensures smooth, clean cuts without material deformation – essential for delicate PVC window frames and door profiles.

The automatic return function after each cut significantly increases productivity, enabling continuous, uninterrupted serial production with minimal operator effort.

An integrated conveyor system with precision measuring ensures consistently accurate cuts, while adjustable cutting speed allows optimal adaptation to different PVC and plastic profiles.

Technical Highlights of the Glazing Bead Saw EVOOR

• Saw Blades: Ø100 mm (2 pcs) and Ø200 mm (2 pcs)

• Cutting Angle: 45° on both sides

• Pneumatic Cutting System with Automatic Return

• Adjustable Cutting Speed and Feed Rate

• Automatic Feed Table with Integrated Measuring System

• Operating Pressure: 6–8 bar | Air Consumption: 20 L/min

• Motor Power: 1.1 kW – 1.5 HP at 3000 rpm

• Machine Dimensions: 1020 × 215 × 1110 mm | Weight: 116 kg

Everyday Precision in Glazing Bead Cutting

The EVOOR glazing bead saw ensures precise, burr-free cuts for PVC glazing beads in window frames, sashes, and door systems.
Its vibration-damped structure guarantees consistent cutting quality, even in high-volume production environments.

The integrated measuring system reduces setup times and enhances repeatability – a decisive advantage for manufacturers with strict dimensional accuracy requirements.

Advantages of the Glazing Bead Saw EVOOR

1. Exceptional Cutting Precision
   The 45° miter cutting system ensures perfect transitions between glazing beads. High-quality carbide-tipped saw blades deliver smooth, burr-free surfaces with precise fit accuracy.

2. Maximum Efficiency
   Automatic return and pneumatic clamping drastically shorten cycle times and reduce manual labor – ideal for high-volume industrial production.

3. Long Service Life and Reliability
   The robust construction, CE-compliant safety design, and low-maintenance components ensure long-term performance and minimal downtime.

4. User-Friendly Operation
   The intuitive control panel allows simple operation of all functions. Automatic feeding and pneumatic clamping enable safe, ergonomic, and consistent cutting.

5. Versatility Across Profile Types
   Beyond PVC glazing beads, the EVOOR glazing bead saw can also process plastic profiles, door trims, and window accessory profiles. Optional specialized tooling enables accurate cutting of complex profile geometries.

Typical Applications

Window Manufacturing

Accurate cutting of PVC glazing beads for frames, sashes, and glazing systems.

Door Manufacturing

Precision trimming of sealing and glazing bead profiles for plastic doors.

Plastic Processing

Cutting plastic trims and profiles for interior construction and industrial uses.

Renovation and Retrofitting

Accurate re-cutting and adjustment of existing glazing beads and trims.

The Future of Glazing Bead Cutting in Construction

With the growing demand for energy-efficient window systems and precise profile processing, modern glazing bead saws like the EVOOR are becoming essential.
It integrates seamlessly into automated production lines and supports digital manufacturing in line with Industry 4.0 standards.

Machines like the EVOOR ensure high dimensional accuracy while reducing material waste and production time – key factors for sustainable, efficient manufacturing in the window and door industry.

Conclusion – Efficiency, Precision, and Future-Ready Performance

The Evomatec EVOOR glazing bead saw represents a new generation of industrial cutting machines for PVC and plastic profiles.
It combines precision miter-cutting, automated control, and pneumatic accuracy in a compact, reliable system.

Whether in window production, door fabrication, or plastic profile processing, the EVOOR glazing bead saw delivers lasting improvements in efficiency, precision, and productivity.

Contact our team for a free consultation or customized offer: Click here
