AUTOMATIC ALUMINIUM PROFILE NOTCHING MILLING MACHINE – EVOP III

Hydro-Pneumatic Precision for Accurate End Machining of Aluminium Profiles

Perfect End Machining of Aluminium Profiles – Precision, Efficiency, and Stability

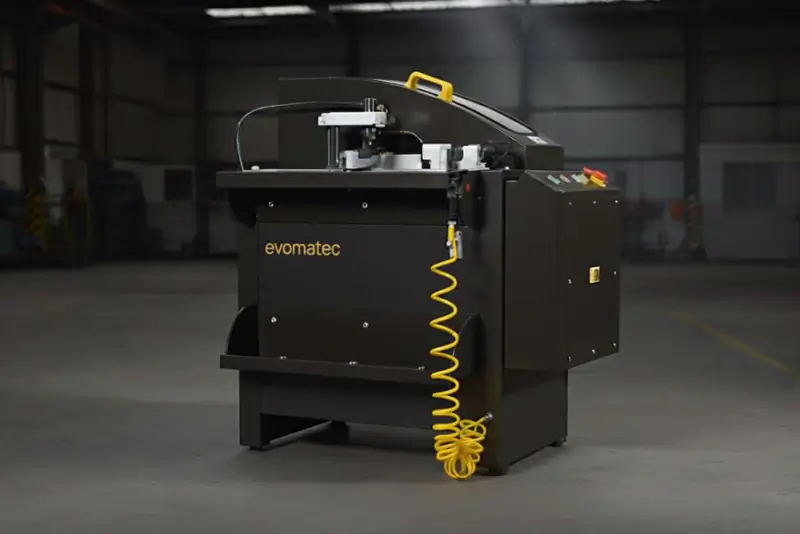

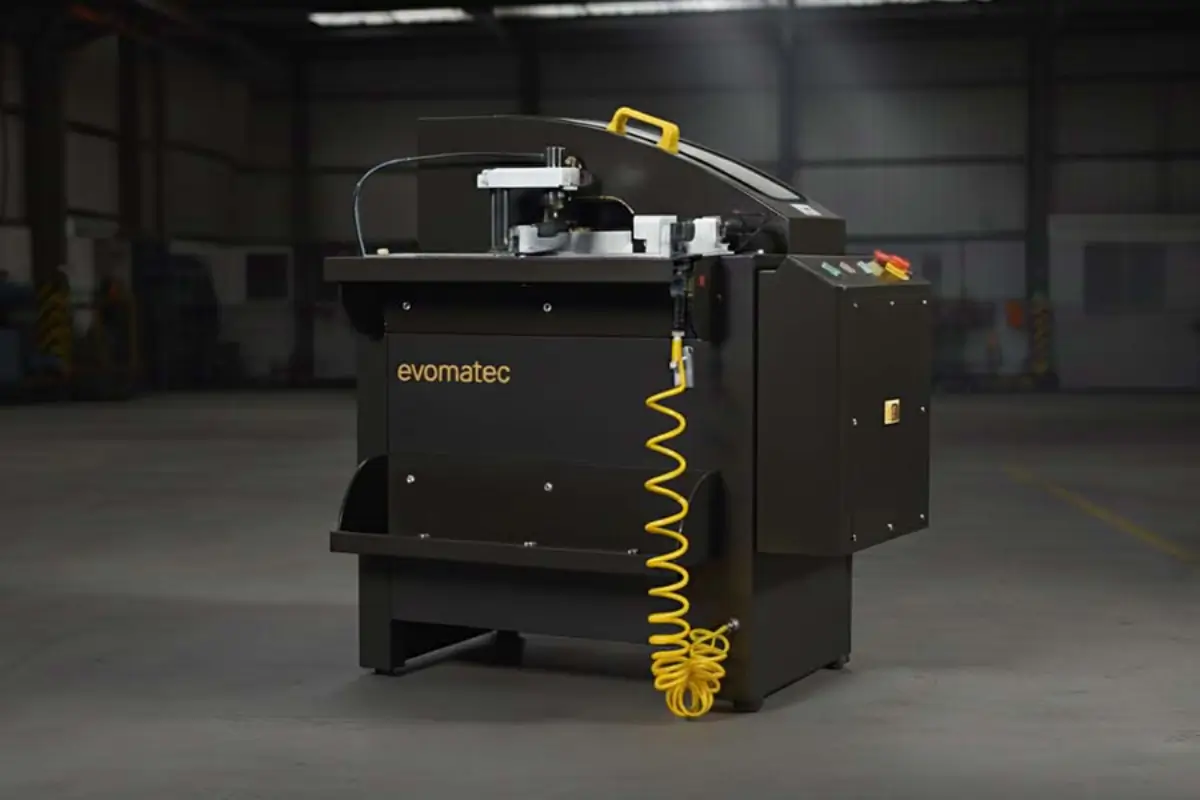

The EVOP III automatic aluminium profile notching milling machine is specifically engineered for precision milling of aluminium profile ends.
Equipped with a hydro-pneumatic feed system, a robust frame, and automatic return control, it delivers maximum dimensional accuracy, repeatability, and surface quality — ideal for industrial use in window, door, and façade manufacturing.

Whether used for frame joints, transoms, or node connections, the EVOP III ensures burr-free, precisely aligned end faces that guarantee accurate assembly and long-term structural stability in aluminium constructions.

Hydro-Pneumatic Precision at the Profile End

The EVOP III notching milling machine operates using a hydro-pneumatic feed system that guides the cutting tool evenly, smoothly, and without vibration through the material.
This technology ensures consistent cutting speeds, optimal power transmission, and a flawless machined surface — even on thick-walled or anodized profiles.

The profile end — the most critical point in frame joining — is machined with absolute precision, producing perfectly aligned transitions between main and cross profiles. This level of accuracy is essential for high-quality aluminium and façade construction.

High-Quality Clamping and Milling System

  • Hydro-pneumatic feed: guarantees smooth, vibration-free cutting movements.

  • Pneumatic vertical and horizontal clamps: hold the workpiece firmly in place, eliminating micro-movements.

  • Automatic return function: shortens cycle times and increases production efficiency.

  • Angle milling with degree scale: enables flexible angle machining for custom profile structures.

  • Protective hood with safety sensor: ensures CE-compliant operation and maximum operator safety.

  • Integrated profile support: allows ergonomic and accurate positioning of the workpiece.

Technical Specifications

  • Motor Power: 1.1 kW (1.5 HP)

  • Speed: 3,000 rpm

  • Voltage: 400 V / 50–60 Hz

  • Cutter Diameter: Ø 140 mm

  • Tool Holder: Ø 30 mm

  • Working Stroke: 210 mm

  • Milling Depth: 90 mm

  • Air Pressure: 6–8 bar

  • Air Consumption: 30 L/min

  • Dimensions: 970 × 670 × 1,140 mm

  • Weight: 84 kg

  • Cooling System: optional

  • CE Certification: standard

Advantages of the EVOP III Automatic Aluminium Profile End Milling Machine

  • High-Precision End Machining: clean, accurate milling at the profile end — perfect fits and stable joints.

  • Hydro-pneumatic control: constant cutting speed for uniform results and extended tool life.

  • Fast operating cycles: automatic return system saves time and boosts efficiency.

  • Adjustable angle milling: precise angle settings using an integrated degree scale — ideal for complex frames.

  • Sturdy and durable structure: low-vibration construction ensures maximum accuracy during continuous operation.

  • Safe and ergonomic: CE-certified safety hood with sensor monitoring and user-friendly design.

  • Energy-efficient and low-maintenance: low air consumption and rugged mechanics reduce operating costs.

Typical Applications

  • Window Production: precise end milling of frame and sash profiles for perfect corner joints.

  • Door Manufacturing: exact machining of frame and threshold profiles.

  • Façade Construction: precision notching of joints and connecting elements.

  • Aluminium Frameworks: accurate end machining for assembly and mounting surfaces.

  • Industrial Profile Processing: consistent quality in serial production and custom aluminium structures.

Industrial-Level Productivity and Process Reliability

The EVOP III combines technological precision with ergonomic efficiency.
Its hydro-pneumatic feed system ensures consistent milling results, while the automatic return and pneumatic clamping mechanisms shorten cycle times.

The outcome: higher productivity, reduced scrap, and perfectly maintained dimensional accuracy with every operation.
With CE-certified safety features and low-maintenance design, the EVOP III is ideal for professional aluminium profile processing in industrial environments.

Conclusion

The EVOP III automatic aluminium profile notching milling machine represents the highest level of precision, efficiency, and safety in end machining.
With its hydro-pneumatic feed system, solid machine base, and adjustable angle milling capability, it provides the perfect combination of performance, reliability, and cost-effectiveness.

Whether in window, door, or façade manufacturing, the EVOP III guarantees consistent precision, robust performance, and long-lasting dependability — the ideal choice for modern production facilities that value durability, accuracy, and industrial-grade quality.


EVOMATEC – Machines for Precision Aluminium Profile Processing
