INSULATING GLASS PRODUCTION LINES & WASHING LINES FOR FLAT GLASS EVOGLAS 3200

‹ ›

Insulating Glass Production Lines and Washing Lines for Flat Glass – EVOMATEC EVOGLAS 3200

Fully Automatic Washing and Press Line for Industrial Insulating Glass Production

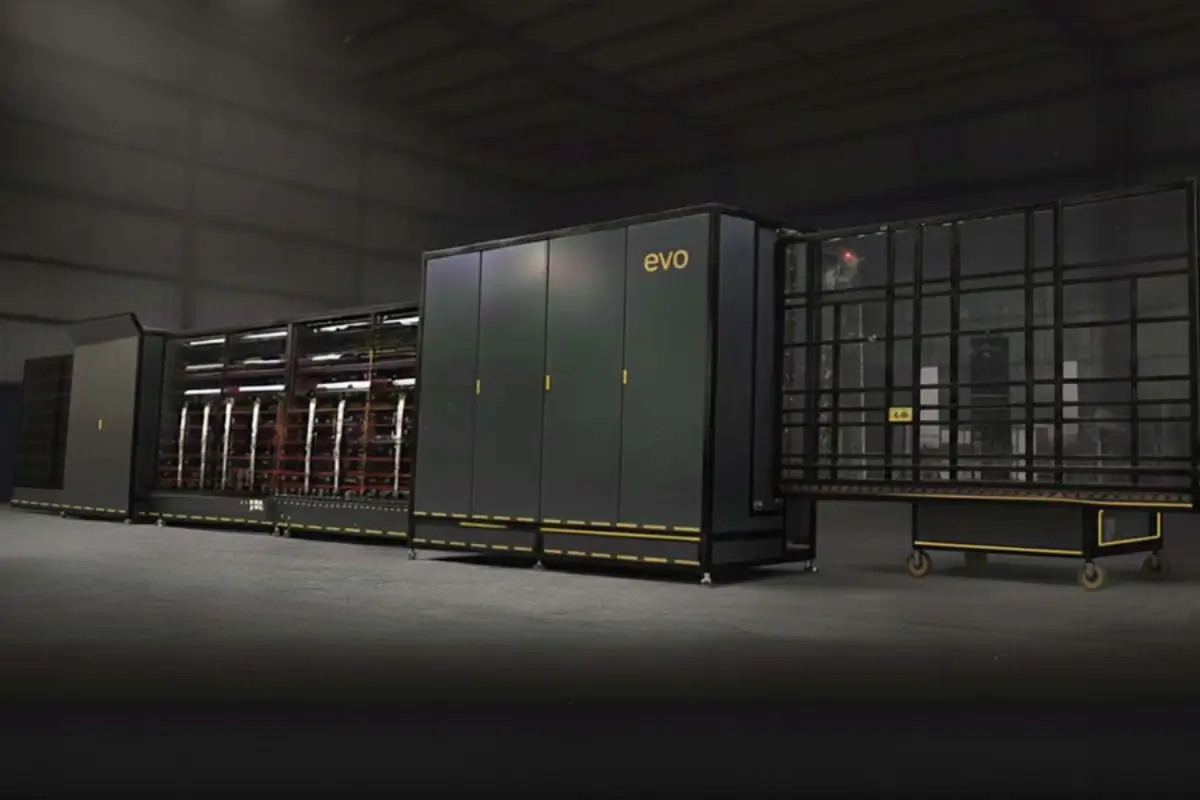

The EVOMATEC EVOGLAS 3200 is a state-of-the-art, fully automatic washing and press line for the industrial production of insulating glass, double glazing, and triple glazing.
Developed for maximum precision, energy efficiency, and high production speed, this system seamlessly combines glass washing, drying, and hydraulic pressing into one continuous production line – ideal for manufacturers of windows, doors, façades, and architectural glass.

With a robust steel frame, intelligent energy-optimized control, and CE-certified industrial components, the EVOGLAS series provides a long-lasting, efficient, and maintenance-friendly solution for modern glass factories worldwide.

Technical Specifications of the EVOGLAS 3200

High-Performance Washing and Pressing Line

• Working widths: 1700 mm – 2500 mm

• Glass size range: min. 400 × 400 mm / max. 2500 × 3210 mm

• Glass thickness per sheet: 3 mm – 10 mm

• Variable speed: 3 – 10 m/min, continuously adjustable

• Power supply: 380 V / 3 phases / 50 Hz

• Total power: ≈ 40 kW

• Machine weight: 3000 – 4500 kg (depending on model)

These specifications make the EVOGLAS 3200 one of the most powerful lines in its class, designed for industrial serial production with continuous process stability and precision.

Key Features and Functional Highlights

Stainless-Steel Structure – Precision Control – Industrial Performance

• AISI 304 stainless steel components: Tanks, nozzles, pipes, and fittings – corrosion-resistant and hygienic

• Low-E washing system with sensor control: Gentle cleaning of coated and sensitive glass surfaces

• Thermostatically controlled warm-water system: Constant temperature for optimal cleaning performance

• 300 L stainless steel tank with overflow protection and fast drainage

• Speed-controlled conveyor system: Perfect synchronization between washing, drying, and pressing

• Central touchscreen control panel (PLC): Intuitive operation of the entire line via user-friendly interface

• STEP-GLASS function: Processes stepped glass up to 100 mm (bottom) / 120 mm (side)

• Anti-vibration brush rollers: Smooth, uniform cleaning without micro-scratches

• Sound-insulated drying unit: Temperature-controlled airflow for streak-free surfaces

• Automatic water refill system with float valve for consistent water level

• Hydraulic press section for precise double, triple, and stepped glass pressing

• Rear air-cushion system ensures stable glass positioning during pressing

• Emergency stop lock fixes the glass securely in case of interruption

• Chain-driven conveyor belts, each section powered by independent motors for synchronized operation

• Optional hydraulic lift and tilt system for ergonomic maintenance

• Modular design up to 24 m total length, ideal for fully automated high-volume production lines

Premium Industrial Components and Electronics

EVOMATEC integrates top-grade European and Turkish components for maximum reliability and longevity:

• Lenze (Germany) – frequency inverters and drive systems

• Schneider Electric (Germany) – control and protection equipment

• Pepperl + Fuchs (Germany) – sensors for precise automation

• Gamak (Türkiye) – industrial motors for 24/7 operation

• Sumak (Türkiye) – high-pressure water pumps with constant performance

All parts are CE-certified and comply with current European machinery and safety directives, ensuring long-term operational security.

Construction and Material Quality

Durability, Stability, and Easy Maintenance

• Stainless steel 304 tanks and piping – chemical and corrosion-resistant

• Heavy-duty machine frame – stable support for large glass sheets

• Low-vibration guidance system – smooth glass transport with consistent cleaning accuracy

• Modular structure – quick inspection and easy access for maintenance

• Service-oriented design – reduced downtime and simplified servicing

Energy Efficiency and Safety

Smart Control for Sustainable Operation

• Automatic temperature regulation – stable wash water at minimal power consumption

• Thermally insulated tanks – prevent energy loss and stabilize operating temperature

• Sound-insulated drying system – quiet operation in industrial environments

• Emergency stop buttons at every conveyor section – maximum operator safety

• Electronic energy management – adaptive motor control reduces electricity usage

• CE-certified safety concept – protection against overheating, overload, and water intrusion

Applications of the EVOGLAS 3200

The EVOGLAS series covers a wide range of industrial glass production processes:

• Insulating glass production (double and triple glazing)

• Architectural and façade glass manufacturing

• Window and door production (aluminum / PVC)

• Laminated and safety glass processing

• Glass finishing and furniture glass fabrication

• Integration into fully automated production lines

Thanks to its modular system, the EVOGLAS 3200 can be perfectly tailored to individual production requirements.

Advantages of the EVOMATEC EVOGLAS Series

1. Fully automated three-phase process – washing, drying, and pressing in one continuous line

2. High production speed – up to 10 m/min with constant quality assurance

3. Energy-optimized control technology – maximum output at minimum operating cost

4. Robust stainless-steel construction – reliable, durable, and easy to maintain

5. Low-noise operation – air-cushioned and sound-insulated

6. Suitable for Low-E, stepped, and specialty glass

7. CE-certified for industrial safety compliance

Conclusion

The EVOMATEC EVOGLAS 3200 stands for German engineering excellence, industrial reliability, and maximum process efficiency in modern glass production.
By combining cutting-edge automation, robust mechanics, and smart control systems, it ensures peak productivity, low maintenance, and outstanding glass quality.

Whether in insulating glass mass production, façade fabrication, or custom architectural applications, the EVOGLAS series delivers a powerful, energy-efficient, and future-ready solution for the global glass industry.

EVOMATEC EVOGLAS – Technology for Precision and Sustainability.
