MITER SAW FOR PLASTIC PROFILES – EVOM II 500
Manual precision, hydro-pneumatic cutting technology, and industrial performance for PVC and plastic profiles
Industrial precision for the highest demands

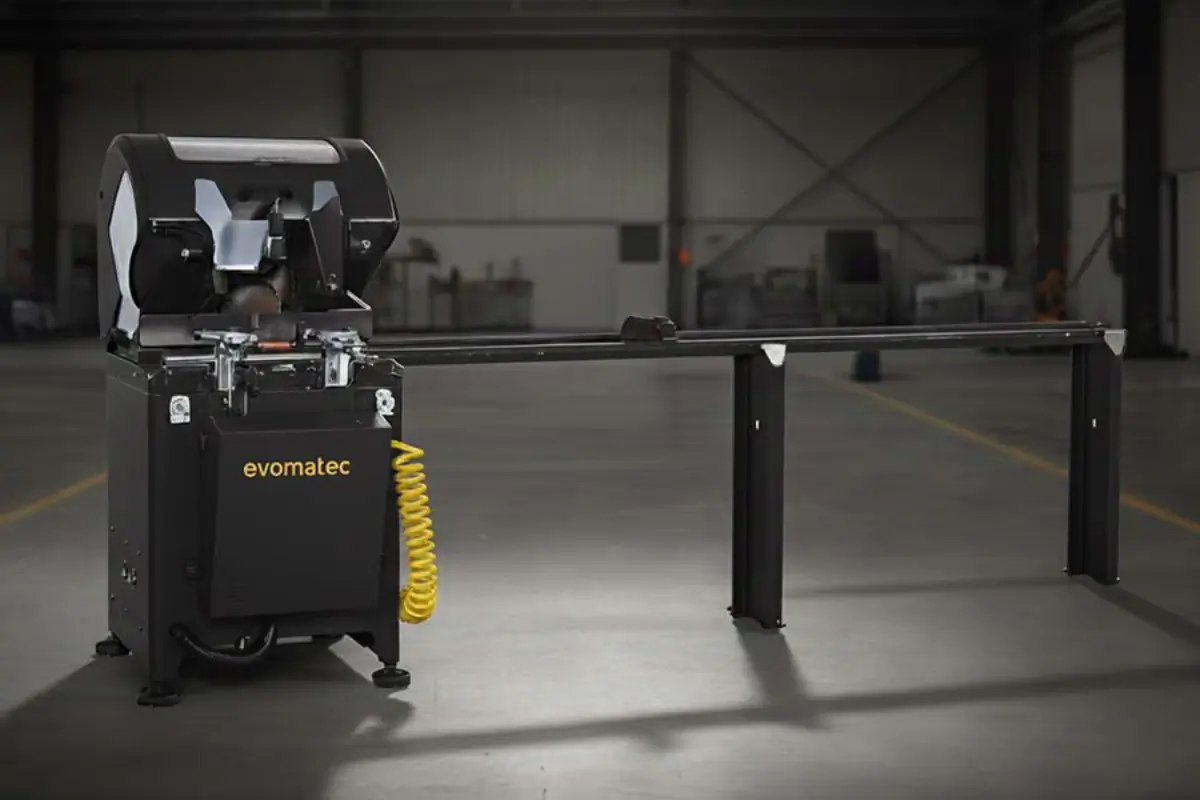

The EVOM II 500 is a professional miter saw for plastic and PVC profiles, designed for precise and clean cutting in both series and custom production.
It combines hydro-pneumatic feed technology, a powerful 500 mm carbide-tipped blade, and a robust machine structure to ensure accurate, burr-free cuts with maximum stability and energy efficiency.
Whether in window, door, or façade production, the EVOM II 500 stands for repeat accuracy, process reliability, and long-term industrial quality.
Precise miter cuts through hydro-pneumatic feed
The advanced hydro-pneumatic feed system of the EVOM II 500 ensures smooth cutting movements with consistent force transmission.
The cutting speed can be finely adjusted, allowing gentle material processing with no melting marks or deformations.
The 500 mm carbide-tipped blade operates with exceptional stability and minimal vibration, even when cutting thick or large-format PVC profiles.
Thanks to the precise manual angle adjustment from –67.5° to +67.5°, with fixed detents at 0°, 15°, 22.5°, 30°, 45°, and 67.5°, miters for frames, casings, and joint connections can be executed accurately and repeatably.
The result: clean, dimensionally consistent, burr-free cutting surfaces — ideal for visible plastic frames and industrial-grade connections.
Manual adjustment for maximum control
Unlike fully automatic systems, the manual angle adjustment of the EVOM II 500 provides full control and flexibility.
The operator can quickly and precisely set the cutting angle without tools — ideal for varying profile geometries or specific production requirements.
This manual control not only enhances operational safety but also extends the overall lifespan of the mechanism.
With a clear scale display and stable locking system, the selected angle remains perfectly fixed — even during frequent angle changes.
Safety and energy efficiency in industrial operation
The EVOM II 500 is equipped with an enclosed safety cover featuring sensor control, which allows operation only when the hood is fully closed.
This system ensures maximum operator safety in compliance with European CE standards.
Pneumatic vertical and horizontal clamps hold the workpiece firmly on the worktable, preventing any movement or vibration during cutting.
The integrated cooling system reduces friction, protects the material from overheating, and ensures smooth, melt-free edges — ideal for thermoplastic materials.
With an operating air pressure of 6–8 bar and a low consumption of only 38 L/min, the machine delivers quiet, energy-efficient, and low-maintenance performance.
Technical specifications of the EVOM II 500
| Feature | Specification |
|---|---|
| Saw blade diameter | Ø 500 mm (carbide, specifically for plastic and PVC) |
| Rotation speed | 2,347 rpm |
| Motor power | 4 kW / 5 HP |
| Voltage / Frequency | 400 V / 50 Hz |
| Cutting angle | –67.5° to +67.5°, fixed at 0°, 15°, 22.5°, 30°, 45°, 67.5° |
| Feed system | Hydro-pneumatic, speed adjustable |
| Clamping system | Pneumatic, vertical + horizontal |
| Cooling system | Integrated, for burr-free cuts |
| Air pressure | 6–8 bar |
| Air consumption | 38 L/min |
| Machine dimensions (L × W × H) | 3,910 × 1,160 × 1,480 mm |
| Weight | 278 kg |
Fields of application
Window manufacturing
Precise miter cuts on PVC and plastic frames for perfect corner joints.
Door manufacturing
Accurate cuts for plastic casings, thresholds, and profile joints with superior dimensional accuracy.
Façade construction
Smooth and clean cuts for plastic panels, cladding strips, and frame components.
Plastics industry
Batch production and cutting of technical plastic profiles for machinery and industrial assemblies.
Workshops and craft businesses
Ideal for manufacturers who value manual control, precision, and efficiency in their operations.
Advantages of the EVOM II 500
-
Hydro-pneumatic precision technology
Vibration-free, consistent cutting motion for perfect, smooth surfaces. -
Manual angle adjustment
Simple, precise angle setting for flexible cutting geometries — no automation required. -
Burr-free cut quality
The cooling system prevents melting and delivers clean edges without post-processing. -
Secure workpiece clamping
Dual pneumatic clamping ensures stable profiles — no slippage, no dimensional deviation. -
Energy efficiency and low maintenance
Durable components and low air consumption reduce operating costs. -
CE-certified safety
Sensor-controlled safety hood and emergency-stop system ensure maximum workplace safety. -
Industrial durability
A vibration-free cast frame and powerful motor provide consistent precision in continuous operation.
Quality and reliability by Evomatec
Each EVOM II 500 is manufactured and individually inspected according to strict CE standards.
Evomatec engineers guarantee maximum accuracy, safety, and durability — from the drive assembly to the clamping system.
Evomatec stands for German engineering excellence, energy-efficient technology, and industrial precision in plastic profile processing.
Conclusion – Precision, safety, and control in plastic processing
The EVOM II 500 miter saw for plastic profiles delivers manual control, industrial performance, and exceptional cutting precision.
With its hydro-pneumatic feed system, accurate angle adjustment, and robust construction, it ensures consistently clean and repeatable results with maximum safety.
Whether in window, door, or façade manufacturing, this machine is the ideal choice for businesses that value process stability, precision, and cost efficiency.
