AUTOMATIC GLASS CUTTING LINE EVOGLAS QUADRO

Automatic Glass Cutting Line EVOGLAS QUADRO – Fully Automatic CNC Technology for Industrial Flat Glass Processing

Maximum Precision, Speed and Reliability in Glass Production

The Automatic Glass Cutting Line EVOGLAS QUADRO by Evomatec is a fully automated, precision-controlled CNC system designed for industrial series production of flat glass.
This high-performance line combines intelligent CNC control, robust mechanical design and energy-efficient hydraulic systems in a modular, low-maintenance configuration — engineered for continuous multi-shift operation in architectural glass, insulating glass, façade glass and furniture glass manufacturing.

Thanks to advanced control technology, high-torque drives and ergonomic design, the EVOGLAS QUADRO guarantees maximum precision, speed and operational safety — offering the perfect balance between efficiency, quality and durability.

Technical Features of EVOGLAS QUADRO

Intelligent CNC Control and Precision Mechanics

Air cushion system: Enables effortless movement, positioning and separation of large glass sheets
Adjustable cutting speed and pressure: Automatically adapts to glass thickness and material
Precision gear system: Ensures exact motion transmission with zero backlash
Automatic glass breaking: Pneumatically controlled for clean, accurate edges
Two hydraulic cylinders: Provide uniform lifting movement for precise cutting accuracy
High-pressure hydraulic valve: Protects the system from pressure surges
Speed regulation: Hydraulic and mechanical for smooth, controlled operation
Automatic speed reduction: At motion endpoints for maximum safety

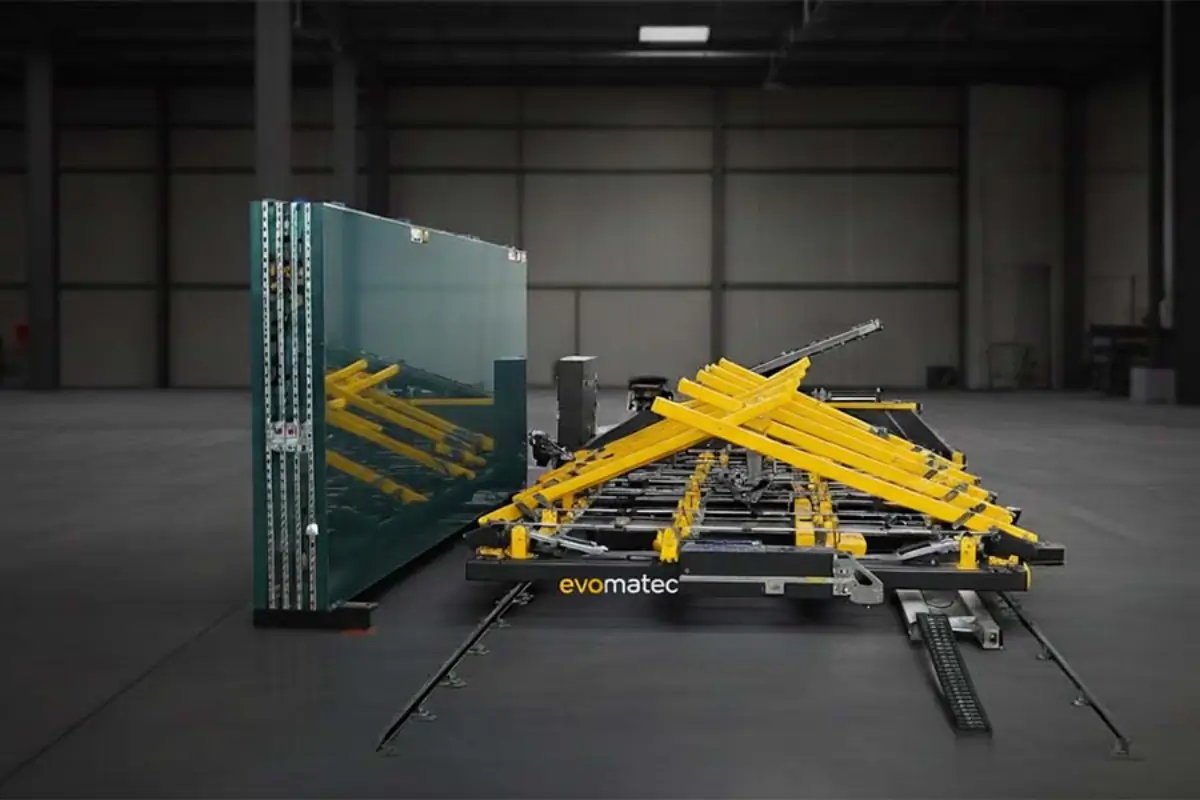

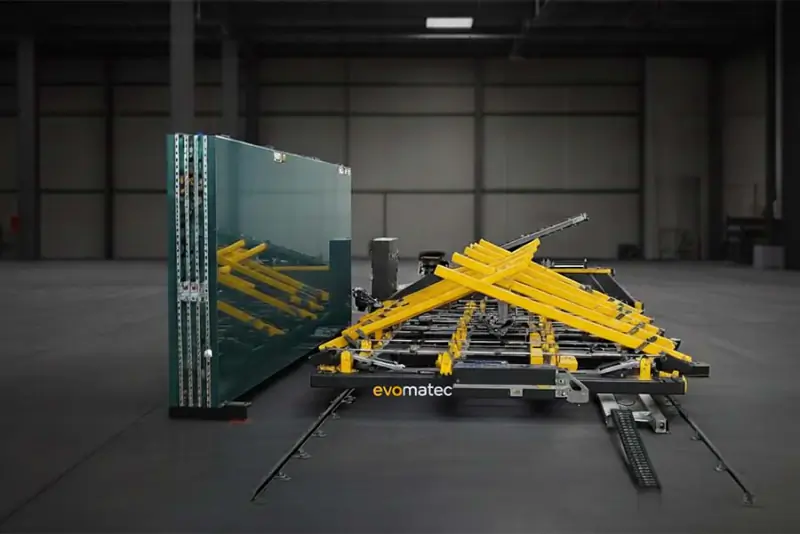

Integrated tilting and lifting arm: Ergonomic loading of heavy glass sheets
Spring-loaded suction system: Automatically corrects glass alignment during handling
Homogeneous airflow: Across the entire table for stable cutting conditions
Automatic parking system: Safely locks machine components during idle periods
Optical and acoustic warning system: Immediate fault indication during operation
Encrypted operator interface: Prevents unauthorized access and misuse
Automatic suction power control: Adjusts to glass size and weight
Powder-coated finish: Corrosion- and wear-resistant industrial surface
Electrical system compliant with CE standards: Meets all European safety regulations
Industrial control computer: Internet-enabled for remote maintenance and diagnostics
Data interfaces: USB, CD and Ethernet connections for universal file transfer

Performance Specifications

Glass thickness: 3 – 19 mm
Maximum glass size EVOGLAS QUADRO 3660: 2550 × 3660 mm
Maximum glass size EVOGLAS QUADRO 6000: 3210 × 6000 mm
Cutting speed: Up to 120 m/min
Power consumption: 17 – 24 kW (depending on model)
Total weight: 5800 kg (Model 3660) – 8500 kg (Model 6000)
Power supply: 380 V / 3-phase / 50 Hz

These specifications underline the industrial strength, precision and efficiency of the EVOGLAS QUADRO series — developed for high throughput and long-term durability in continuous production environments.

Software and Control – EVOSOFT G-CUT System

The EVOGLAS QUADRO features the EVOSOFT G-CUT control platform — an intelligent CNC software suite developed by Evomatec that monitors and optimizes all cutting, positioning and breaking operations in real time.

Software Highlights

Digital axis control: Ensures precise positioning across all motion axes
Automatic cutting optimization (nesting): Minimizes glass waste and maximizes material use
Online monitoring and remote maintenance: Internet-based diagnostics and updates
Integrated data management: Stores and reuses cutting layouts and production parameters
CAD import functionality: Compatible with AutoCAD (DXF) and Optima cutting software
User-friendly touchscreen interface: Intuitive navigation with real-time visualization
Multi-user management: Password-protected access for operators and technicians

Advantages of the EVOGLAS QUADRO Series

Unmatched Cutting Precision

The digital CNC control combined with the fine-tuned hydraulic system delivers repeatable, smooth and clean cuts — even on large-format glass sheets.

Maximum Productivity

Fully automated cutting, breaking and handling processes ensure short cycle times and optimal performance in multi-shift operations.

Efficient Resource Utilization

The intelligent nesting function significantly reduces material waste and improves production economy.

Industrial-Grade Durability

A heavy-duty steel frame, wear-resistant components and premium hydraulics guarantee longevity and maintenance-free operation under continuous industrial conditions.

Safety and Ergonomics

The system is CE-certified and equipped with automatic warning systems, protected interfaces and ergonomic control panels — ensuring safe and comfortable operation.

Application Areas

The Automatic Glass Cutting Line EVOGLAS QUADRO is ideal for:

Architectural and façade glass production
Insulating and safety glass manufacturing
Furniture and interior glass fabrication
Mirror, decorative and design glass processing
Automated high-volume flat-glass production lines

Whether in continuous production or mass fabrication, the EVOGLAS QUADRO delivers precise cutting, high efficiency and long-term process stability.

Why Choose EVOMATEC

Evomatec stands for German engineering, technological precision, and industrial reliability.
With the EVOGLAS QUADRO, the company sets new standards in automated glass processing — combining intelligent CNC control, precise hydraulics, modular integration, and CE-certified safety.

Evomatec machines are used worldwide in glass factories, window production plants, insulating-glass facilities and façade fabrication, renowned for their high precision, reliability and easy integration into existing production systems.

Evomatec – Engineering for Precision.
