MOBILE END MILLING MACHINE FOR ALUMINIUM PROFILES EVOMILL 100

MOBILE END MILLING MACHINE FOR ALUMINIUM PROFILES – EVOMILL 100

Precision in Profile End Milling

Professional Solution for High-Precision Aluminium Profile Processing

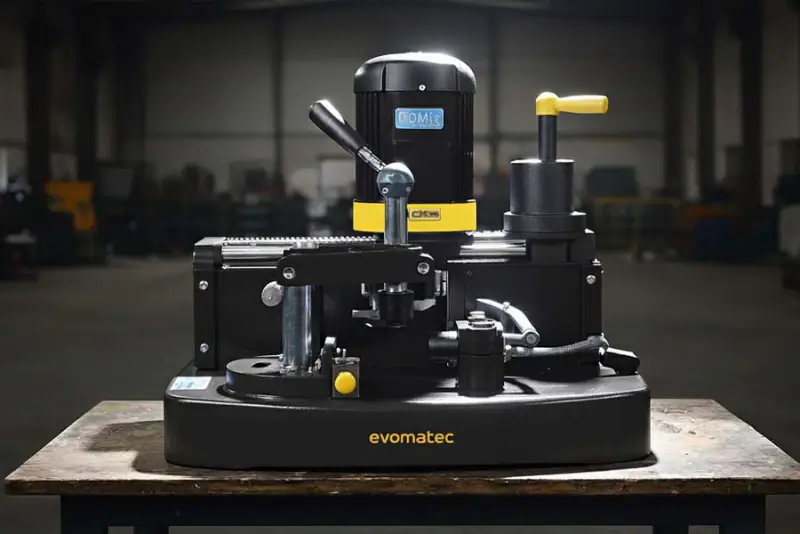

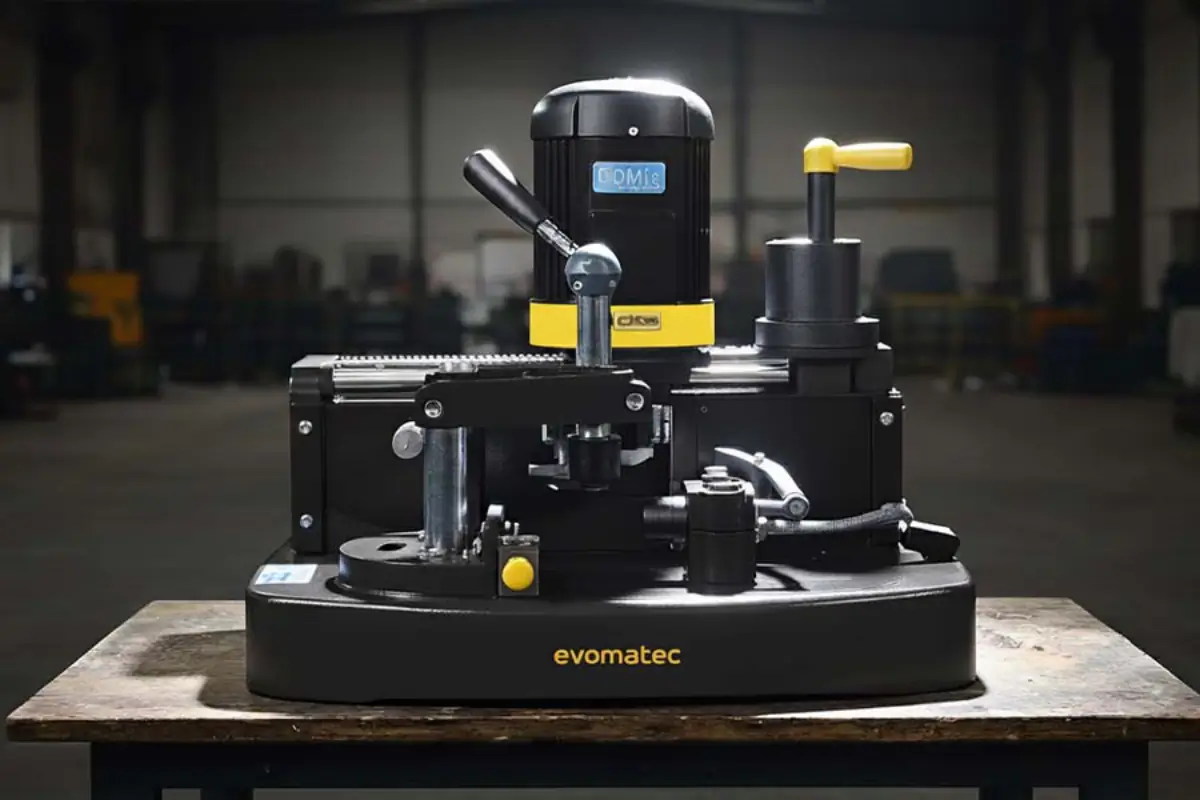

The EVOMILL 100 is a mobile end milling machine engineered for the precise machining of aluminium profile ends.
It enables millimetre-accurate processing of profile faces, ensuring that cross and frame profiles connect seamlessly with main profiles.
This makes it the ideal machine for frame joints, special profiles, and precision surfaces that demand the highest level of accuracy.

With its compact construction, high-performance motor, and robust clamping system, the EVOMILL 100 ensures consistent precision while requiring minimal workspace.
It is designed for both stationary workshop use and mobile on-site applications — wherever precision, efficiency, and reliability are essential in professional aluminium fabrication.

Technical Features

Power and Performance

Motor Power: 1.1 kW / 1.5 HP
Spindle Speed: 3,000 rpm
Voltage: 230 V / 50–60 Hz / 4.8 A

Milling Specifications

Milling Head Diameter: 140 mm
Tool Holder: Ø 30 mm
Maximum Milling Depth: 70 mm
Milling Width: 125 mm

Machine Design and Structure

Dimensions: 570 × 365 × 440 mm
Weight: 26 kg – compact, lightweight, and stable
Clamping System: vertical + horizontal for vibration-free milling
Housing: robust, CE-certified, and low-maintenance
Optional Equipment: cutter sets, machine stand, and three-phase drive for extended use

Typical Applications

The EVOMILL 100 is a universal solution for precision milling of aluminium profiles — ideal for end machining, joint preparation, and custom milling operations.

Frame Joint Milling

Accurately machines the end faces of cross profiles for perfect integration with main profiles.

Removing Internal Chambers

Removes inner ribs and chambers to achieve clean, tight, and precise connections.

Angle Milling Operations

Performs milling at 45°, 67.5°, 90°, or custom angles for stable and form-fitting corner joints.

Preparation for Screw or Plug Connections

Creates flat or stepped surfaces for the installation of fittings, hinges, or corner connectors.

Special Profile Machining

Ideal for façade and metal construction projects where CNC machining centers are too large or inflexible.

Product Advantages

Precision and Efficiency

Highest accuracy in aluminium profile and end milling
Vibration-damped structure for flawless surface finishes

Compact and User-Friendly Design

Space-saving and mobile — perfect for workshops and construction sites
Ergonomic control for safe and effortless handling

Durability and Energy Efficiency

Long service life and minimal maintenance
Energy-efficient and quiet in continuous operation
CE-certified safety in compliance with European standards
Expandable with cutter sets, machine stand, and three-phase drive system

Areas of Application

The EVOMILL 100 is the ideal solution for precise end milling of aluminium profiles across all areas of modern metal and window construction.
Typical applications include:

Aluminium window and door production
Façade and metal construction
Frame and profile joining
Small-series and custom production
On-site assembly and finishing operations

Wherever clean profile ends, precise fits, and durable joints are required, the EVOMILL 100 guarantees repeatable, industry-grade results.

Conclusion

The EVOMILL 100 combines performance, precision, and mobility in one compact and durable unit.
It is the perfect choice for professionals seeking accurate profile end machining and premium-quality connections — efficient, safe, and reliable.

EVOMATEC – Precision Machinery for Aluminium Profile Processing
