CNC MACHINING CENTER EVOG5X

CNC Machining Center EVOG5X – Precision, Efficiency, and Future Technology for PVC and Plastic Profiles

High-End CNC Technology for Modern Profile Processing

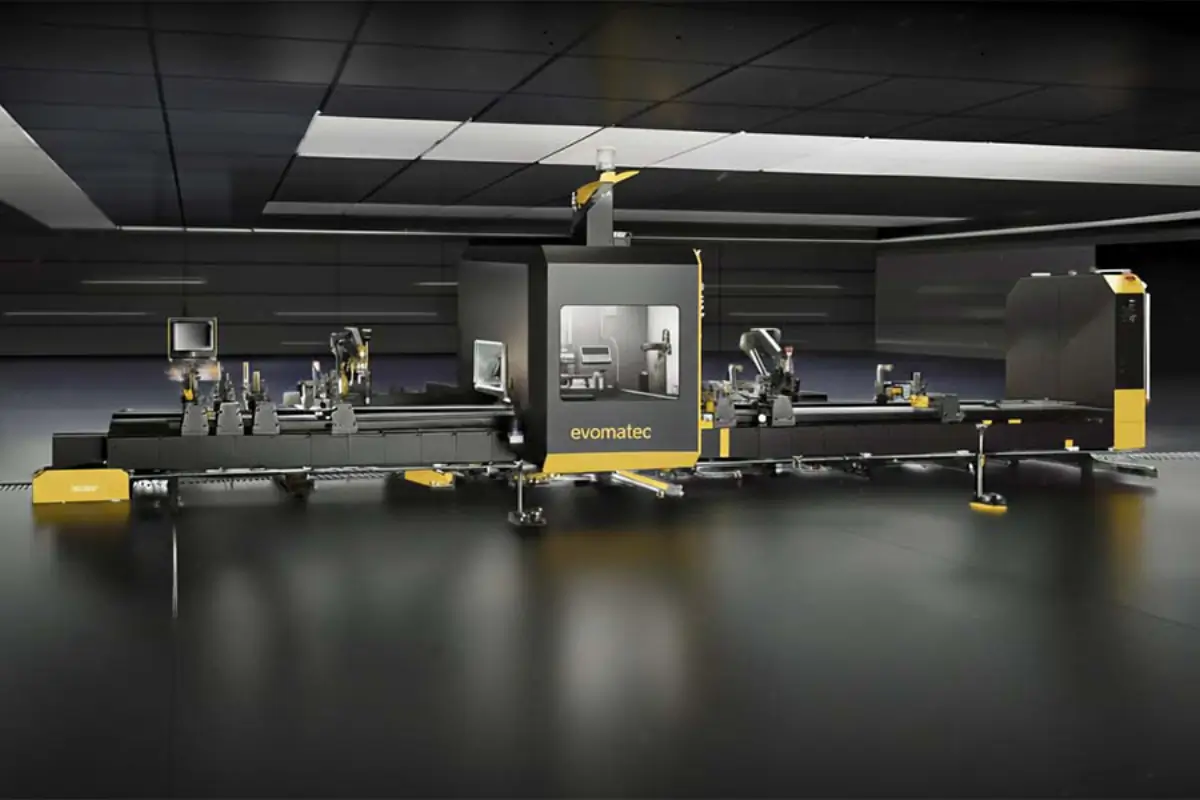

The CNC Machining Center EVOG5X by Evomatec represents the newest generation of industrial CNC technology for machining PVC profiles, plastic frames, and window and door systems.
With its 5-axis CNC control, servo-driven motion axes, and high-performance spindles, the system provides outstanding precision, efficiency, and flexibility in serial production of plastic windows and doors.

The CNC Machining Center for Plastic Profiles was engineered to integrate all machining steps into one single process — sawing, milling, drilling, engraving, marking, and edge finishing are performed automatically and with superior accuracy.
This makes the EVOG5X CNC Machining Center PVC the ideal solution for companies that focus on maximum quality, productivity, and technological innovation.

Technical Excellence in the Plastic Profile Machining Center

The 5-axis CNC technology of the EVOG5X allows full-surface processing of PVC and plastic profiles without reclamping.
The C-axis rotates 360°, while the A-axis offers tilt motions from -90° to +90° — perfect for complex machining of window frames, door profiles, and sashes.

The Plastic Profile Machining Center combines powerful servo drives with a highly stable machine frame.
Each axis is digitally controlled, ensuring smooth transitions, vibration-free movement, and exceptional repeat accuracy — essential for perfect fitting in PVC profile window and door manufacturing.

Design and Structure – Efficiency Through Precision

The CNC Machining Center for PVC Profiles is built on a robust, vibration-resistant frame.
A liquid-cooled high-performance spindle motor ensures consistent power during long machining cycles, while an automatic tool changer with 20+1 positions minimizes setup times.

Technical Specifications

Machining range: X = 8000 mm, Y = 515 mm, Z = 370 mm
A-axis: -90° to +90°
C-axis: 0° to 360°
Spindle power: 11 kW, up to 24,000 rpm
Tool holder: HSK F63, automatic change system
Tool capacity: 20+1 positions (umbrella magazine)
Positioning speed: up to 84 m/min
Control system: industrial PC with 15″ touchscreen
Power supply: 400 V / 50–60 Hz, air pressure 6–8 bar

These values demonstrate the industrial precision and high performance of the CNC Machining Center for Window Production.

Automation and Functionality

The Automatic CNC Machining Center for Plastic Profiles performs all machining operations fully automatically.
The intelligent servo-controlled clamping system detects, secures, and positions profiles independently.
By combining CAM software, digital control, and servo technology, the system operates efficiently, reliably, and with minimal maintenance — ideal for serial PVC window and door production.

The integrated suction and cooling system reduces heat buildup and extends tool life, while the automatic lubrication system ensures long-term precision.

Advantages of the EVOG5X CNC Machining Center

1. Precision at the Highest Level

With 5-axis simultaneous control, even complex geometries are machined with millimeter accuracy.
PVC window and door frames are precisely milled, drilled, and cut — including drainage and fastening channels.
The CNC Profile Machining Center guarantees perfect dimensional consistency for every repetition.

2. Maximum Productivity and Efficiency

The automatic tool changer minimizes downtime.
Parallel motion of all axes ensures the highest machining speeds — a major advantage in industrial-scale plastic profile production.

3. Flexibility for Different Profile Types

The PVC Profile Machining Center automatically adapts to different profile shapes.
Whether sash frames, casements, or door frames — the machine identifies each profile and selects the correct machining program.

4. Energy Efficiency and Durability

Servo-controlled drives activate power only when necessary.
This reduces energy consumption by up to 30% and extends the lifespan of all components — a core advantage of every CNC Machining Center for Plastic Profiles.

5. Safety and User Comfort

The system is CE-certified and features a fully enclosed safety housing, sensor monitoring, and emergency stop functions.
Operation is intuitive via a 15″ touchscreen display — also accessible remotely for smart control.

Software Integration and Industry 4.0 Connectivity

The Plastic Profile CNC Machining Center uses the CAM software Camquix for automated process control and data transfer.
Programs can be imported, edited, and optimized directly from CAD drawings.
Thanks to Ethernet and USB connections, seamless integration into digital production networks is possible — including real-time monitoring and maintenance diagnostics.

With optional CAD/CAM integration (CadXtract), 3D models can automatically be converted into CNC programs — ideal for customized PVC profile machining applications.

Application Areas of the EVOG5X

PVC Window Production: precise machining of frames, sashes, and glazing bead profiles
Door Manufacturing: CNC cutting and milling of PVC and plastic door frames
Façade and Conservatory Construction: processing of structural PVC profiles
Industrial Profiles: production of technical plastic components
Custom Production: tailored CNC programs for specialized requirements

The Door Manufacturing Machining Center for Plastic Profiles thus serves as a universal solution for all aspects of modern plastic profile production.

Future-Oriented Manufacturing – Smart Factory and Digitalization

The CNC Machining Center for Plastic Profiles is fully Industry 4.0-compatible.
Through cloud connectivity and intelligent sensor data analysis, the entire manufacturing process can be monitored, optimized, and integrated into existing production lines.
This makes the Automatic Machining Center for Plastic Profiles a key component of a digitally connected Smart Factory.

Conclusion – Precision, Performance, and Future Reliability

The CNC Machining Center EVOG5X represents the perfect fusion of technology, productivity, and reliability.
With its 5-axis CNC control, automatic tool changer, and digital process integration, it offers a complete solution for PVC and plastic profile machining.

Whether in window production, door manufacturing, or industrial serial machining — the CNC Machining Center for Plastic Profiles by Evomatec ensures maximum precision, efficiency, and competitiveness.
