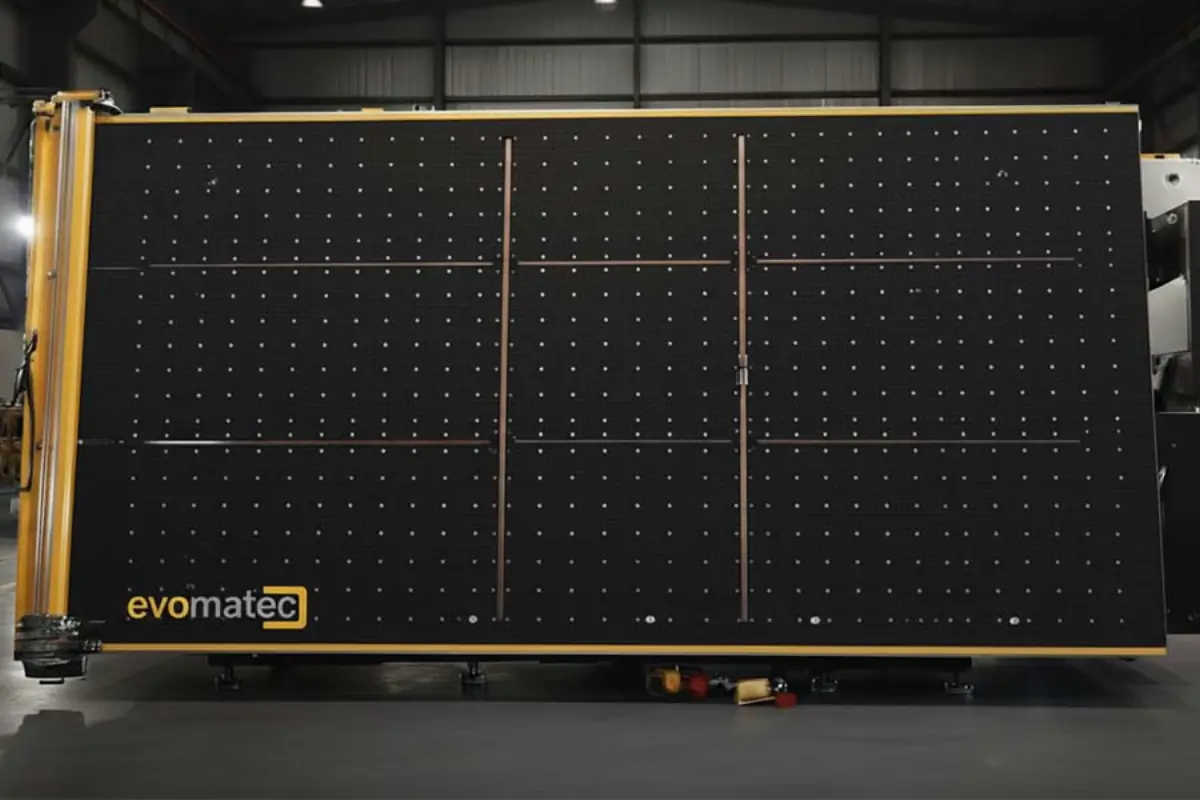

JUMBO CNC GLASS CUTTING TABLE EVOGLAS III

Jumbo CNC Glass Cutting Table EVOGLAS III – Precision and Performance for Large-Format Flat Glass Processing

Industrial High Technology for Jumbo Glass Formats

The Jumbo CNC Glass Cutting Table EVOGLAS III by Evomatec is a state-of-the-art, fully automatic CNC system designed for the precise processing of large-format flat glass sheets.
This high-performance unit is engineered specifically for jumbo glass formats up to 3210 × 6000 mm, making it the ideal solution for architectural, façade, window, and insulating glass production.

Equipped with the latest CNC technology, an intelligent air-cushion system, and an exceptionally robust machine frame, the EVOGLAS III ensures maximum cutting precision, process reliability, and productivity in continuous industrial operation.
It is designed for manufacturers demanding peak efficiency, precision, and reliability — with minimal maintenance requirements.

Technical Features of EVOGLAS III

Maximum Precision Through Advanced CNC and Hydraulic Control

Cutting range: 3 – 19 mm glass thickness
Maximum glass size: up to 3210 × 6000 mm
Cutting speed: up to 120 m/min
Air cushion system: Enables smooth, damage-free movement of jumbo glass sheets
Adjustable cutting speed and pressure: Adaptable to glass thickness and coating type
Two hydraulic cylinders: Provide consistent and precise lifting and cutting motion
Pneumatic and mechanical speed control: Guarantees constant cut quality even with long panels
Helical rack & pinion drive system: Ensures vibration-free movement and repeatable accuracy
Automatic overpressure safety system: Protects components and stabilizes process flow
Automatic pressure adjustment: Dynamically adapts to glass thickness
Reinforced machine frame: Built for heavy-duty industrial use and continuous operation
Low-E stripping system: With 25 mm grinding wheel for coated glass
Support for up to 250 glass shapes: Compatible with AutoCAD (DXF) files
Flat, shape, and angle cutting: Suitable for a wide range of applications
USB and Ethernet data transfer: Enables fast file exchange and production network integration
Remote access via Internet: For maintenance, diagnostics, and software updates
EVOSOFT control system: Featuring modern G-CUT interface for intuitive operation
Automatic nesting optimization: Minimizes glass waste and maximizes efficiency
Special coated cutting carpet: Ensures long service life and precise glass handling
Powder-coated surface: Provides electrostatic corrosion protection
Premium electronics: Siemens, Schneider Electric, Lenze, Omron
CE compliant: Meets all European safety regulations

Software and Control – EVOSOFT G-CUT

The core of the EVOGLAS III is the EVOSOFT G-CUT CNC control system, developed by Evomatec for maximum precision, automation, and ease of use.

Key Software Functions

Intelligent nesting function: Automatically optimizes cutting layouts to minimize glass waste
DXF import (AutoCAD compatible): For precise form and contour cutting
Optima cutting program: Enables complex curve and design cuts
Touchscreen control: User-friendly interface with visual process display
Online remote maintenance: Real-time diagnostics and software support via the Internet
Production data management: Stores cutting layouts and order data
Multi-user operation: Password-protected access for different user levels
Shape library: Stores up to 250 glass shapes for fast selection
Automatic speed adjustment: Based on material, shape, and glass type

Optional Equipment

The EVOGLAS III can be customized to meet complex production requirements:

200 mm disc for Low-E stripping – ideal for coated glass
Optima cutting optimization program – for maximum material efficiency
Vinyl cutting mode – for film or laminated glass
Shape scanner (digital contour detection) – for free-form glass cutting
Automatic tool changer – reduces setup time for varied tasks
Labeling system – automatic labeling of cut glass parts
Automatic breaking table (Auto Transfer System) – integration into fully automated production lines

Advantages of the EVOGLAS III Jumbo Series

1. Jumbo Format Capability

Designed for large-format glass sheets up to 6000 mm in length – perfect for architectural and façade applications.

2. Ultimate Precision

Servo-driven axes, digital pressure management, and CNC motion control ensure burr-free, highly accurate cuts.

3. Maximum Efficiency

Automatic nesting, online control, and rapid data transfer minimize production times and optimize material use.

4. Maintenance-Free Continuous Operation

Durable industrial components, corrosion-protected surfaces, and an intelligent hydraulic system guarantee long-term stability in multi-shift production.

5. Seamless Integration

The EVOGLAS III can be easily integrated into existing Evomatec production lines, including automatic loading tables, breaking tables, and washing systems.

Application Areas

The Jumbo CNC Glass Cutting Table EVOGLAS III is designed for demanding industrial applications in:

Architectural and façade glass production
Flat and insulating glass manufacturing
Window and door production with large glass surfaces
Furniture and interior glass fabrication
Series and custom jumbo sheet production

Thanks to its precision, stability, and modular design, the EVOGLAS III is the perfect solution for any production environment where quality, efficiency, and automation are essential.

Why Choose EVOMATEC

Evomatec stands for German engineering excellence, industrial precision, and sustainable manufacturing technology.
With the EVOGLAS III Jumbo Series, the company sets new standards in automated glass processing — through robust construction, intelligent control, and superior process stability.

Each Evomatec machine is developed under strict quality standards, CE-certified, and used worldwide in leading glass factories, façade producers, and insulating glass plants.

Evomatec – Engineering for Precision.

Request your personal consultation now: Click Here
