MOBILE COPY ROUTER FOR ALUMINIUM PROFILES EVOCOPY 100

MOBILE COPY ROUTER FOR ALUMINIUM PROFILES – EVOCOPY 100

Precision Slot, Handle, and Fitting Milling for the Highest Industrial Standards

Compact, Powerful, and Precise Aluminium Machining

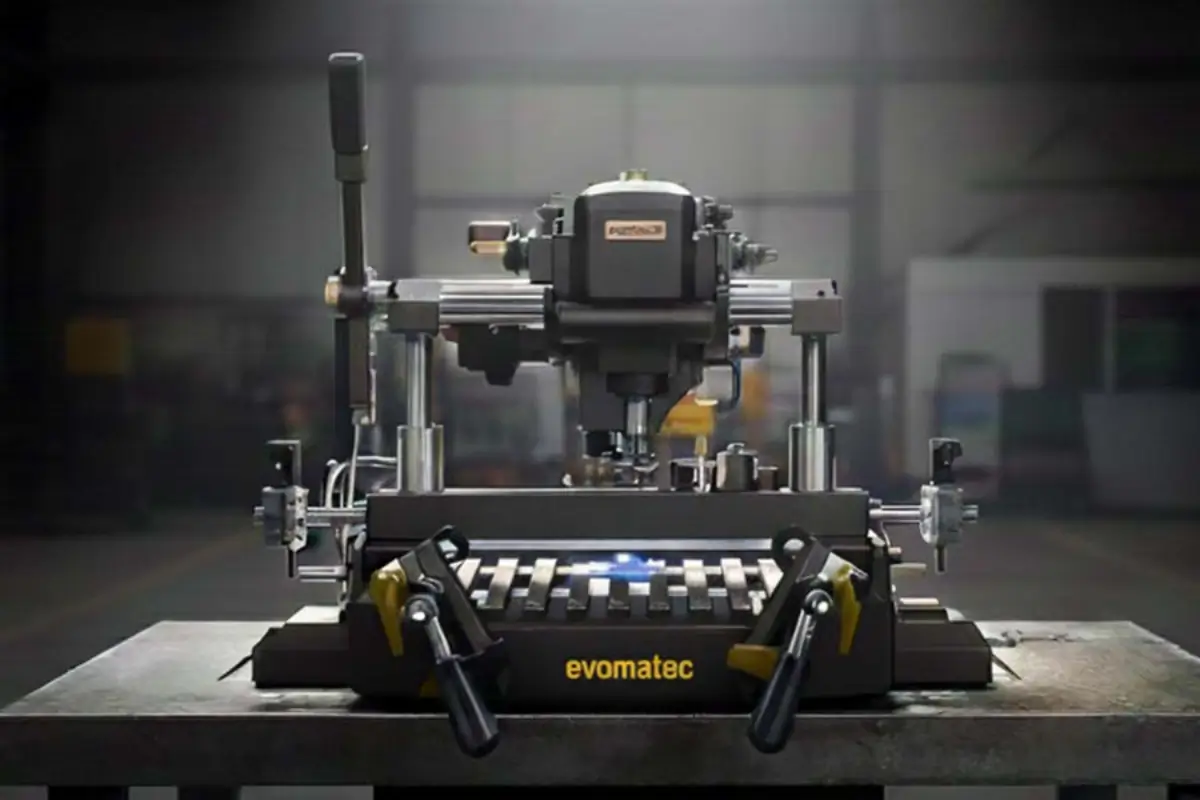

The EVOCOPY 100 is a mobile copy router designed for the precise milling of lock and handle holes, drainage slots, hardware recesses, and technical openings in aluminium profiles.
This professional industrial machine combines compactness, precision, and mobility, making it ideal for daily use in window, door, and façade manufacturing.

Equipped with a powerful 1.1 kW motor operating at 28,000 rpm, the EVOCOPY 100 delivers clean, fast, and precise milling even on thin-walled aluminium profiles.
Its solid machine base and ergonomic design ensure low-vibration, safe, and accurate machining—both in workshop environments and on construction sites.

Technical Specifications

Motor Power: 1.6 HP / 1.1 kW, 230 V, 50–60 Hz, 28,000 rpm
Milling Tool: Ø 8 mm, shank 5 mm
Working Area: X = 217 mm, Y = 125 mm, Z = 127 mm
Dimensions: 555 × 555 × 570 mm
Weight: 29 kg – compact and easy to transport
Ergonomic Hand Guidance: for precise and fatigue-free operation
Solid Machine Base: provides stability and vibration-free milling

Each component of the EVOCOPY 100 is engineered for maximum precision, efficiency, and user comfort.

Milling Applications and Areas of Use

The EVOCOPY 100 has been developed for a wide range of milling operations on aluminium profiles, covering both standard and custom machining requirements in window, door, and façade production.

1. Lock and Handle Milling

Milling of handle openings, keyholes, and cylinder holes
Precise positioning for door and window fittings

2. Drainage Openings

Accurate slots or holes in the lower profile section for efficient water drainage

3. Hardware and Hinge Milling

Recesses for hinges, corner bearings, and fittings on aluminium windows and doors

4. Cutouts for Locking Rods and Gear Mechanisms

Elongated openings along the profile axis for multi-point locking systems or transmission rods

5. Technical and Custom Machining

Milling for sensors, sockets, cable passages, or special façade profiles

The EVOCOPY 100 performs all these operations quickly, precisely, and consistently—
without CNC control and without time-consuming reconfiguration.

Advantages of the EVOCOPY 100

High-Precision Milling for locks, handles, and fittings
Compact and Mobile Design for flexible workshop and on-site operations
CE-Certified Safety for continuous industrial use
Low-Vibration Machining for smooth, burr-free finishes
Low-Maintenance Construction with an energy-efficient motor
Ergonomic Operation Concept ensuring optimal visibility of the workpiece
Compatible with Various Aluminium Profiles and tooling accessories

The EVOCOPY 100 sets new standards for mobility and precision in aluminium profile milling, combining industrial power with portable versatility.

Applications in Industrial Window and Door Production

The EVOCOPY 100 ranks among the most versatile copy routers on the market, designed specifically for professional aluminium profile machining.
Whether for serial production, special profile processing, or on-site adjustments, it delivers precision, reliability, and flexibility.

Ideal Use Cases

Window and door manufacturing workshops
Façade and metal construction companies
Assembly and finishing teams

Thanks to its lightweight design and robust construction, the EVOCOPY 100 is a powerful all-round solution for both stationary and mobile use.

Conclusion

The EVOCOPY 100 is the ideal solution for companies seeking precise, safe, and efficient milling of locks, handles, and fittings on aluminium profiles.
With its compact structure, powerful motor, and user-friendly operation, it seamlessly combines industrial quality with mobile flexibility.

EVOMATEC – Machines for Precision Aluminium Profile Processing.

For more information or a personalized quotation, please contact our sales team: Click here
