AUTOMATIC MITRE SAW FOR ALUMINIUM PROFILES – EVOM II 500

Industrial Precision, Performance, and Efficiency in Aluminium Profile Processing

Precise Mitre Cuts for the Highest Demands

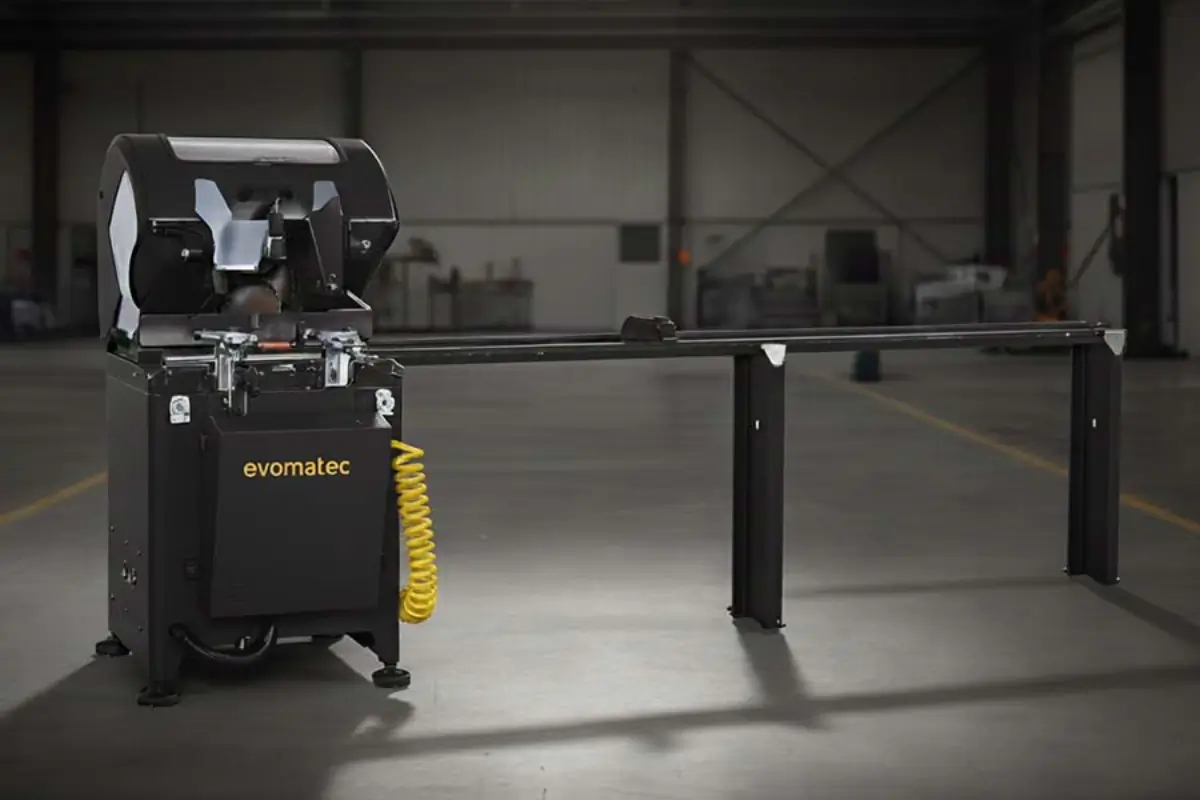

The EVOM II 500 automatic mitre saw for aluminium profiles is engineered for precise, burr-free, and efficient cutting of aluminium and light alloy profiles.
Equipped with hydro-pneumatic feed technology, a durable cast-iron frame, and a powerful 500 mm saw blade, it sets new standards in cutting quality, productivity, and operational reliability.

The EVOM II 500 combines advanced drive engineering, precision control, and ergonomic handling in a compact industrial design — ideal for use in window, door, façade, and profile system production, as well as in industrial serial manufacturing.

Hydro-Pneumatic Technology – Precision and Control in Perfection

The hydro-pneumatic feed system ensures smooth, controlled cutting motion that minimizes vibration and significantly extends saw blade life.
This technology produces clean, polished surfaces with minimal material loss — even when cutting thick or anodized aluminium profiles.

With a variable cutting angle from −67.5° to +67.5° and fixed detent positions at 0°, 15°, 22.5°, 30°, 45°, and 67.5°, the EVOM II 500 offers outstanding versatility for precise mitre cuts, frame joints, and all types of aluminium profile sections.

The automatic cutting speed control automatically adapts to the material, ensuring consistent precision — from single cuts to continuous serial production.

Industrial Safety and User Comfort

The EVOM II 500 is equipped with a safety cover featuring integrated sensor monitoring to ensure maximum operator protection.
The cutting process only starts when the protective hood is completely closed — providing both safety and consistent quality.

Pneumatic clamping cylinders secure the profile vertically and horizontally, keeping the workpiece stable and slip-free throughout the cut.
This advanced clamping system eliminates vibration and ensures dimensional accuracy and repeatable precision with every cut.

Robust Design and Industrial Efficiency

The heavy-duty cast-iron body of the EVOM II 500 absorbs vibrations for stable, precise operation.
A high-performance 4 kW (5 HP) motor drives the Ø 500 mm carbide-tipped saw blade, purpose-built for aluminium and non-ferrous metals — offering high cutting speed and long tool life.

The integrated cooling system minimizes friction, prevents overheating, and ensures clean, burr-free surface finishes.
With an air pressure of 6–8 bar and a consumption of just 38 L/min, the machine operates energy-efficiently, quietly, and with minimal maintenance — ideal for daily industrial use.

Technical Specifications

Core Performance

  • Saw Blade Diameter: Ø 500 mm (carbide-tipped)

  • Spindle Speed: 2,347 rpm

  • Motor Power: 4 kW (5 HP)

  • Voltage / Frequency: 400 V / 50 Hz

Cutting and Feed System

  • Cutting Angles: −67.5° to +67.5°, fixed at 0°, 15°, 22.5°, 30°, 45°, and 67.5°

  • Feed System: hydro-pneumatic, continuously adjustable

  • Clamping System: pneumatic, vertical + horizontal

  • Cooling System: integrated

Air and Dimensions

  • Air Pressure: 6–8 bar

  • Air Consumption: 38 L/min

  • Machine Dimensions: 3,910 × 1,160 × 1,480 mm

  • Weight: 278 kg

Advantages of the EVOM II 500 Automatic Mitre Saw

Precision and Cutting Quality

  • Hydro-pneumatic feed system for smooth, controlled cutting motion

  • Large cutting range with variable mitre angles up to ±67.5°

  • Integrated cooling system for burr-free, polished edges

Stability and Safety

  • Pneumatic clamping system for vibration-free workpiece fixation

  • CE-certified safety cover with intelligent sensor control

  • Robust cast-iron construction for long-term durability and accuracy

Industrial Efficiency

  • Energy-efficient, low-maintenance operation for continuous use

  • Compact and ergonomic design for workshop and production line applications

  • Designed for high-volume, precision industrial cutting operations

Typical Applications

  • Window and Door Manufacturing: precise mitre cuts for frames, sashes, and profiles

  • Façade and Winter Garden Construction: accurate cuts for mullion, transom, and cover profiles

  • Aluminium Frame and Profile Systems: for glass and architectural metal structures

  • Serial Production: consistent profile cutting for industrial and architectural use

  • Technical Precision Cutting: in metal and lightweight construction

Conclusion

The EVOM II 500 automatic mitre saw for aluminium profiles represents industrial precision, maximum efficiency, and outstanding operational safety.
Its hydro-pneumatic feed system, automatic angle adjustment, and pneumatic clamping technology ensure perfectly accurate and repeatable cuts with the highest productivity.

This machine is the ultimate solution for manufacturers and industrial facilities seeking superior quality, reliability, and cost efficiency.
It combines innovative cutting technology with a durable cast design — engineered for professional, continuous aluminium profile processing.

EVOMATEC – Precision Machinery for Aluminium Profiles
