AUTOMATIC END MILLING MACHINE FOR PVC PLASTIC PROFILES EVOP III

Automatic End Milling Machine for PVC Plastic Profiles EVOP III – Precision and Efficiency for Modern Window and Door Manufacturing

Automated Finishing for Maximum Fitting Accuracy

High-Precision Automated End Processing

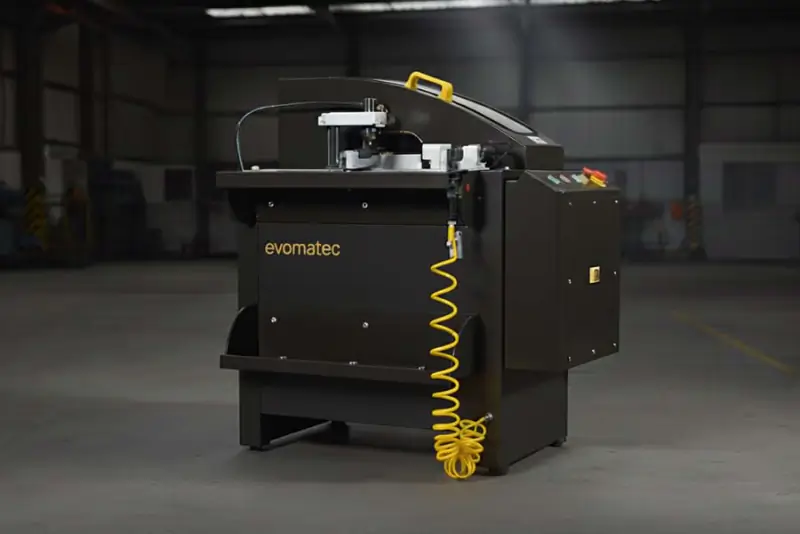

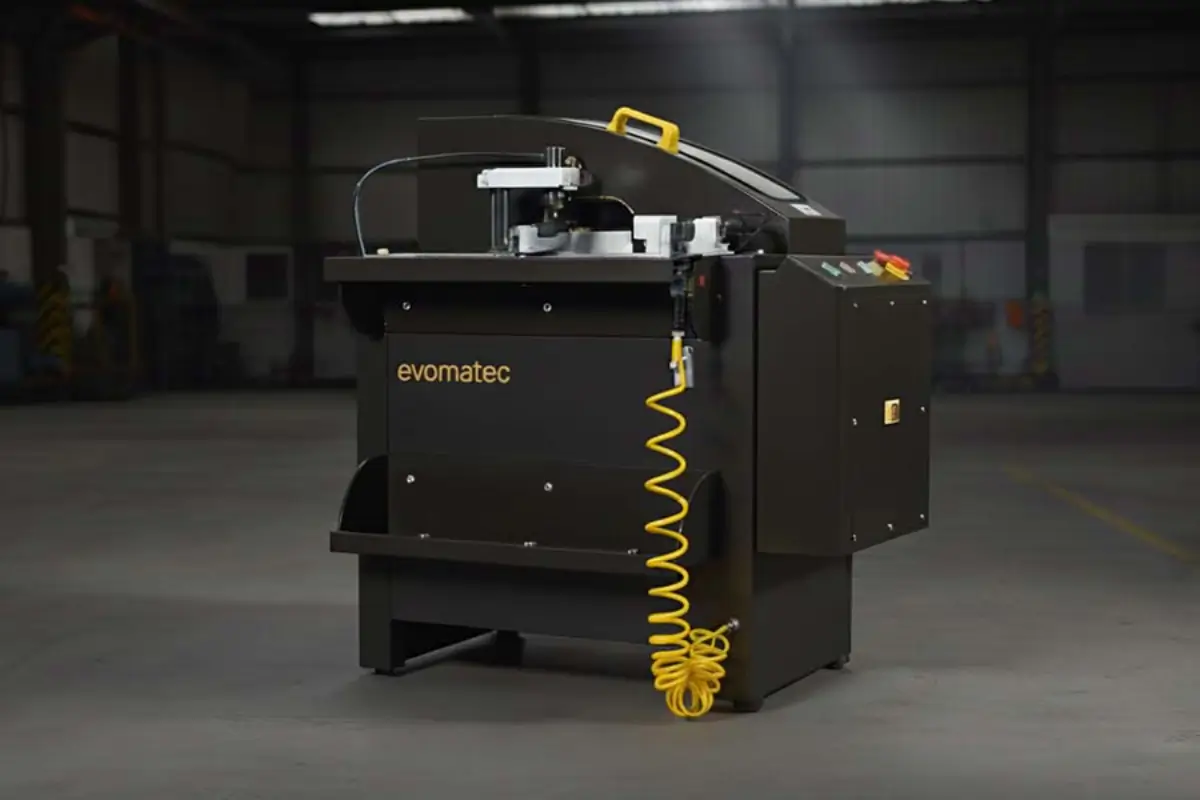

The automatic end milling machine EVOP III by Evomatec is specifically engineered for the precision machining of PVC and plastic profiles in professional window, door, and façade production.
It is an essential machine for accurately preparing frame, sash, mullion, and transom profiles through notching, end milling, or contour milling.

With its hydro-pneumatic feed system, automatic tool control, and robust machine structure, the EVOP III combines maximum precision with industrial productivity.
It enables clean, burr-free, and repeatable milling results—a key factor for tight-fitting, durable, and leak-proof connections in modern PVC window systems.

Precise End Milling and Notching of PVC Profiles

The EVOP III is designed for the automatic machining of profile ends where frames, sashes, mullions, and transoms are joined.
Its high-performance milling tool produces exact miters, grooves, pockets, and notches that are perfectly aligned for durable, accurate, and seamless joints.

During machining, the pneumatic clamping system holds the workpiece securely in place, ensuring absolute stability.
The rotating carbide-tipped milling cutter shapes the profile ends automatically and precisely, while the hydro-pneumatic feed ensures smooth, consistent motion.

By using different milling tools and adjustable angles, the EVOP III can be adapted to a wide range of profile types and system geometries, making it ideal for manufacturers with diverse product lines in window and door construction.

Hydro-Pneumatic Technology – Precision in Motion

The hydro-pneumatic feed system of the EVOP III guarantees a smooth, controlled milling motion.
This advanced technology ensures low vibration, extends tool life, and maintains consistently high cutting quality—even with complex profiles.

After each milling cycle, the tool automatically returns to its starting position, reducing cycle times and increasing productivity.
The combination of automatic feed control, secure clamping, and precise tool guidance makes the EVOP III the ideal solution for series production and industrial manufacturing lines.

Technical Specifications of the EVOP III End Milling Machine

Drive System: Hydro-pneumatic feed
Motor Power: 1.1 kW (1.5 HP)
Spindle Speed: 3,000 rpm
Voltage: 400 V / 50–60 Hz
Cutter Diameter: 140 mm
Tool Bore: 30 mm
Stroke: 210 mm
Milling Depth: 90 mm
Air Pressure: 6–8 bar
Air Consumption: 30 L/min
Machine Dimensions: 970 × 670 × 1140 mm
Weight: 84 kg
Safety System: Automatic protective hood with sensor
Features: Pneumatic clamping system, automatic tool return, profile support table, tool holder

Key Advantages of the EVOP III

Precision for All Profile Connections
Whether for mullions, transoms, or intermediate profiles—the EVOP III mills each joint with maximum accuracy.
The automatic feed control ensures smooth surfaces and perfectly aligned end contours.
Automatic Control for Consistent Quality
The hydro-pneumatic system maintains uniform milling results across long production cycles—independent of the operator or profile type.
Versatile Adaptability
Suitable for various PVC profile shapes and system dimensions, the EVOP III allows interchangeable milling tools for notching, contouring, or end finishing.
Safety and User Comfort
The automatic clamping system provides secure fixation, while the sensor-equipped protective hood prevents unintended access during operation, ensuring maximum workplace safety.
Low Maintenance and High Durability
Designed for continuous operation, the EVOP III features an energy-efficient system that minimizes air consumption and maintenance intervals—ideal for industrial serial production.

Typical Applications in the Construction Industry

The EVOP III is a versatile, high-performance machine and a key component in modern PVC production lines.

Common Applications:

Notching transom profiles for strong frame joints
End milling of mullion and intermediate profiles prior to welding
Machining coupling and extension profiles
Producing mitered and perfectly aligned joint surfaces
Post-processing welded frame profiles

This universal milling machine meets the demands of workshops, window manufacturers, and industrial producers who require repetition accuracy, efficiency, and premium surface quality.

Integration into Automated Production Lines

The EVOP III can be seamlessly integrated into existing window production systems.
When combined with miter saws, welding machines, and copy routers for plastic profiles, it enables a fully automated production process—from profile preparation to final assembly.

Industrial Efficiency – Made by Evomatec

The EVOP III embodies German engineering quality, robust design, and precision performance.
With its intelligent feed control, compact construction, and high process reliability, it’s the optimal solution for PVC and plastic fabricators demanding maximum efficiency and accuracy.

Conclusion – EVOP III: The Premium End Milling Machine for PVC and Plastic Profiles

The automatic end milling machine EVOP III by Evomatec combines precision, speed, and safety in one compact industrial system.
Whether notching transom profiles, end milling mullions or intermediate posts, or preparing frame and sash joints, it guarantees perfect fitting accuracy, burr-free surfaces, and top productivity.

An ideal choice for companies that value quality, reliability, and technological innovation, the EVOP III is engineered for the future of modern window and door manufacturing.
