TABLE SAW FOR ALUMINIUM PROFILES – EVOM I 400

Maximum Precision, Manual Control, and Industrial Reliability in Aluminium Processing

Accurate Mitre Cuts for Aluminium Profiles

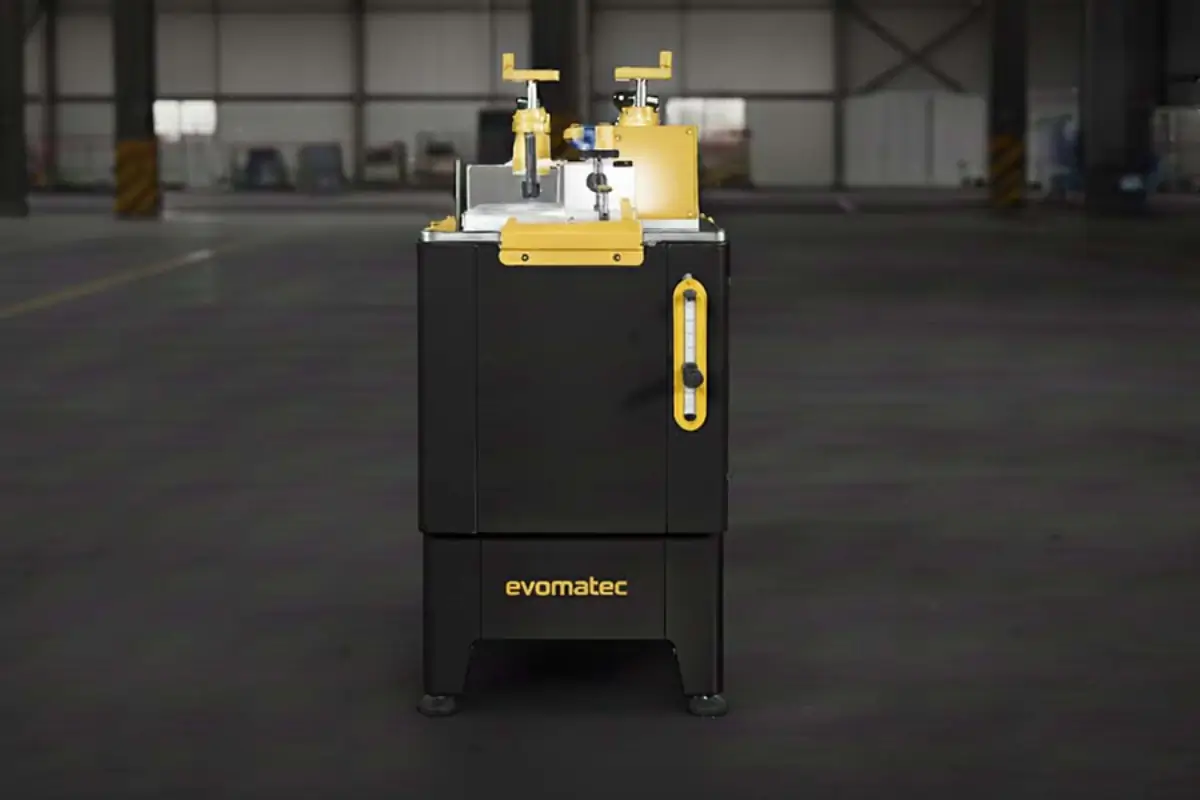

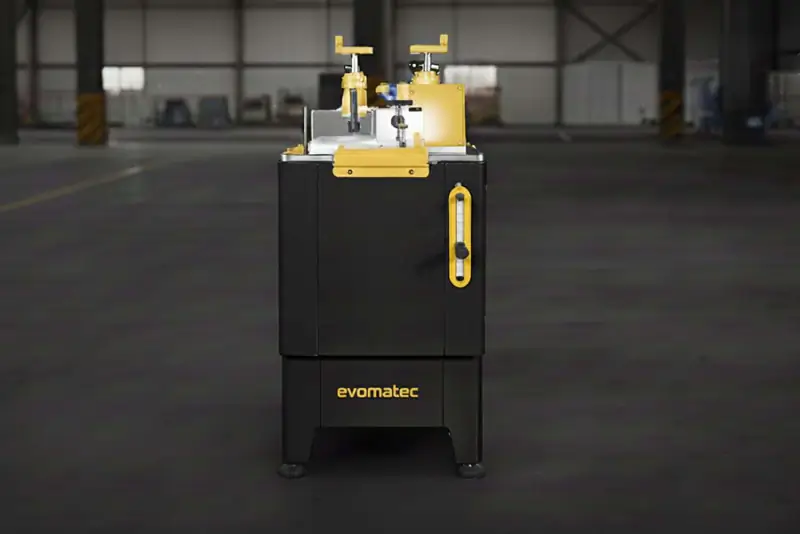

The EVOM I 400 table saw for aluminium profiles is specifically designed for professional users who require precise, angle-stable, and burr-free cuts in aluminium profiles.
With its robust cast-iron structure, ergonomic hand control, and high-performance motor, it guarantees exceptional cutting results — even with complex profile geometries and during continuous industrial operation.

This manual table saw combines maximum control over feed, cutting speed, and material handling with a safe, CE-compliant operating system.
It is the perfect solution for workshops, metal fabricators, and manufacturers in the window, door, and façade industries who demand accuracy, repeatability, and long-lasting performance.

Why Choose a Manual Table Saw for Aluminium Profiles?

A manual table saw offers a decisive advantage: full operator control.
Especially in aluminium profile processing, where exact angles and smooth surfaces are essential, manual operation allows precise, repeatable cutting results without extensive setup times.

The EVOM I 400 combines the proven stability of a traditional table saw with modern drive and safety technology.
The result: precise mitre cuts, clean surface finishes, and efficient workflows in every production environment.

Technical Specifications

Performance and Operation

  • Saw Blade Diameter: Ø 400 mm (carbide-tipped)

  • Spindle Speed: 3,000 rpm

  • Motor Power: 2.2 kW (3 HP)

  • Voltage / Frequency: 400 V / 50 Hz

Cutting and Clamping

  • Cutting Angles: −45° to +45° with stops at 0°, 15°, 22.5°, 30°, and 45° (right/left)

  • Clamping System: manual clamps for secure workpiece fixation

  • Air Pressure: 6 – 8 bar

  • Air Consumption: 15 L/min

Materials and Safety

  • Suitable Materials: aluminium, plastic, wood profiles

  • Safety Equipment: fully enclosed cover with safety sensor (cutting only possible when closed)

  • Machine Base: heavy, vibration-dampened cast-iron frame

Design Highlights for Professional Use

  • Solid cast base for exceptional stability and precise repeatability

  • Ergonomic manual operation for fine control and accurate cutting guidance

  • Splash and chip protection for clean and safe working conditions

  • Energy-efficient pneumatic system (6–8 bar) with low air consumption of only 15 L/min

Advantages of the EVOM I 400

Precise Angle Control

Continuously adjustable angle range from −45° to +45° with defined detent points for fast mitre changes and exact cutting angles.

Burr-Free Cutting Surfaces

The Ø 400 mm carbide-tipped saw blade at 3,000 rpm ensures smooth, clean edges without distortion or burrs — ideal for visible frame joints and precise façade connections.

Low Vibration and Long Service Life

The heavy cast structure minimizes vibration and extends the lifespan of both the saw blade and bearings.
Engineered for continuous operation with minimal maintenance requirements.

Safe Operation According to CE Standards

The safety cover with integrated sensor prevents operation when open.
Manual clamps ensure stable and secure workpiece fixation throughout the cutting process.

Efficient and Cost-Effective Performance

The manual design ensures low air consumption and short setup times — ideal for individual cuts, small series, and on-site assembly work.

Typical Applications

  • Window Manufacturing: precise mitres on frame and sash profiles

  • Door Production: accurate cuts for jambs, thresholds, and connection strips

  • Façade Construction: clean mitres on mullion, transom, and cover profiles

  • Workshop and Assembly: flexible machining of various profile cross-sections

  • Metal and Light Construction: precise individual cuts without complex automation

Ease of Use and Quality in Every Detail

The EVOM I 400 ensures a structured, safe, and efficient workflow:
Insert the profile → clamp manually → set the desired angle → execute the cut.
The combination of powerful motor performance, robust mechanics, and CE-certified safety features guarantees consistently precise results with minimal rework.

Conclusion

The EVOM I 400 table circular saw for aluminium profiles represents precision engineering, operator safety, and industrial reliability.
With its Ø 400 mm carbide blade, 3,000 rpm spindle speed, and adjustable cutting angles, it delivers accurate, burr-free cuts in aluminium, plastic, and wood profiles — ideal for professional use in workshops and serial production environments.
