CNC MILLING CENTER EVO FZ

CNC Milling Center EVO FZ – High-Precision 5-Axis Swivel Table Machining Center for Maximum Productivity

Technological Excellence for Complex Workpieces

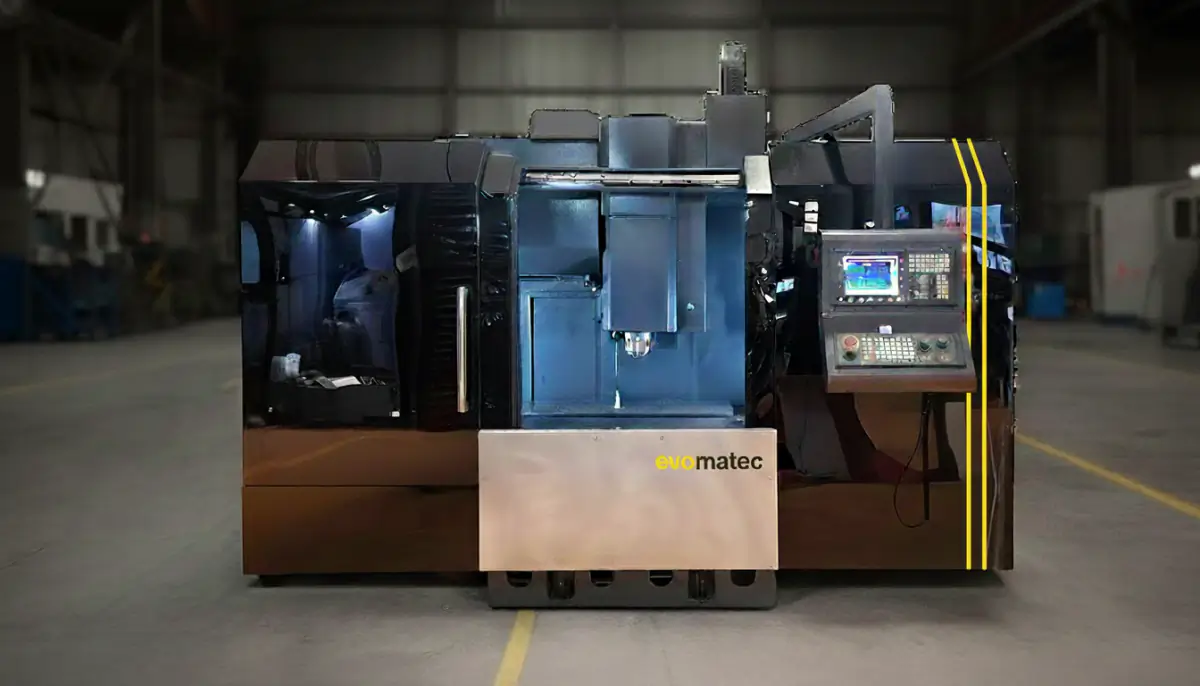

The CNC Milling Center EVO FZ by Evomatec sets new standards in 5-axis simultaneous machining.
Featuring a swivel-rotary table design, monolithic cast structure, and high-performance spindle, it offers exceptional precision, dynamics, and process reliability — even for the most demanding freeform surfaces and complex components.

This advanced milling and turning center is engineered for the highest requirements in the aerospace, tool and mold making, energy, and automotive industries.
Thanks to full 5-axis simultaneous machining, workpieces can be completely processed in a single setup — ensuring precision, efficiency, and cost-effectiveness.

Ultimate Precision Through Monoblock Cast Construction

The EVO FZ is built on a monoblock cast-iron frame specifically designed to absorb vibration and maintain thermal stability.
This construction minimizes deflection, guaranteeing long-term dimensional accuracy — even under high cutting loads and extended machining cycles.

Each machine is thermally stabilized and precision-ground to achieve micron-level repeatability.
The result is a consistently high surface finish, regardless of material or workpiece size.

Key Technical Specifications

Swivel-Rotary Table Technology – Maximum Flexibility

At the heart of the EVO FZ lies its integrated 5-axis swivel table.
With a ±360° rotation range (C-axis) and +120° / -30° swivel range (A-axis), it allows complete multi-angle machining without reclamping.

Performance of the rotary table:

• A-axis power: 20.34 kW, torque 10,000 Nm

• C-axis power: 43 kW, speed 600 rpm

• Hydraulically clamped and direct-driven for maximum dynamics and positioning precision

This combination of power and control ensures uniform results — even for massive workpieces weighing up to 2 tons.

Spindle Technology – Precision with Power

The high-performance spindle reaches speeds up to 15,000 rpm, combining high torque with vibration-free smoothness.
Its oil-air lubrication and integrated cooling maintain optimal thermal conditions, ensuring consistent machining accuracy.

Whether high-speed aluminum milling or heavy-duty steel cutting, the EVO FZ delivers superior cutting force and dynamic stability.

Tool Management and Automation

Equipped with a 48-position automatic tool changer, the EVO FZ enables fast, fully automated tool swaps within seconds.
The CNC system digitally monitors tool life, wear compensation, and breakage detection, ensuring uninterrupted, precise production.

Optional automation features include pallet changers, robotic interfaces, and zero-point clamping systems, enabling lights-out production for maximum efficiency.

Next-Generation CNC Control

The EVO FZ supports top-tier CNC systems from Siemens, Heidenhain, and Fanuc.
Each offers full 5-axis simultaneous operation, real-time collision monitoring, intelligent tool management, and adaptive feed control.

Control highlights:

• 3D graphic simulation of tool paths

• Intuitive touchscreen interface

• Automatic workpiece and tool calibration

• Full connectivity for Industry 4.0 integration

Application Areas

The EVO FZ 5-Axis Machining Center serves a broad range of industrial sectors:

• Tool and mold making: high-precision roughing and finishing of complex contours

• Aerospace industry: turbine components and structural parts

• Automotive manufacturing: engine blocks, prototypes, aluminum housings

• Energy technology: heavy-duty components from steel or titanium

• Medical engineering: intricate, high-precision micro parts

Precision Meets Productivity

Combining milling and turning capability, a 35 kW spindle, and 2,000 kg load capacity, the EVO FZ is the ultimate machine for demanding precision manufacturing.
Its simultaneous 5-axis operation reduces machining time, minimizes setup, and improves dimensional accuracy — the foundation of modern, cost-efficient production.

Evomatec – Made for Precision

Every EVO FZ is manufactured, tested, and CE-certified in Germany under strict quality standards.
Evomatec stands for engineering innovation, sustainable manufacturing, and global customer support.

Whether for single-part production, small batches, or fully automated serial manufacturing — the EVO FZ ensures precision, efficiency, and future readiness.

Contact our expert team for a free consultation: Click here
