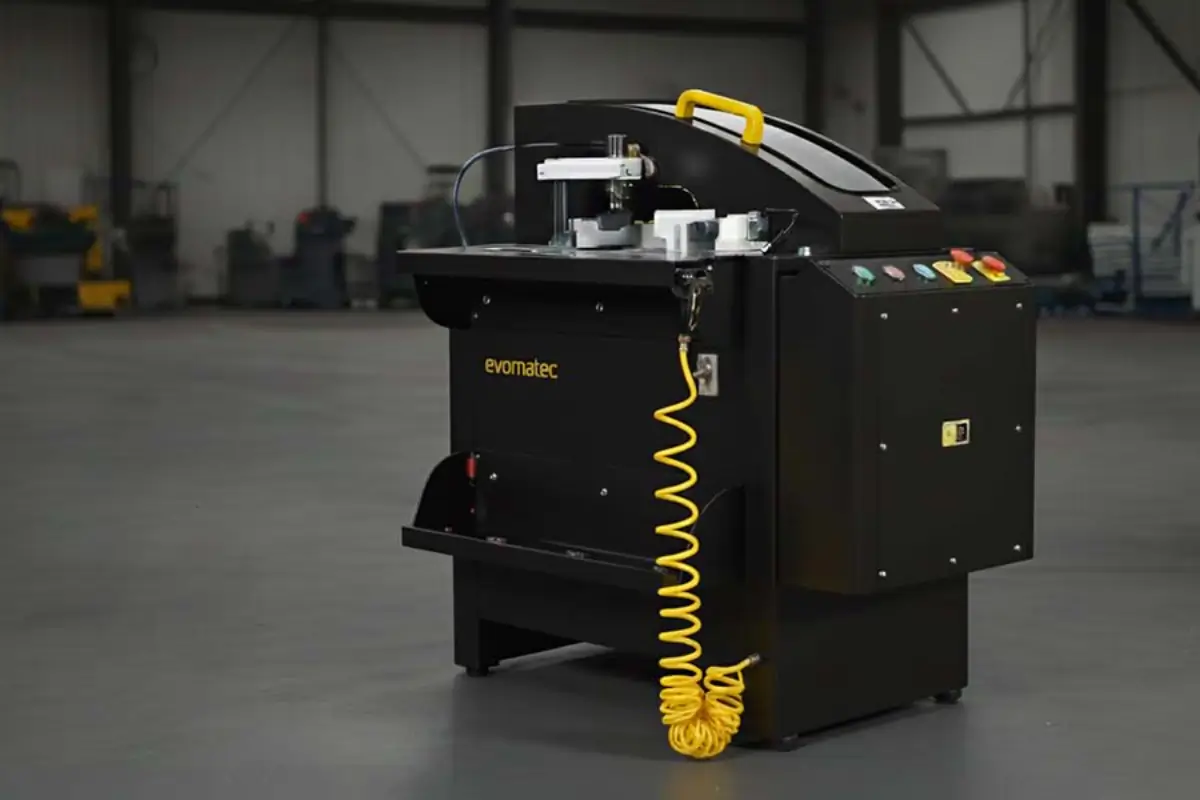

AUTOMATIC NOTCHING MILLING MACHINE FOR ALUMINIUM PROFILES – EVOP IV

Hydro-Pneumatic Precision for Perfect End Machining of Aluminium Profiles

Precise End Milling – Efficiency, Stability, and Repeat Accuracy

The EVOP IV automatic notching milling machine for aluminium profiles is engineered for the precision machining of profile ends — the critical processing point for strong, sealed, and perfectly aligned frame connections.
Equipped with a hydro-pneumatic feed system, a robust cast base, and CE-certified safety features, the EVOP IV delivers exceptional performance, durability, and precision — ideal for industrial use in window, door, and façade manufacturing.

Combining state-of-the-art milling technology, ergonomic design, and maximum productivity, the EVOP IV is the perfect solution for manufacturers who demand superior dimensional accuracy, efficiency, and operational safety in aluminium profile processing.

Hydro-Pneumatic Precision at the Profile End

The advanced hydro-pneumatic system of the EVOP IV ensures a uniform, controlled feed of the milling tool, resulting in vibration-free, clean, and smooth edges.
This system maintains a consistent cutting speed and significantly extends tool life, even in continuous production cycles.

At the profile end — the central machining point in frame and façade production — the EVOP IV achieves maximum accuracy.
The result is precise notching and perfect profile transitions, ensuring tight, stable, and long-lasting joints.

High-Quality Milling and Clamping System

  • Hydro-pneumatic feed: enables consistent, chatter-free milling operations.

  • Pneumatic clamping system: vertical and horizontal clamping ensures ultimate stability during machining.

  • Automatic return: shortens cycle times and increases overall productivity.

  • Adjustable milling angles with degree scale: adaptable to a wide range of profile geometries.

  • Quick-change tool system: minimizes downtime during cutter changes.

  • Safety hood with sensor control: operation only when the cover is fully closed — ensuring maximum safety.

  • Solid profile support and stable spindle mount: enable precise results even on large cross-section profiles.

Technical Specifications

  • Motor Power: 2.2 kW (3 HP)

  • Speed: 3,000 rpm

  • Voltage: 400 V / 50–60 Hz

  • Cutter Diameter: Ø 160 mm

  • Tool Holder: Ø 30 mm

  • Milling Depth: 160 mm

  • Stroke Length: 210 mm

  • Air Pressure: 6–8 bar

  • Air Consumption: 30 L/min

  • Dimensions: 970 × 670 × 1,140 mm

  • Weight: 110 kg

  • Cooling: optional integration available

  • CE Certification: standard

Advantages of the EVOP IV Automatic Notching Milling Machine for Aluminium Profiles

  • Precision end machining: delivers clean notches and smooth surfaces for perfect frame connections.

  • Hydro-pneumatic technology: consistent feed motion ensures uniform milling quality.

  • High efficiency: automatic return and quick-change system reduce cycle times.

  • Maximum safety: sensor monitoring and fully enclosed hood guarantee safe operation.

  • Robust machine design: cast-iron construction minimizes vibration for lasting precision in continuous production.

  • Energy-efficient & low-maintenance: reduced air consumption and durable components minimize operational costs.

  • CE-certified: complies with the latest European safety regulations.

Typical Applications

  • Window Manufacturing: precision machining of profile ends for corner and frame connections.

  • Door Production: notching and milling aluminium profiles for strong and durable joints.

  • Façade Construction: accurate milling of joints and frame intersections.

  • Industrial Series Production: consistent end machining with repeatable precision.

  • Metal and Light Construction: versatile use for both aluminium and PVC profiles.

Efficiency and Safety in Aluminium Profile Processing

The EVOP IV notching milling machine combines precision, productivity, and process reliability.
Thanks to its hydro-pneumatic feed and automatic return system, it delivers fast, clean, and efficient operation with minimal operator effort.
The quick-change tool system significantly reduces setup times, while the CE-certified safety system provides reliable operator protection.

With its robust structure, energy-efficient drive system, and high-precision milling technology, the EVOP IV is the ideal machine for professional manufacturing environments where precision, durability, and efficiency are paramount.

Conclusion

The EVOP IV automatic notching milling machine for aluminium profiles represents the latest in milling technology, precise end machining, and industrial reliability.
Featuring a hydro-pneumatic feed system, automatic return function, pneumatic clamping, and CE-certified safety components, it is the ultimate solution for manufacturers requiring exact, repeatable, and burr-free results in aluminium profile processing.

Whether in window, door, or façade production, the EVOP IV delivers consistently accurate results with minimal maintenance and maximum productivity.


EVOMATEC – Machines for Precision Aluminium Profile Processing
Technical Consultation: Contact us at info@evomatec.de
