AUTOMATIC GLAZING BEAD SAW WITH DIGITAL LENGTH STOP EVOOR DD

Automatic Glazing Bead Saw with Digital Length Stop EVOOR DD – Precision Meets Digital Innovation

Digital Accuracy for PVC and Plastic Profile Cutting

Redefining Modern Profile Processing with Digital Precision

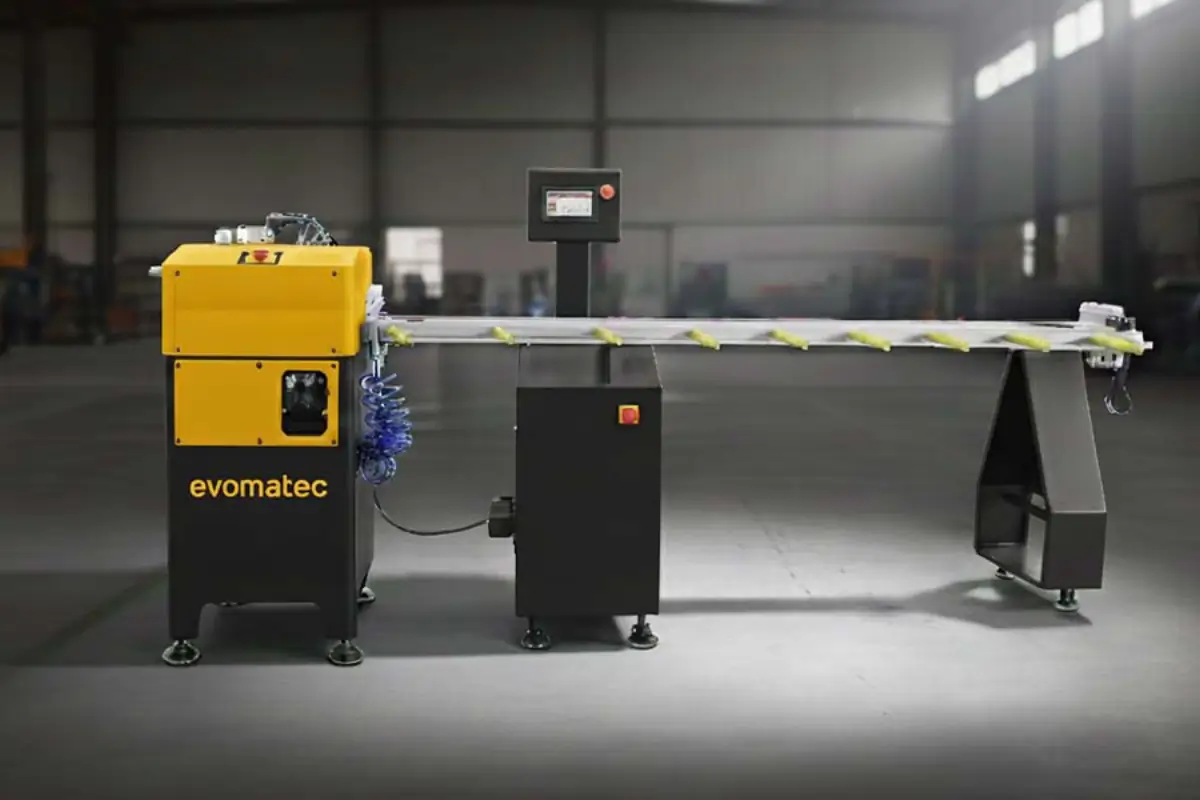

The Automatic Glazing Bead Saw EVOOR DD from Evomatec sets a new benchmark for precision and efficiency in modern profile processing.
Developed for PVC and plastic fabrication in window and door production, it combines digital length control, pneumatic cutting technology, and automated process management into a cutting-edge solution for accurate and efficient serial cutting.

The digital length stop with electronic position measurement ensures highly precise, repeatable cuts – regardless of profile geometry or quantity.
This makes the EVOOR DD glazing bead saw ideal for production facilities seeking maximum dimensional accuracy, high-speed serial production, and minimal material waste.

Advanced Technology for Professional Window Manufacturing

The EVOOR DD operates with a dual cutting system featuring two carbide-tipped saw blades (Ø100 mm and Ø200 mm) set at a 45° angle.
This configuration enables double-sided miter cuts in a single pass – ideal for glazing beads, frame profiles, and PVC components used in industrial window and door manufacturing.

The integrated digital measuring system captures each cutting length with absolute accuracy and transfers the data directly to the control unit.
Through the touchscreen interface, the operator can set and store cutting lengths, programs, and repetition sequences with speed and precision – eliminating human error and setup time.

Combined with automatic feed, pneumatic cutting, and digital length control, the EVOOR DD delivers unmatched precision and efficiency with minimal manual effort.

Technical Highlights of the EVOOR DD Glazing Bead Saw

Saw Blades: Ø100 mm (2 pcs) and Ø200 mm (2 pcs)
Cutting Angle: 45° double-sided
Motor Power: 1.1 kW – 1.5 HP
Speed: 3000 rpm
Control System: Digital Length Stop with Touchscreen Display
Feed Type: Pneumatic with Automatic Return
Max Profile Height: 50 mm
Max Profile Depth: 30 mm
Air Pressure: 6–8 bar
Air Consumption: 20 L/min
Conveyor Length: 6 m with Digital Measuring System
Machine Dimensions: 1020 × 215 × 1110 mm
Weight: 235 kg

Digital Control and Automated Operation

Thanks to its intelligent positioning system, the EVOOR DD glazing bead saw automatically adjusts cutting lengths with digital precision.
PVC or plastic profiles are fed to the saw via the conveyor system, where the digital measuring display defines exact dimensions for each cut.

Once activated, the dual cutting process runs automatically, with the machine returning to its starting position after each cycle.
This high level of automation saves time, minimizes operator errors, and significantly boosts productivity in serial manufacturing.

Advantages of the Automatic Glazing Bead Saw EVOOR DD

Digital Precision at the Highest Level
With its digitally controlled length stop, the EVOOR DD achieves sub-millimeter accuracy. Each profile is positioned and cut with exceptional consistency, regardless of size or shape.
Automatic Positioning and Repeat Accuracy
The intelligent electronic measuring and transfer system eliminates manual measuring errors and reduces setup time. Stored programs allow quick, fully automated repetition of series cuts.
Energy-Efficient and Durable Construction
The pneumatic cutting mechanism operates at optimized air pressure using energy-efficient valves. Its solid aluminum-cast frame guarantees stability, longevity, and minimal maintenance.
User-Friendly Touchscreen Interface
All parameters – including cutting length, angles, and program sequences – are controlled via an intuitive touchscreen. Even complex operations can be configured within seconds.
Perfect Cut Quality Without Post-Processing
The combination of dual-blade cutting and vibration-free design delivers smooth, burr-free surfaces. No grinding or manual finishing is needed, saving both time and labor.
Safety and CE Certification
Equipped with automatic protective covers, an emergency stop system, and air pressure monitoring, the EVOOR DD meets all European safety standards for operator protection and reliability.

Typical Applications in the Construction Industry

Window Manufacturing

Precision cutting of PVC glazing beads and sealing profiles for window frames and sashes.

Door Manufacturing

Accurate processing of decorative and glazing profiles for plastic door systems.

Plastic Profile Fabrication

Flexible production of PVC and composite profiles for façades, interiors, and industrial applications.

Serial Production

Fully automated, high-speed profile cutting with consistent repeat accuracy for large-scale manufacturing.

Productivity and Economic Efficiency

The EVOOR DD glazing bead saw significantly reduces production times and eliminates measurement errors.
With no need for manual measuring or adjustments, facilities achieve up to 40% higher productivity while reducing waste and energy consumption.

Thanks to its automation and precision, the EVOOR DD delivers a rapid return on investment – particularly in high-volume production of glazing beads and window profiles.

Future-Ready Solution for Digital Manufacturing

Designed for Industry 4.0, the EVOOR DD is built for seamless integration into digital production environments.
Optional Bluetooth and Ethernet interfaces allow connectivity with ERP systems, measuring equipment, and other production modules for a fully networked workflow.

Through automated control, data synchronization, and intelligent process optimization, the EVOOR DD represents a major step toward the digital transformation of profile fabrication in the window and door industry.

Conclusion – Digital Perfection for Modern Profile Processing

The Automatic Glazing Bead Saw EVOOR DD with Digital Length Stop combines technological innovation, digital precision, and maximum efficiency in one compact machine.
It is the perfect choice for manufacturers seeking to automate production while maintaining the highest standards of quality and accuracy.

Whether used in window construction, door fabrication, or PVC profile processing, the EVOOR DD stands for German engineering, reliability, and future-proof performance.
