ALUMINIUM PROFILE MACHINING CENTER EVOG5X

‹ ›

ALUMINIUM PROFILE MACHINING CENTER EVOG5X – CNC PROFILE MACHINING CENTER WITH 5 AXES

Maximum Precision, Flexibility and Automation in Aluminium Profile Processing

Advanced 5-Axis CNC Technology for Aluminium, PVC, and Steel Profiles

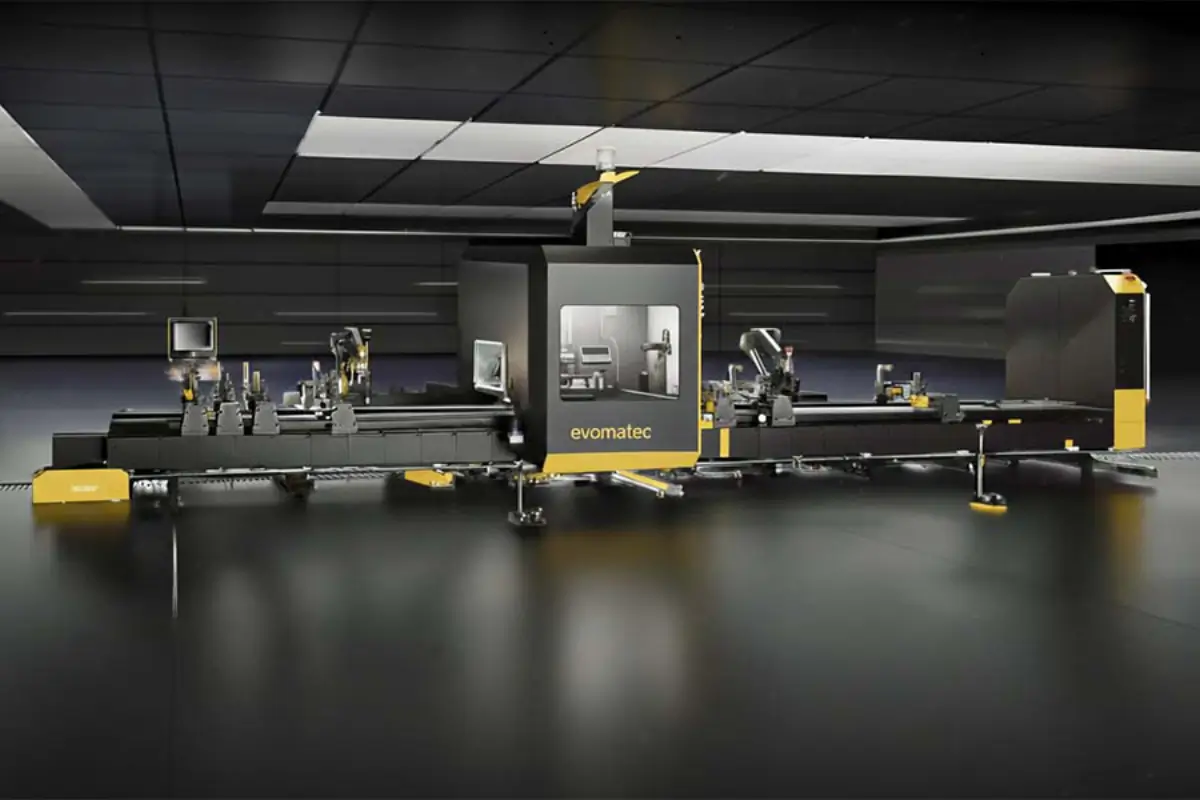

The EVOG5X CNC Profile Machining Center from EVOMATEC is a state-of-the-art industrial 5-axis machining system designed for the precise and versatile processing of aluminium, PVC, light metal, and steel profiles.
Featuring a complete 5-axis configuration (C-axis 360° rotation and A-axis ±90° tilt), the EVOG5X enables complex milling, drilling, sawing, marking, and drainage operations in a single automated workflow — without the need to reposition the profile.

With its 11 kW high-performance spindle, servo-controlled clamping systems, and automatic tool magazine with 20 + 1 tools, the EVOG5X ensures maximum precision, speed, and productivity.
It is the ideal solution for high-demand applications in the window, door, façade, and metal construction industries.

Cutting-Edge Technology for Maximum Productivity

Servo-Controlled Precision with Liquid-Cooled Spindle

The EVOG5X machining center is fully servo-driven and equipped with a liquid-cooled HSK F63 spindle, maintaining consistent performance at speeds up to 24,000 rpm.
Its automatic umbrella-type tool magazine allows seamless execution of complex operations without interruptions, minimizing setup times and increasing efficiency.

The integrated automatic pneumatic clamping system ensures perfect positioning and repeatability.
Optional automatic lubrication and chip evacuation systems make the EVOG5X virtually maintenance-free and ready for continuous industrial operation.

Key Features of the EVOG5X CNC Machining Center

Precise 5-Axis Kinematics

• A-Axis: –90° to +90° (tilting range)

• C-Axis: 0°–360° (rotation for multi-side machining)

• Simultaneous 5-axis interpolation for complex geometries

High-Performance Spindle Technology

• Spindle power: 11 kW

• Speed: up to 24,000 rpm

• Tool holder: HSK F63

• Cooling: liquid-cooled for constant precision

Tool Magazine & Automatic Tool Changer

• Type: Umbrella-style magazine

• Capacity: 20 + 1 tools

• Integrated automatic tool measurement

• Maximum saw blade diameter: 400 mm

Generous Working Area

• X-axis: 8,000 mm (extendable option)

• Y-axis: 515 mm (±50 mm offset from clamp center)

• Z-axis: 370 mm (±50 mm offset from clamp center)

• Working surface: 515 × 370 mm

• Capable of machining steel profiles up to 5 mm wall thickness

High Positioning Speeds

• X-axis: 84 m/min

• Y-axis: 75 m/min

• Z-axis: 40 m/min

• A & C axes: 100°/s

Control & Software Integration

• Industrial PC with 15″ touchscreen display

• Barcode reader for automatic program selection

• Camquix CAM software included as standard

• CadXtract CAD/CAM available as an option

• Data transfer: Ethernet / USB / Remote access

Automation & Safety

• Servo-controlled clamping system with up to 10 clamps

• Automatic lubrication and 8 m chip conveyor

• FESTO pneumatic system

• Enclosed safety cabin with protective barriers

• Optional central automatic lubrication system

Advantages of the EVOG5X in Aluminium Profile Processing

Maximum Versatility

The EVOG5X performs milling, drilling, marking, sawing, slotting, and finishing in a single cycle.
Its 5-axis architecture enables the machining of even non-standard geometries and complex custom profiles with ease.

Ultimate Efficiency

Servo-synchronized motion combined with automatic tool management ensures minimal cycle times and maximum throughput.
With feed speeds up to 84 m/min and direct CAM connectivity, the EVOG5X dramatically reduces downtime and boosts productivity.

Durability and Low Maintenance

The closed, vibration-damped machine design, automatic lubrication, and liquid cooling system ensure long-lasting precision and performance in continuous industrial operation.

Application Areas

Window Manufacturing

• High-precision machining of frame, sash, and handle profiles

• CNC cutting, milling, and drilling with ±0.1 mm repeat accuracy

Door Manufacturing

• Complex machining of door frames, lock housings, and hinge recesses

Façade Construction

• Large-scale profile processing up to 8 m length and 5 mm wall thickness

• Accurate milling and sawing of structural profiles

Metal and Mechanical Engineering

• Manufacturing of aluminium components for machinery, construction, and custom systems

Technical Specifications Overview

EVOMATEC – Innovation and Precision in CNC Aluminium Processing

EVOMATEC represents technological excellence in the machining of aluminium profiles.
Our CNC systems combine German engineering, intelligent automation, and robust mechanical design to deliver the highest levels of efficiency and precision.

The EVOG5X sets new standards in the premium class of CNC technology:

• Designed for 24/7 industrial operation

• Industry 4.0 ready with smart connectivity

• Fully compatible with existing production lines

• CE-certified and low maintenance

With this machine, you are investing in sustainable performance and production excellence.

Conclusion – Future-Proof Precision for Aluminium Profile Systems

The EVOG5X CNC Profile Machining Center combines power, precision, and intelligent control technology in a compact high-performance system.
Whether for window, façade, or metal construction, this machine delivers the perfect balance of 5-axis flexibility, automated tool management, and cutting accuracy at the highest level.

EVOG5X – The Future of CNC Aluminium Profile Machining by EVOMATEC
