DOUBLE MITRE SAW FOR ALUMINIUM PROFILES EVOG SAW

‹ ›

DOUBLE MITRE SAW FOR ALUMINIUM PROFILES – EVOG SAW

Highest Precision, Industrial Efficiency and Digital Control for Aluminium Profile Processing

Precision and Performance for Professional Aluminium Profile Cutting

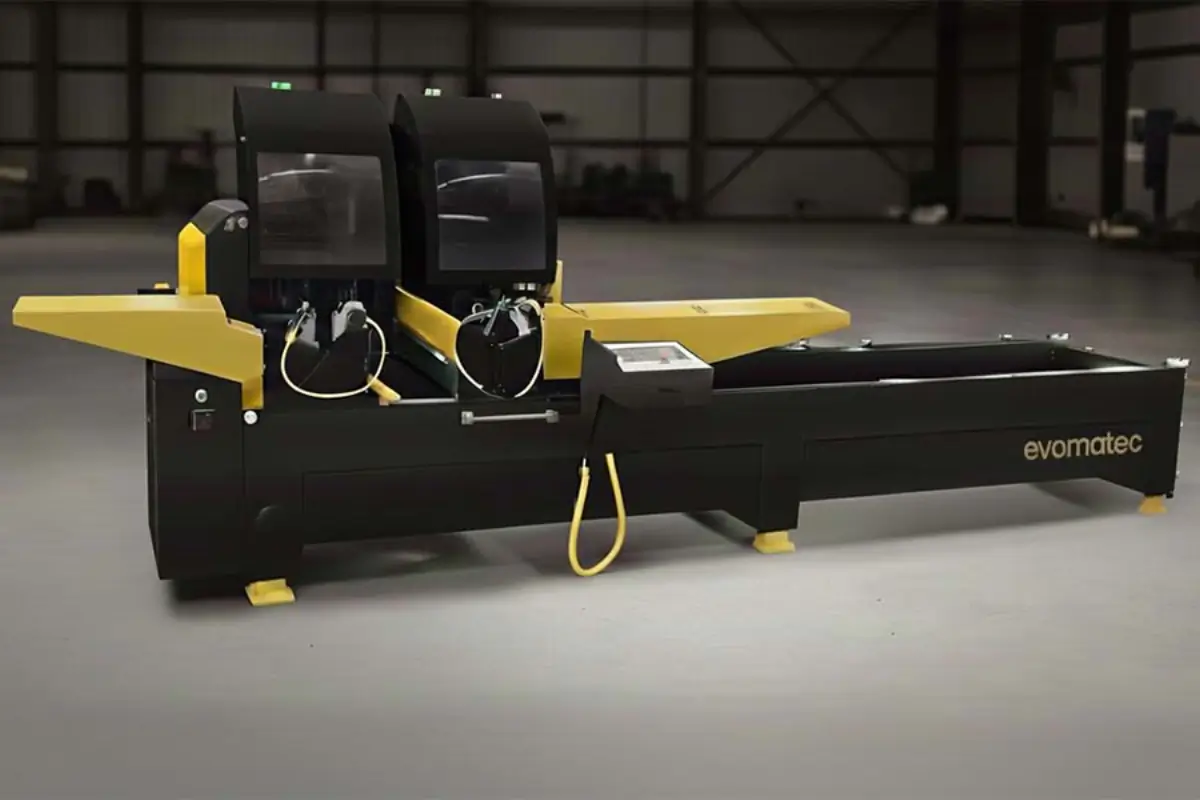

The EVOG SAW Double Mitre Saw by EVOMATEC is a robust, high-precision CNC machine engineered for cutting aluminium profiles in window, door and façade production. With two synchronised saw heads, digital angle control and a solid machine frame, it delivers dimensionally accurate, burr-free cuts ideal for serial manufacturing.

Modern drive technology, intelligent CNC control and hydro-pneumatic precision ensure maximum productivity, repeat accuracy and efficiency with minimal material waste.

Dual-Side Cutting with Maximum Precision

High-Performance Cutting for Industrial Applications

The EVOG SAW enables simultaneous double-sided cutting of aluminium profiles. Each saw head can work synchronously or independently — perfect for frame joints in window, door and façade systems.

Simultaneous cutting significantly increases throughput, reduces cycle time and maintains consistent accuracy. The heavy-duty steel base ensures vibration-free performance, long service life and stable cut quality even under continuous operation.

Digital Mitre Control – Precise Angles from 45° to 90°

CNC-Driven Accuracy for Any Frame Geometry

Both cutting units can be continuously adjusted from 45° to 90° via automatic CNC angle control. This technology enables precise mitre cuts for corner joints, polygonal frames, façades, conservatories and custom aluminium structures.

Servo-driven angular adjustment guarantees dimensional precision regardless of profile size, shape or thickness.

CNC Control for Millimetre-Accurate Cutting

Intelligent Automation for Fast, Reliable Operation

Using digital length measurement and CNC positioning, the EVOG SAW automatically aligns each profile to millimetre precision. Its smart control system optimises cutting parameters, minimises waste and adjusts speeds to each profile geometry.

With EVOSOFT software, operators can store programs, digitally modify angles and optimise production — ideal for both serial and custom manufacturing.

Versatility for All Aluminium Profile Shapes

Flexible Cutting for Complex Designs

Suitable for rectangular, T-, U-, H- and multi-chamber aluminium profiles, the EVOG SAW uses non-ferrous carbide blades with a negative tooth angle to produce burr-free, deformation-free cuts — even on thin or anodised profiles.

The result: smooth surfaces, perfect joints and clean edges for high-end façade and window construction.

Automation and Integration in Production Lines

Fully Compatible with Robotic and Smart Manufacturing Systems

The EVOG SAW can be supplied as a CNC version with automatic head positioning. It integrates seamlessly with EVOROBOT feed systems and digital production lines, creating a fully automated process from profile detection to cutting.

Integration into existing factory systems boosts efficiency while maintaining ease of use.

Typical Applications

• Window production: frame and sash profiles

• Door manufacturing: 45° and 90° cuts for door frames

• Façade construction: precision cutting for structural profiles

• Conservatories and glass roofs: complex angles and special shapes

• Photovoltaic and solar systems: aluminium frames for modules

• Machine enclosures: structural cutting for aluminium assemblies

Technical Specifications

Optional Equipment and Features

• CNC positioning of both heads

• Automatic profile feed/outfeed with EVOROBOT

• Digital angle and length memory

• Cutting-parameter optimisation via EVOSOFT

• Spray-mist or air-cooling for burr-free edges

• Barcode integration for automated workflow

• USB / Ethernet data interface

• Compatible with leading window-production software

Advantages

1. Maximum Cutting Precision

Synchronised heads ensure burr-free, angle-stable results even in mass production.

2. CNC Repeatability

Digital control ensures consistent accuracy, rapid setup and efficient series production.

3. Energy Efficiency and Longevity

Advanced drives and hydraulics reduce power use and extend service life.

4. Robust, Low-Maintenance Design

Solid steel frame and durable components guarantee long-term reliability.

5. Certified Safety

CE-compliant shields, emergency stops and control units provide operator safety.

Quality Assurance and Production Reliability

Each EVOG SAW is built, tested and calibrated under strict CE and ISO standards.
Evomatec ensures:

• Dimensional precision < ±0.2 mm

• Vibration-free motion

• Electrical / hydraulic safety checks

• 100 % functional testing before shipment

Conclusion – Precision, Stability and Efficiency Perfected

The EVOG SAW Double Mitre Saw sets new benchmarks for technological excellence, digital precision and industrial reliability.
It is the preferred choice for manufacturers demanding accurate, repeatable and economical cutting of aluminium profiles.

Whether for windows, doors or façades, the EVOG SAW ensures perfect results, maximum productivity and long-term efficiency.

EVOMATEC – Machines for Precise Aluminium Profile Processing
