COPY ROUTER FOR PVC PLASTIC PROFILES & HANDLE HOLE DRILLING SYSTEM EVOCOPY II

‹ ›

COPY ROUTER FOR PVC PLASTIC PROFILES WITH HANDLE HOLE DRILLING SYSTEM – EVOCOPY II

High-Precision Milling, Drilling, and Slotting for Modern PVC and Plastic Profile Processing

Advanced Copy Router for PVC and Plastic Profile Machining

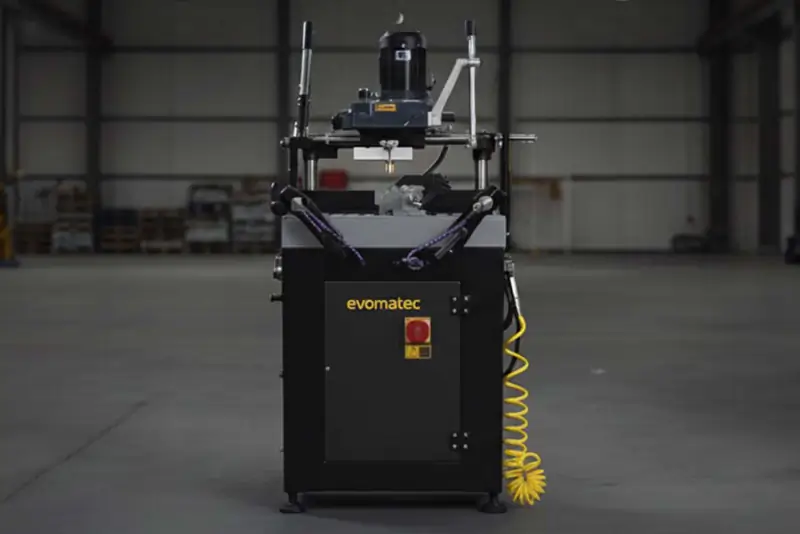

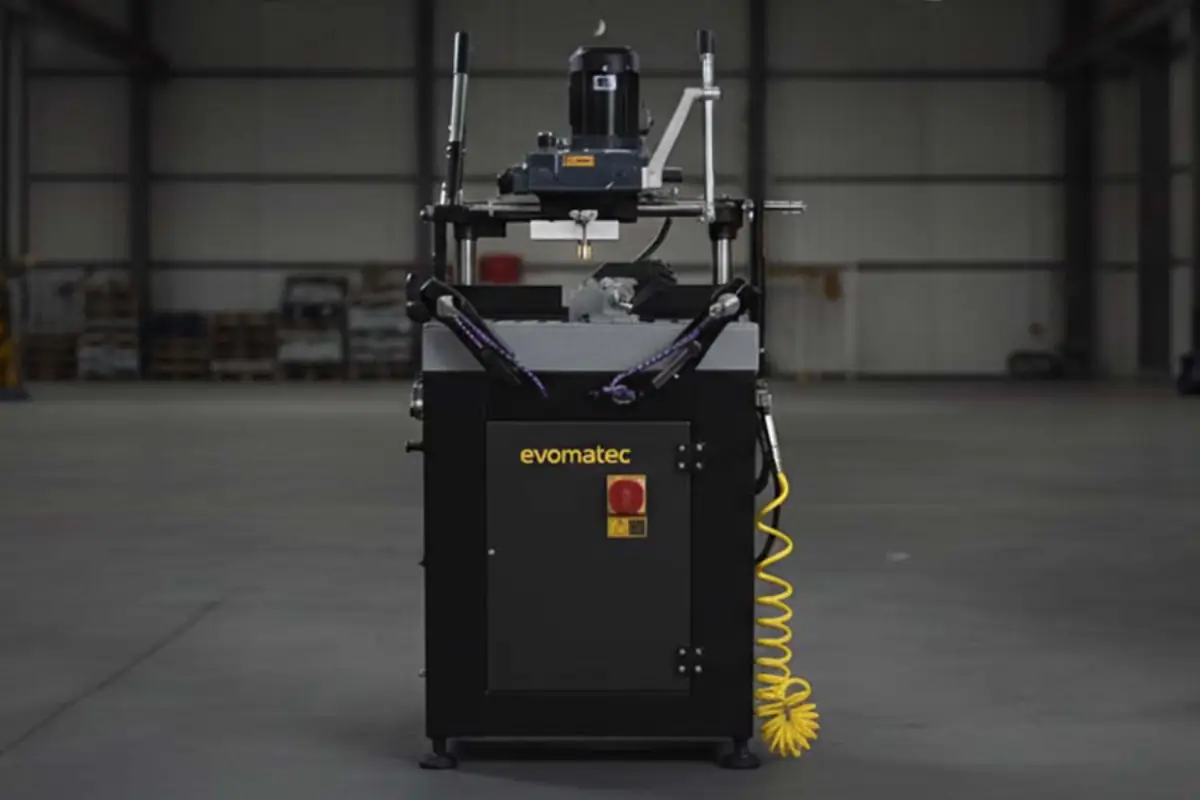

The EVOCOPY II Copy Router for PVC Plastic Profiles with Handle Hole Drilling System by Evomatec represents the new generation of industrial precision machinery for the processing of PVC and plastic profiles used in window, door, and façade manufacturing.
It combines dimensional accuracy, durability, and high productivity with advanced engineering that ensures consistent, burr-free results even under continuous operation.

Designed for industrial-scale applications, the EVOCOPY II integrates Triple-Grip Drilling Technology, a robust cast-iron frame, and ergonomic user control — setting new benchmarks in modern PVC profile machining.
This machine is the ideal choice for manufacturers demanding precision, speed, and reliability in every operation.

High-Precision Milling and Drilling Technology

Handle, Lock, and Drainage Machining

The EVOCOPY II enables precise machining of handle holes, lock housings, olive holes, drainage channels, and various fittings on PVC and plastic profiles.
Its multi-spindle drilling system performs several drilling operations simultaneously, significantly reducing machining time while maintaining perfect repeatability.

Template-Guided Copy System

The template-guided mechanism ensures exact reproduction of drilling and milling patterns, making it ideal for complex profile geometries.
The integrated cooling system prevents heat buildup and ensures long-lasting tool sharpness, resulting in smooth surfaces and clean edges that require no additional finishing.

Industrial Construction and Precision Clamping System

Rigid Machine Frame for Vibration-Free Operation

The EVOCOPY II features a solid cast-iron frame, engineered to absorb vibration and ensure consistent accuracy even in long production runs.
This high mechanical stability guarantees durable performance and long tool life.

Pneumatic Clamping and Dual-Motor Drive

The pneumatic clamping system holds the profile firmly in place during milling and drilling, preventing movement and deformation.
Powered by a 1.1 kW milling motor and a 0.55 kW drilling motor, the EVOCOPY II achieves precise and uniform cutting results, even in heavy-duty production environments.

Technical Specifications

• Milling Motor: 1.1 kW (1.5 HP) | 3,000 rpm

• Drilling Motor: 0.55 kW (0.75 HP) | 1,400 rpm

• Cutter Diameter: 5 mm (standard) / 8 mm (optional)

• Drilling Diameter: 10–12 mm

• Working Stroke (X/Y/Z): 250 × 110 × 115 mm

• Air Pressure: 6–8 bar | Air Consumption: 5 L/min

• Voltage / Frequency: 400 V | 50–60 Hz

• Cooling System: Integrated

• Machine Dimensions: 2,540 × 860 × 1,450 mm

• Machine Weight: 127 kg

Key Advantages of the EVOCOPY II

Highest Precision for Handle and Lock Openings

The precision-guided system ensures millimeter-perfect handle and lock openings, producing exact holes for all types of fittings and accessories.

Triple-Grip Drilling System for Time Efficiency

The innovative multi-hole drilling unit allows multiple holes to be drilled simultaneously — such as handle holes, lock housings, and drainage points — maximizing productivity and minimizing cycle times.

Long-Term Stability and Durability

The heavy-duty cast-iron frame minimizes vibration, resulting in consistent accuracy, longer tool life, and reduced maintenance needs.

Energy Efficiency and Safety

With low air consumption, automatic lubrication, and CE-certified safety systems, the EVOCOPY II ensures sustainable, safe, and compliant industrial operation.

Flexible Machining of PVC and Plastic Profiles

Suitable for PVC window profiles, door frames, façade elements, and customized profile geometries, the EVOCOPY II adapts easily to various shapes and production requirements.

User-Friendly Control Panel

An ergonomic interface provides intuitive operation, fast adjustments, and precise control of all drilling and milling movements — ideal for both manual workshops and automated production lines.

Applications in the Construction Industry

Window Manufacturing

Accurate milling and drilling of handle holes, lock slots, drainage openings, and hardware fittings in PVC window profiles.

Door Production

Precision machining of hinges, locks, and handle zones for PVC and plastic door frames.

Façade Construction

Efficient drilling of mounting holes, drainage channels, and connector slots in façade profiles.

Plastic Profile Production

Reliable, high-speed machining of plastic components and custom profiles with burr-free surfaces and tight dimensional tolerances.

Future-Ready Industry 4.0 Integration

Smart Factory Compatibility

The EVOCOPY II is fully compatible with Industry 4.0 systems, supporting integration into automated and digital production lines.
Its precise mechanics, automation-ready interface, and energy-efficient design make it ideal for manufacturers aiming to improve productivity, traceability, and overall process control.

Scalable for Advanced Production Lines

Whether used as a standalone workstation or part of a complete automated PVC production system, the EVOCOPY II ensures seamless performance and consistent quality output in connected manufacturing environments.

Conclusion – Precision, Speed, and Reliability in Every Operation

The EVOCOPY II Copy Router for PVC Plastic Profiles with Handle Hole Drilling System combines state-of-the-art engineering, industrial strength, and energy efficiency in a single machine.
With its Triple-Grip drilling technology, pneumatic clamping system, and rigid construction, it delivers perfectly clean and accurate machining results in every production cycle.

Whether for handle hole drilling, lock slot machining, or drainage milling, the EVOCOPY II guarantees exceptional precision and repeatability, making it an indispensable asset for modern PVC window, door, and façade profile production.
