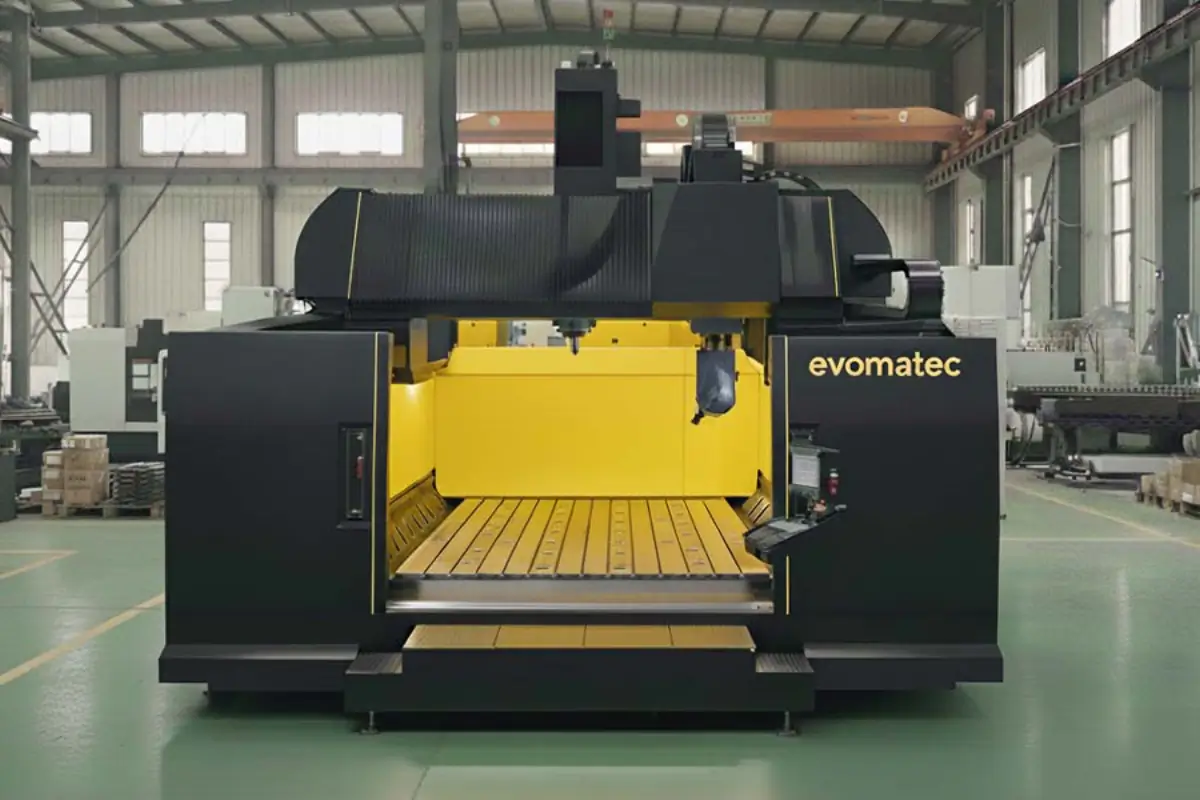

CNC MACHINING CENTER EVO FZ5

CNC Machining Center EVO FZ5 – 5-Axis Monoblock Milling Machine for Maximum Precision and Stability

Technological Perfection in Every Dimension

The CNC Machining Center EVO FZ5 by Evomatec Machine Tool represents the pinnacle of modern 5-axis machining technology.
Constructed as a monoblock milling machine made from high-grade GG30 cast iron, it is engineered to deliver maximum rigidity, dimensional accuracy, and process stability — even when machining heavy workpieces and complex geometries.

With its precise multi-axis kinematics, high-performance spindle up to 12,500 rpm, and a load capacity of 4,000 kg/m², the EVO FZ5 stands for uncompromising performance, precision, and durability — Made in Germany.

Monoblock Cast-Iron Structure – Stability Without Compromise

Each EVO FZ5 is cast in Evomatec’s own foundry.
The machine frame is made from a single piece of GG30 cast iron, stress-relieved by a specialized heat-treatment process.
This monoblock design provides exceptional rigidity and eliminates microvibrations, ensuring the highest accuracy even under dynamic loads.

All machining surfaces are ground on high-precision CNC grinding centers to guarantee perfect parallelism and flatness of the guideways.
The result is long-term dimensional stability, minimal deformation, and excellent surface quality — even during high-performance cutting.

Advanced Cooling System – Thermal Precision on the Micrometer Scale

All axes of the EVO FZ5 are equipped with an integrated water-cooling system embedded directly within the cast frame.
This design prevents thermal expansion during machining of heavy parts and ensures consistent precision even during long operating hours and high-temperature conditions.

Evomatec’s patented casting technology allows uniform heat dissipation throughout the machine body, protecting the drive systems and linear guides from overheating and distortion.

High-Performance Axis Drive Systems – Power Meets Control

The EVO FZ5 features a state-of-the-art linear and rack-and-pinion drive system powered by high-precision servo motors.
All axes are equipped with absolute measurement systems that provide real-time positional feedback, eliminating setup errors and ensuring exceptional repeatability.

This system delivers smooth motion, high acceleration, and outstanding precision — crucial for 5-axis simultaneous machining of complex surfaces and contours.

Technical Specifications at a Glance

Parameter	EVO FZ5 3500	EVO FZ5 3500 XL	EVO FZ5 3500 XXL
X-Axis Travel (mm)	2500	6500	10500
Y-Axis Travel (mm)	3500	3500	3500
Z-Axis Travel (mm)	1400	1400	2350
A-Axis Rotation (°)	±115	±115	±115
C-Axis Rotation (°)	±360	±360	±360
Rapid Traverse (m/min)	30 / 30 / 30	30 / 30 / 30	30 / 30 / 30
Spindle Speed (rpm)	12,500	12,500	12,500
Spindle Power (kW, S1)	54	54	54
Spindle Torque (Nm, S1/S6)	200 / 235	200 / 235	200 / 235
Tool Holder	HSK-A100	HSK-A100	HSK-A100
Positioning Accuracy (mm)	0.012	0.012	0.012
Repeatability (mm)	0.010	0.010	0.010
Table Load Capacity (kg/m²)	4000	4000	4000
Machine Weight (kg)	70,000	120,000	195,000

Fork-Type Milling Head – Power and Precision Combined

At the heart of the machine is the 5-axis fork-type milling head with a spindle speed of up to 16,000 rpm and torque up to 220 Nm.
This spindle delivers consistent cutting power, superior surface finish, and thermal stability — ideal for machining aluminum, steel, titanium, and composite materials.

With a swivel range of ±115° (A-axis) and 360° rotation (C-axis), the EVO FZ5 enables full part machining in a single setup — efficient, precise, and repeatable.

Metrology and Assembly – Precision as a Principle

Every EVO FZ5 undergoes meticulous alignment and calibration using state-of-the-art measuring technology:

Renishaw laser interferometers for positioning accuracy
Niveltronic Bluetooth systems for flatness verification
Atos 3D scanners for geometry analysis
Certified granite reference blocks for axis calibration

These methods ensure tolerances within ±0.01 mm, meeting even the most stringent requirements of aerospace manufacturing.

Premium Components – German Engineering Standards

Evomatec uses components exclusively from leading manufacturers in Germany, Japan, and Switzerland.
All kinematic, hydraulic, pneumatic, and electronic modules are CE- and ISO-certified.

The EVO FZ5 complies with international standards such as VDI-DGQ 3441, ISO 230-2, and CE safety directives, ensuring absolute reliability, safety, and long-term durability.

Simulation, Automation, and Control

The EVO FZ5 machining center is fully Industry 4.0-ready, supporting digital process monitoring, automatic calibration, and 3D machining simulation for collision-free operation.

Compatible CNC systems include:

Heidenhain TNC 640
Siemens 840D SL
Fanuc 31i-B5

Key control features:

Real-time toolpath visualization
Adaptive feedrate control
Automatic thermal compensation
Full ERP/MES system integration

Application Fields of the EVO FZ5

The EVO FZ5 is designed for versatility and precision, making it ideal for:

Tool and mold making: complex cavities, roughing and finishing operations
Aerospace manufacturing: titanium parts, blades, structural components
Automotive industry: aluminum housings, molds, large precision parts
Mechanical engineering: heavy-duty structural and precision parts
Energy and turbine production: large-scale, high-tolerance components

Evomatec – German Engineering at Its Finest

The EVO FZ5 embodies Evomatec’s core values: technical innovation, precision, longevity, and energy efficiency.
From casting and machining to assembly and testing, each unit is manufactured under rigorous quality standards and CE-certified inspection.

With its combination of monoblock cast structure, 5-axis simultaneous machining, and thermal stability, the EVO FZ5 is the ultimate solution for manufacturers demanding perfection — today and for the future.
