4 HEAD WELDING MACHINE FOR PVC PLASTIC PROFILES EVOO IV

4-Head Welding Machine for PVC Plastic Profiles EVOO IV – Four Corners, One Perfect Connection

Technological Precision for Modern Window and Door Manufacturing

EVOO IV – Advanced Welding Technology for Industrial PVC Frame Production

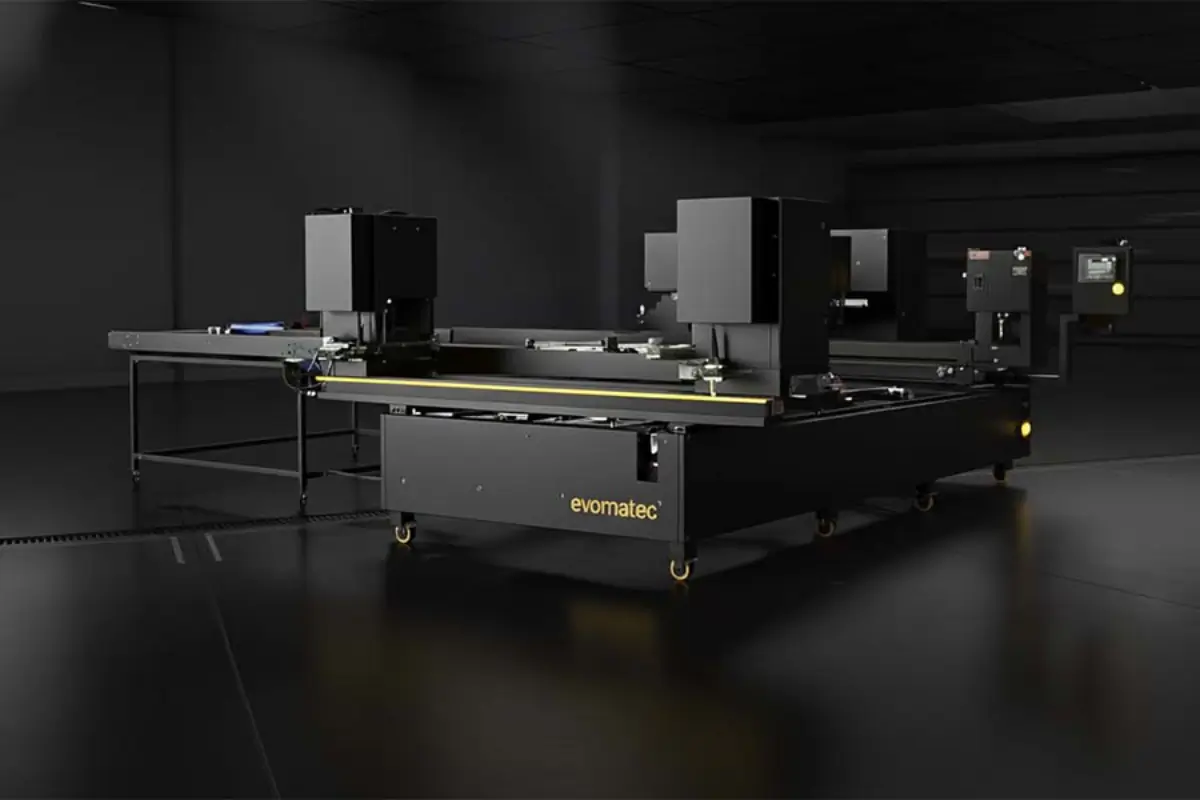

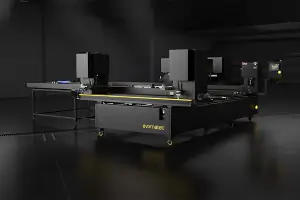

The 4-Head Welding Machine for PVC Plastic Profiles EVOO IV by Evomatec represents the latest generation of industrial welding systems for the manufacturing of PVC window frames, door frames, and sashes.
This four-head PVC welding machine combines digital temperature control, energy-efficient heating systems, and fully automatic process management — all engineered for maximum precision, speed, and durability in serial production.

With its automatic heating and cooling cycle, the machine welds all four frame corners simultaneously in a single operation. The result is uniform, airtight, and high-strength connections across all PVC and plastic profile types — making it the ideal solution for window, door, and uPVC fabrication.

Functionality – Four Heads for Perfect Frame Welding

A 4-head welding machine for PVC windows operates on the principle of simultaneous corner welding. All four profile ends are heated, pressed, and cooled at the same time.
Through digital process control, the system ensures even temperature distribution and controlled pressing pressure, minimizing burr formation, distortion, and energy consumption.

The machine can handle a wide range of profile geometries — from classic PVC window frames to modern door systems. Whether in window manufacturing, door construction, or industrial profile fabrication, the EVOO IV consistently delivers reproducible, high-quality results.

Technical Data and Performance Features

The 4-Head Welding Machine for Plastic Profiles EVOO IV is built to European CE standards, suitable for both small workshops and fully automated production lines.

Technical Specifications

Frame size (min./max.): 350 × 410 mm / 2650 × 4110 mm
Profile height: 40 – 200 mm
Profile width: 30 – 150 mm
Welding angle: 60° – 180°
Weld seam: approx. 0.2 mm
Power: 14.75 kW
Voltage: 400 V / 3 Ph AC
Air pressure: 6 – 8 bar
Frequency: 50 – 60 Hz

These performance characteristics make the EVOO IV an essential tool for production facilities that demand precision, efficiency, and high output capacity.

Fully Automatic Welding Cycle with Digital Control

The EVOO IV executes a fully automated welding process across four precisely controlled phases:

1. Profile Detection and Positioning

The system automatically detects and clamps the inserted PVC profiles in the correct position.

2. Heating

The digitally controlled heating plate ensures uniform heating of welding surfaces between 0 °C and 350 °C.

3. Welding

All four welding heads press the profile ends together simultaneously, guaranteeing perfect angular accuracy and strong, airtight seams.

4. Cooling and Return

After controlled cooling, the system automatically opens and returns to its starting position — ready for the next cycle.

This digital process automation ensures consistent weld quality and maximum repeatability, independent of the operator.

Structural Advantages of the EVOO IV

The 4-Head Welding Machine for Window Frames features a heavy-duty, low-vibration steel frame with precision-ground linear guides and durable Teflon-coated heating plates.
The pneumatic drive system provides even pressure distribution, uniform seam formation, and minimal wear during continuous operation.

Key Advantages at a Glance

Simultaneous welding of all four corners in one operation
Reduced cycle times and high production throughput
Precise control of temperature and pressure
Minimal weld burr (only 0.2 mm) for clean surfaces
Digital process monitoring and data storage
CE-certified safety systems
Energy-efficient operation with automatic shut-off

Application Areas of the 4-Head Welding Machine

The EVOO IV is used across all areas of professional plastic profile fabrication:

Window manufacturing: welding of PVC window frames and sashes
Door production: welding of PVC door frames, side panels, and transoms
Façade construction: processing of large-format PVC profiles for structural systems
Mass production: fast, precise, and repeatable frame fabrication
uPVC processing: efficient welding of modern plastic systems

This 4-head PVC welding machine is a versatile solution for craft workshops and industrial-scale manufacturers alike.

Integration into Automated Production Lines

The 4-Head Welding Machine for PVC Windows and Doors can be easily integrated into fully automated welding and cleaning lines.
Thanks to its digital interfaces, it is compatible with barcode systems, profile management software, CNC machining centers, and production monitoring systems.

Evomatec provides custom integration solutions for complete automatic welding lines in window manufacturing, significantly increasing productivity and efficiency.

Future-Proof Welding Technology from Evomatec

The EVOO IV 4-Head Welding Machine stands for German engineering precision, durability, and maximum energy efficiency.
Equipped with digital process control, adaptive heating systems, and Industry 4.0 connectivity, it ensures outstanding performance and sustainability.

Evomatec continues to innovate with AI-based process analysis, real-time sensor monitoring, and cloud-integrated quality management, shaping the next generation of intelligent PVC welding machines.

Conclusion – Efficiency, Precision, and Productivity in One System

The 4-Head Welding Machine EVOO IV from Evomatec combines state-of-the-art welding technology, digital precision, and industrial robustness in a powerful all-in-one system.
It ensures maximum productivity, minimal rework, and flawless weld seams — from the first frame to the last.

Whether in window manufacturing, door production, or industrial series fabrication, the EVOO IV is the professional choice for companies that value quality, speed, and reliability.
