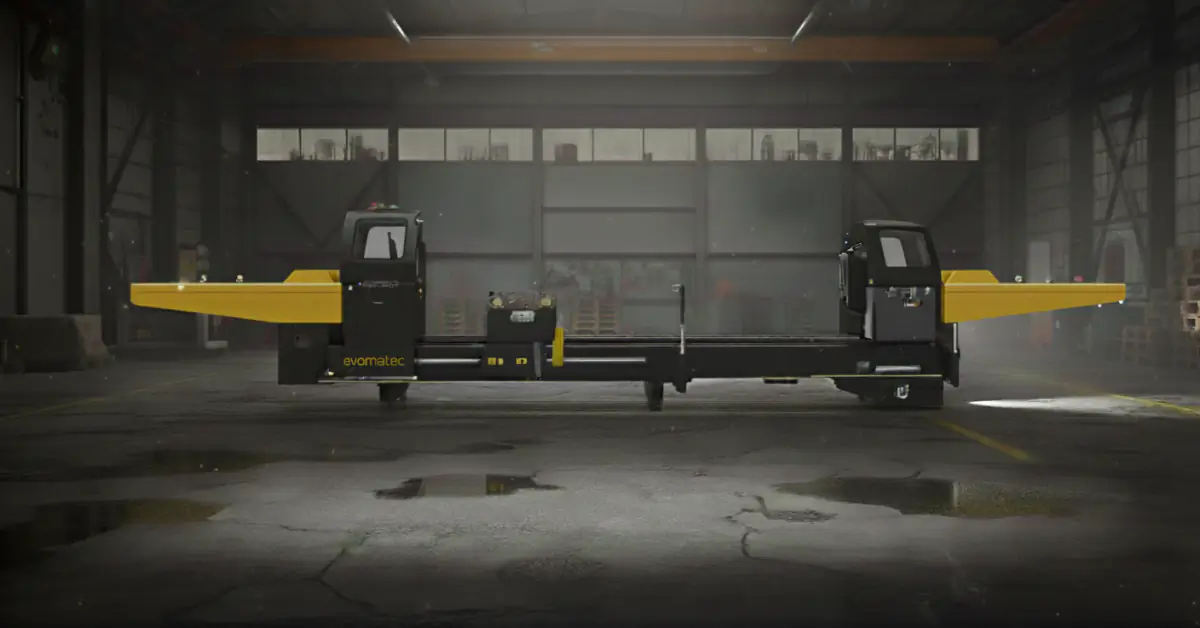

DOUBLE MITER SAW FOR ALUMINIUM PROFILES EVOG IVM

‹ ›

Double Miter Saw for Aluminium Profiles – EVOG IVM

Hydro-Pneumatic Precision, Maximum Power, and Industrial Efficiency

Accurate Mitre Cutting with Industrial Precision

The EVOG IVM double miter saw for aluminium profiles has been specially designed for precise mitre and length cutting of aluminium profiles, meeting the highest standards of industrial profile processing.
It is the ideal solution for window, door, and façade manufacturers who demand exact cutting quality, repeatability, and process reliability.

With two robust saw heads and Ø 450 mm carbide-tipped blades, the EVOG IVM delivers perfect angles, burr-free surfaces, and consistent dimensional accuracy.
Its hydro-pneumatic control allows for fast head positioning between 45° and 90°, while intermediate angles can be manually fixed — perfect for variable profile geometries in industrial applications.

Technology for Precise Mitre Cutting

The EVOG IVM combines a heavy-duty machine base, hydro-pneumatic drive technology, and digital control systems to ensure reproducible cutting results.
The smooth, even feed minimizes vibration, extends tool life, and significantly enhances the surface finish of each cut.

Technical Specifications of the EVOG IVM Double Miter Saw

Standard Equipment

• Two Ø 450 mm carbide-tipped saw blades (HM)

• Pneumatic clamping cylinders (horizontal + vertical)

• Roller conveyor on the movable head for long profiles

• Spray cooling system for burr-free cutting quality

• Digital angle display for precise head positioning

• Full-coverage protective guards in the cutting area

• Hydro-pneumatic feed control for uniform cutting performance

Advantages of the EVOG IVM Double Miter Saw

Hydro-Pneumatic Precision

Automatic head adjustment allows quick angle changes between 45° and 90° with high repeatability.
Intermediate angles can be manually locked precisely — ideal for custom and complex profiles.

Maximum Efficiency with Dual Cutting Heads

Two synchronized saw heads halve the processing time and produce symmetrical, mirror-accurate mitres — perfect for series production and high-precision assembly.

Vibration-Free Construction

The heavy-duty steel frame ensures stable operation, minimizes vibration, and maintains dimensional accuracy — even with large aluminium profiles.

CE-Certified Safety

Equipped with automatic clamping, protective guards, and CE-compliant control systems, the EVOG IVM fully meets European Machinery Directive 2006/42/EC requirements.

Low Maintenance & Long Service Life

High-quality components, durable hydraulics, and easily accessible assemblies minimize downtime and extend the machine’s lifespan.

Energy Efficiency

Optimized hydraulic control and smart automation reduce energy consumption while maintaining top performance — ideal for continuous industrial operation.

Application Areas of the EVOG IVM Double Miter Saw

The EVOG IVM is versatile and engineered to meet the needs of modern aluminium fabrication industries:

• Window Manufacturing: precise cutting of frame and sash profiles

• Door Production: exact 45° and 90° cuts for door frames and thresholds

• Façade Construction: accurate cutting of cover and load-bearing profiles

• Metalworking: suitable for aluminium, PVC, and other light-metal profiles

• Series Production: high repeatability with short cycle times

Thanks to automatic head positioning and intuitive operation, the EVOG IVM is ideal for production lines and high-throughput workshops.

Operation – Precision Through Hydro-Pneumatics

1. Profile Positioning: Aluminium profiles are placed on the support tables and pneumatically clamped.

2. Angle Setting: Heads are hydro-pneumatically adjusted to 45° or 90°, with manual setup for intermediate angles.

3. Cutting Process: The feed system moves the saw blade smoothly through the material with consistent pressure.

4. Spray Cooling: Reduces friction, prolongs tool life, and prevents material deformation.

Result: precise, burr-free, and repeatable mitre cuts with perfect angular accuracy.

Quality, Safety, and CE Compliance

Each EVOG IVM double miter saw is manufactured in accordance with CE safety directives and fully tested before delivery — including hydraulic, electrical, and mechanical calibration.
Evomatec’s stringent quality controls ensure cutting precision, electrical safety, and long-term reliability for industrial applications.

Economic Efficiency and Investment Security

The EVOG IVM is built for longevity and high productivity.
Its hydro-pneumatic automation, fast head adjustment, and robust construction increase efficiency while reducing downtime.

Key benefits:

• Significantly shorter cycle times

• Reduced labor requirements

• Minimized rework and material waste

• Energy-efficient performance

• Low maintenance costs

Evomatec also provides comprehensive support, spare-parts service, and technical training to ensure consistent performance throughout the machine’s lifespan.

Conclusion – Precision, Power, and Efficiency Combined

The EVOG IVM double miter saw for aluminium profiles represents the pinnacle of industrial precision, hydro-pneumatic control, and mechanical durability.
It delivers burr-free, high-accuracy cuts, rapid head positioning, and CE-certified safety, making it ideal for professional window, door, and façade manufacturers.

With its balance of performance, stability, and cost efficiency, the EVOG IVM is the perfect choice for companies seeking high-quality, long-lasting, and productive aluminium cutting solutions.

EVOMATEC – Machines for Precision Aluminium Profile Processing
