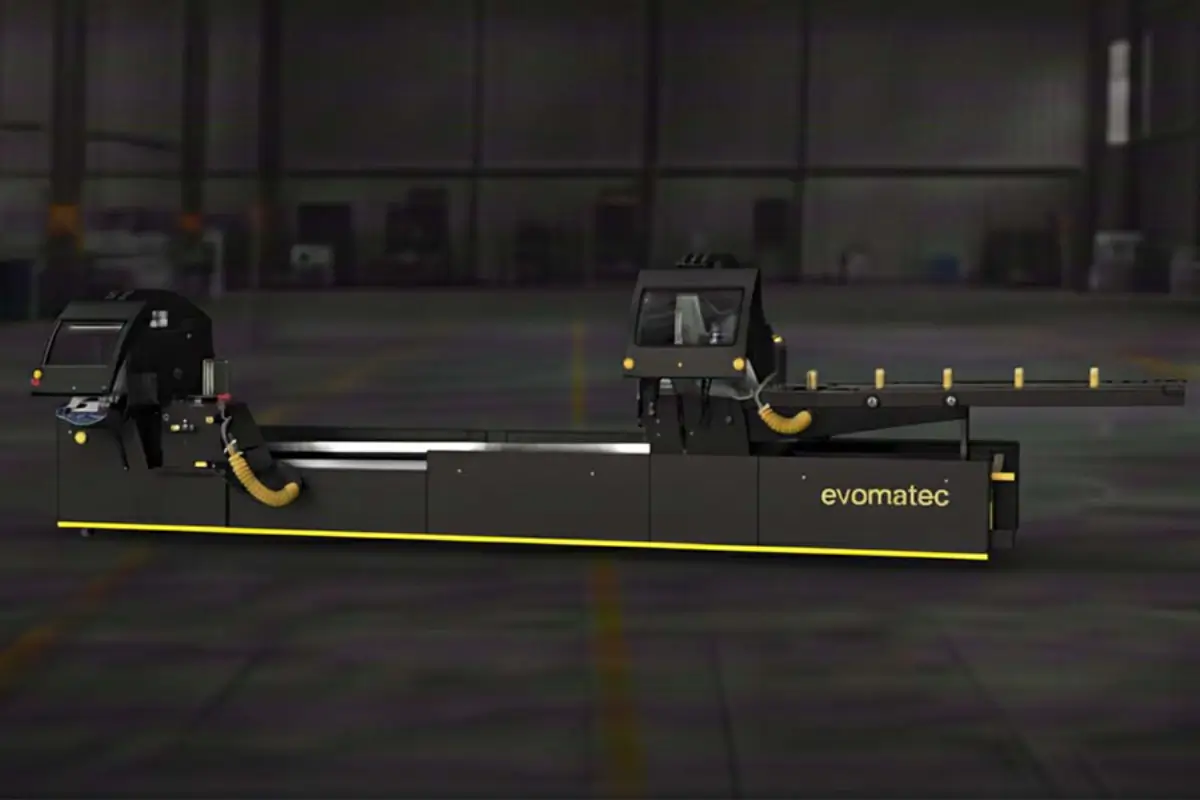

AUTOMATIC DOUBLE MITRE SAW FOR WOOD PROFILES EVOG VSAH

‹ ›

Automatic Double Mitre Saw for Wood Profiles – EVOG VSAH

Maximum Precision, Industrial Performance and Flexible Control for Wood and Wood Profiles

Precise Mitre Cuts for Demanding Wood Profile Processing

The automatic double mitre saw for wood and wood profiles EVOG VSAH by EVOMATEC was developed specifically for precise double mitre saw mitre cut operations and industrial profile cutting. With large-diameter carbide-tipped saw blades, servo-assisted positioning and controlled angle adjustment, it ensures maximum accuracy, repeatability and efficiency – ideal for series production of wooden frames, door and window elements, mouldings and structural wood profiles.

The EVOG VSAH combines robust mechanics, modern display and control technology, as well as energy-efficient drive systems. It was designed to process large profile cross-sections, variable angles and long cutting lengths with maximum stability and speed – perfect for double mitre saw profile cutting wood in continuous operation.

Digital Precision Through Display and Angle Technology

For reproducible results, the EVOG VSAH is consistently designed around precise display and setting technology. The machine operates with double mitre saw digital display and double mitre saw angle display, allowing angles and positions to be set quickly, safely and with repeatable accuracy. The double mitre saw angle adjustment supports standard angles such as double mitre saw 45 degrees and double mitre saw 90 degrees, as well as additional mitre angles for demanding wood joints.

In practice, this produces angle-stable, dimensionally accurate cuts for any profile geometry – whether a classic double mitre saw angle cut, a precise double mitre saw cross cut or a clean separation and length cut.

Angle Variety for Timber Construction, Interior Fit-Out and Special Structures

The EVOG VSAH is designed for variable angle situations. In addition to 45° and 90°, special angles in wood processing can also be mapped precisely, for example double mitre saw 22.5 degrees for special frame corners. Depending on configuration and application, angle ranges for double mitre saw 30 degrees, double mitre saw 60 degrees and rafter geometries are also possible to produce complex components in timber construction with repeatable precision. For demanding roof and stair connections, the machine supports the double mitre saw rafter cut as a precise special cutting operation.

Technical Features of the Double Mitre Saw EVOG VSAH

Standard Equipment

Two Ø 550 mm carbide-tipped saw blades for large cross-sections and high cutting quality

Pneumatic clamping cylinders (horizontal and vertical) for secure fixing during profile cutting

Controlled feed technology for controlled cutting movement and clean wood surfaces

Roller conveyor with movable head for long profiles and series production

Spray or minimum quantity system depending on application for cutting quality and tool life

double mitre saw digital display and double mitre saw angle display for reproducible settings

Complete safety guards in the cutting area

CE-certified safety equipment

Optional Equipment

Barcode printer for cut optimisation and series management

Cut optimisation software with data import via Ethernet/USB

Digital head position display for additional precision

Automatic cut optimisation for material savings

Chip and dust extraction systems for clean operation and long tool life

Advantages of the Automatic Double Mitre Saw EVOG VSAH

1. Digital Angle Control for Reproducible Cuts

With double mitre saw digital display, double mitre saw angle display and precise double mitre saw angle adjustment, angles are set quickly, safely and repeatably. This is ideal for double mitre saw 45 degrees, double mitre saw 90 degrees and special angles such as double mitre saw 22.5 degrees in series operation.

2. High Cutting Capacity for Long Profiles

With a maximum cutting length of 5 050 mm, the EVOG VSAH is predestined for double mitre saw length cutting and large-format double mitre saw profile cutting in wood profiles.

3. Clean Cut Surfaces for Visible Edges

Stable machine design and controlled feed ensure precise edge quality for double mitre saw cross cut, double mitre saw separation cut and sensitive double mitre saw angle cut.

4. Versatile Cutting Types for Wood Profiles

The EVOG VSAH supports different processing types such as double mitre saw mitre cut, double mitre saw angle cut, double mitre saw rafter cut, double mitre saw cross cut and double mitre saw separation cut. This makes it ideal for double mitre saw profile cutting wood and as a double mitre saw for profile cutting in variable production tasks.

5. Intuitive Operation and Short Setup Times

The clear display and operating logic support fast changeovers and safe processes. Especially in series production, this reduces downtime and increases productivity.

Application Areas of the EVOG VSAH Double Mitre Saw

The automatic double mitre saw for wood profiles EVOG VSAH is versatile:

Interior fit-out: precise cutting of mouldings and profiles with repeatable angles

Frame manufacturing: mitres for wooden frames, door and window elements

Timber construction and special structures: variable angle machining and long profiles

General wood profile cutting: efficient processing of profile timber and technical wood profiles

As a double mitre saw for mitre cutting wood, the EVOG VSAH is designed for high fit accuracy and stable angles.

Quality, Safety and CE Conformity

Every EVOG VSAH double mitre saw is manufactured and tested according to strict European quality standards. Evomatec ensures precise calibration, low-vibration cutting movement, electrical and mechanical safety testing, and CE-certified delivery in accordance with EU Machinery Directive 2006/42/EC. A 100% final inspection before shipment ensures long-term precision and reliability in continuous operation.

Cost Efficiency and Investment Security

Thanks to servo-assisted positioning, precise angle technology and long cutting lengths, the EVOG VSAH reduces production times, minimises scrap and improves material utilisation. The combination of stability, efficient drive technology and fast operability makes the machine an economical solution for industrial and craft-based wood profile processing.

Conclusion – Precision, Performance and Flexibility in Perfection

The automatic double mitre saw for wood profiles EVOG VSAH combines modern positioning technology, precise angle display and robust industrial quality. It delivers exact cuts, variable angles, long cutting lengths and CE-compliant safety – ideal for professional woodworking, interior fit-out and series production. As a powerful double mitre saw for profile cutting, it supports both classic double mitre saw mitre cut and demanding double mitre saw rafter cut.

EVOMATEC – Machines for precise wood profile processing.
