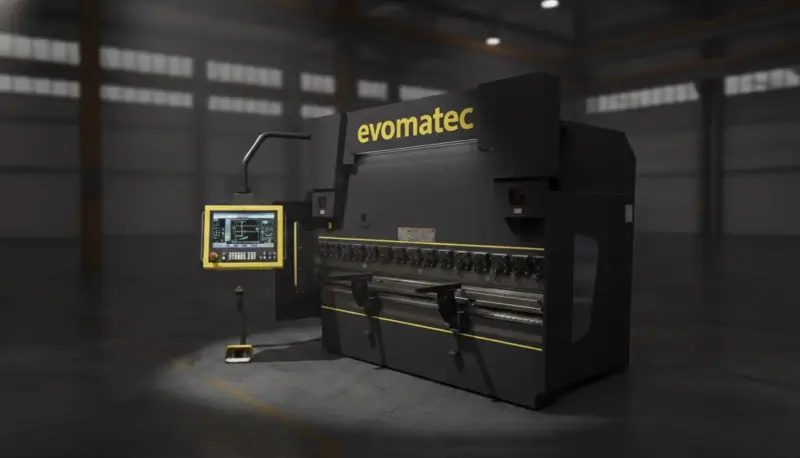

HYDRAULIC PRESS BRAKE EVO IV

‹ ›

Hydraulic Press Brake for Maximum Efficiency and Highest Precision EVO IV

Overview: Hydraulic Press Brake for Fast, Safe and Repeatable Sheet Metal Processing

The EVO IV is a powerful, modern hydraulic press brake for professional manufacturing companies that produce daily under time pressure in sheet metal processing and metalworking and accept no compromises in quality. In fast production environments, every second counts, and every single bending operation must be repeatable and correct. That is exactly what the EVO IV is designed for: high productivity, stable process reliability, comfortable operation and a robust design for continuous operation. As a hydraulic sheet metal bending machine, the EVO IV combines high press force with precise control. Whether bending stainless steel, bending steel or bending aluminium, the machine is designed to deliver consistent angles, clean radii and reliable repeatability. For companies that combine cutting and forming, the EVO IV is an ideal addition to lines for laser cutting and bending, because it is designed for short non-productive times, fast axis movements and process-safe tooling technology.

Why EVO IV: More Performance per Hour, More Control per Bend

High Speed for More Output

The EVO IV is designed as a fast production machine. Short cycle times are created not only by press force, but by optimized motion sequences, powerful axis systems and a control that processes recurring programs efficiently. This way, hydraulic metal bending is not a bottleneck, but a productivity factor.

Extended Stroke and Increased Daylight for Deep Bends and Long Tools

A larger ram stroke and increased daylight create space for demanding parts. This makes it possible to produce deeper bends and high flanges reliably, even with longer tools. This is especially important for Z-shapes and parts with high bends, where operators would otherwise often reach limits.

Precise Bending through Crowning

For consistent angles over the entire bending length, crowning is crucial. The EVO IV is designed so that the deflection of the bending beam can be compensated in a controlled way. This ensures precise results even with long parts, thick materials or high tonnage. This is where the practical value of press brake crowning and a stable frame construction becomes evident.

Standardized Backgauge Axes for Complex Parts

The machine provides high process reliability through a powerful backgauge. Depending on the configuration, solutions as CNC backgauge 4 axes or CNC backgauge 6 axes are available. This enables complex bending sequences, reliable dimensional accuracy and fast repetitions without time-consuming manual re-measuring. Combined with precise control, this creates a true CNC hydraulic press brake.

Front Support Arms for Ergonomic Handling

Front, movable support arms with stops and an easy-to-read scale simplify the positioning of sheets. This increases accuracy, reduces operator errors and improves ergonomics in daily work. Especially in series production and with large parts, this support measurably saves time and reduces scrap.

Low Operating Costs despite High Performance

The EVO IV is designed for economical operation. Energy consumption and maintenance effort are optimized so that the investment pays off quickly. That is why the topic of press brake service, planned maintenance and reliable spare parts supply is so important when companies want to operate a machine productively over the long term.

Safety: Protection Concept for Modern Manufacturing

In practice, a powerful hydraulic press brake must not only be fast and precise, but also safe. The EVO IV is therefore designed with a comprehensive safety concept. This includes protection systems for the operator, such as a finger protection system and a safety light curtain for the body area. This creates a safe workflow with high productivity, matching requirements for CE press brake and press brake safety standard.

Technical Data EVO IV

Selection Guide: Which EVO IV Configuration Fits Your Needs

Determine Bending Length and Press Force Correctly

The right combination of bending length and press force determines process reliability and part costs. Those who regularly produce long parts often ориент themselves to press brake 3100 mm, press brake 4000 mm or press brake 6000 mm. For many companies, the search term press brake bending length 3m is central, because this length covers a very large share of typical sheet metal parts. On the force side, categories such as press brake 100t, press brake 160t, press brake 200t and press brake 300t are particularly relevant. The rule is: Not only material thickness matters, but also material strength, die opening, bending edge length and part geometry. For safe calculations, a design with reserve is recommended so that no limitations arise later.

Options That Make the Difference in Practice

Angle measuring system press brake for stable angle quality, especially with changing material batches Tool clamping press brake for fast tool changeovers and secure tool clamping High-quality backgauge technology for dimensional accuracy in complex programs Stable crowning for uniform results across the entire length

Purchase, Price, Quotation, Delivery Time, Financing, Leasing

When companies search online for buy hydraulic press brake or buy hydraulic press brake machine, it is not only about technical data, but about investment security. Typical topics are: hydraulic press brake price and hydraulic press brake price depending on tonnage, bending length, axes, control, crowning and safety equipment hydraulic press brake quotation with a clear configuration, options and service scope hydraulic press brake delivery time depending on series, special options and equipment scope hydraulic press brake financing and hydraulic press brake leasing for predictable rates and stable liquidity decision between new hydraulic press brake and used hydraulic press brake, including buy used hydraulic press brake, if condition, accuracy, control and safety standards are properly checked For many users, it is also decisive that installation and training are available so that the machine becomes productive quickly. That is exactly what topics such as press brake installation, press brake training, press brake spare parts and press brake service stand for.

Tooling Technology: Punch and Die for Stable Results

The EVO IV is designed for professional tooling applications. This allows standardized tools and customer-specific geometries to be used safely. Search terms such as buy press brake tooling, press brake tools and press brake punch and die show how strongly tooling choice influences the process. A coordinated tooling concept reduces setup time, increases repeatability and lowers scrap in series production.

Applications: Metalworking, Sheet Metal Fabrication, Series Production

The EVO IV is at home in metalworking wherever high volumes, robust process control and consistent quality are required. Typical applications: mechanical engineering, enclosure manufacturing, steel construction components series production with recurring items fabrication with changing material grades, bending stainless steel, bending steel, bending aluminium combinations of cutting and forming, especially in lines with CNC cutting and bending Anyone looking for a powerful CNC hydraulic press brake that can be operated economically and at the same time delivers high precision will find the EVO IV a robust solution for everyday industrial work.

 Further information, configurations and a suitable quotation are available on request.
