The Welding Machine for Window Frames: The Heart of Modern Window Production

The welding machine for window frames is the key component in modern window manufacturing. Without these highly specialized industrial systems, efficient, stable, and weather-resistant production of today’s airtight frames would be unthinkable. It is the technological centerpiece that fuses precisely cut components into a monolithic, dimensionally stable frame. In a sector driven by precision, speed, and flawless aesthetics, the performance of welding technology directly indicates final product quality and a fabricator’s competitiveness.

This article offers a deep, comprehensive look at these fascinating machines. We analyze the physics of the welding process, compare machine types, trace the evolution from manual corners to fully automated zero-seam solutions, and discuss the economics and future trends of this indispensable technology.

What is a welding machine for window frames?

To understand the complexity and importance of these systems, a clear definition and distinction are essential. “Window frame” covers multiple materials, but welding is material-specific.

Basic definition and function

A welding machine for window frames is designed to permanently join the mitered ends (usually 45 degrees) of profiles through a thermal process.

Its core function is to create a material bond. Unlike form-fit (e.g., screws) or force-fit (e.g., clamping) joints, the profile ends are plasticized (melted) by heat and then pressed together at high pressure. Interdiffusion of polymer chains in the melt forms a homogeneous, inseparable joint after cooling—ideally with equal or greater strength than the base material.

Why welding instead of gluing or screwing?

The choice of joining method fundamentally depends on the frame material:

• Wood frames: traditionally joined mechanically (e.g., mortise and tenon, dowels) and glued.

• Aluminum frames: not welded; they use mechanical corner cleats inserted into cavities, then bonded, pinned, or crimped.

• Plastic (PVC) frames: due to thermoplastic properties, only welding provides efficient, stable, and airtight joints.

Thus, in industrial contexts, “welding machine for window frames” almost always refers to a PVC window welding machine.

Focus on plastic (PVC) as the dominant material

Since the 1970s, the rise of PVC windows has been inseparable from welding advances. PVC multi-chamber profiles deliver excellent thermal performance and weather resistance. Mechanical joints (as in aluminum) would not hermetically seal these chambers, leading to air/water leakage and thermal bridges. Welding is the only method that creates a fully sealed, high-strength, automatable corner in seconds.

Historical evolution: from craft to Industry 4.0

The digitally controlled four-head, zero-seam welder is the result of 60+ years of development that transformed window fabrication.

1960s: manual experimentation

Early PVC windows struggled at the corners. Trials included solvent (swelling) welding and crude heaters. The first “welders” were simple manual jigs with a hot plate (“mirror”) placed between profiles, then pressed by hand or lever—slow, inconsistent, and weak.

1970s/80s: revolution via PLCs and pneumatics

Energy crises drove demand for insulating windows. Automation became essential. Pneumatic clamping/feeds replaced manual force. More crucially, programmable logic controllers (PLCs) enabled precise, repeatable control of temperature, time, and pressure—the birth of industrial quality assurance in window welding.

Milestone: multi-head machines

Efficiency leapt from single-head to two- and then four-head machines. Four-head welders could weld all four corners simultaneously, slashing cycle time (≈15–20 min down to <3 min per frame) and boosting dimensional accuracy.

2000s: digitalization and networking

PC/CNC controls replaced purely PLC systems. Machines became connected, receiving order data from ERP and auto-setting parameters.

2010s–today: the zero-seam era

Responding to the boom in colored/foiled profiles, zero-seam technologies eliminated a major aesthetic issue (explained below).

Core technology: how frame welding works

Modern frame welders almost exclusively use hot-plate butt welding (“mirror welding”)—the only process that heats large, complex PVC multi-chamber sections reliably and uniformly.

Physical basics: plasticization and diffusion

• Plasticization: PVC is heated beyond Tg (~80 °C) to ~240–260 °C processing temperatures, becoming a viscous melt.

• Diffusion: Two molten surfaces pressed together allow polymer chains to interdiffuse.

• Cooling: The melt solidifies, forming a homogeneous, material-bonded joint.

Step-by-step welding cycle

Phase 1: profile loading and precision clamping

Miter-cut profiles are loaded and clamped by contour jaws (profile-matched tooling). This prevents collapse of hollow chambers under high joining pressure and ensures exact positioning.

Phase 2: heating (plasticization) – the welding mirror

A PTFE-coated hot plate (mirror) moves between the profile ends and is precisely regulated (e.g., 250 °C via PID). Profiles press against it with a defined heating pressure for a set heating time (≈20–40 s), melting ~2–3 mm into the section.

Phase 3: critical changeover time

Profiles retract slightly; the mirror exits as fast as possible (often <2–3 s). Any surface “skin” formed by cooling/oxidation would block chain diffusion, causing a cold weld (weak joint).

Phase 4: joining and cooling (seam formation)

Profiles are pressed together at high joining pressure, expelling air and mixing melts. Excess material extrudes as the weld bead. The assembly is held under pressure for the cooling time (e.g., 30–60 s) until solidified. Premature release risks tearing or distortion.

The “holy trinity” of welding parameters

• Temperature: Too high burns PVC (HCl release, brittleness, discoloration); too low leads to insufficient fusion (cold weld).

• Time: Heating long enough for depth without degradation; minimal changeover; sufficient cooling under pressure.

• Pressure: Low heating pressure for contact; high joining pressure for interdiffusion (too high = starved seam; too low = incomplete fusion).

Profile recipes differ by geometry, wall thickness, color (heat absorption), and series. Modern machines store hundreds of validated recipes, loaded at a button press or via barcode.

Machine types for window frames

Single-head welders

• Pros: lowest cost, minimal footprint, maximum flexibility (wide angle range).

• Cons: low throughput; accuracy depends on cuts and operator care.

• Use: small shops, repairs, special shapes.

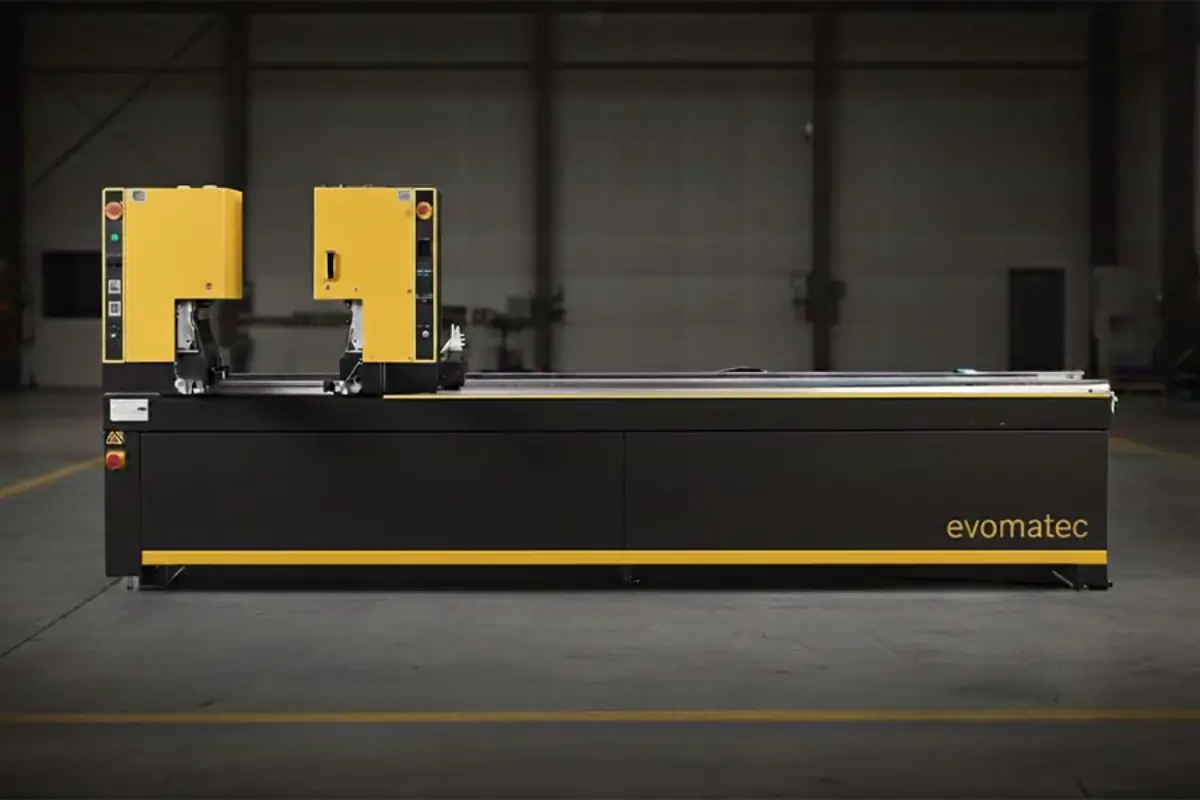

Two-head welders

• Pros: faster than single-head; flexible and more affordable than four-head.

• Cons: still multiple steps to close a frame.

• Use: SMEs needing higher productivity without full four-head capacity.

Four-head welders (industry standard)

• Pros: welds all four corners at once; <2–3 min per frame; best precision.

• Cons: higher investment, space, less flexible for extreme angles.

• Use: medium to high-volume industrial producers.

Six-/eight-head machines

• Pros: maximum output; can include fixed transoms or weld two sashes at once.

• Cons: very high cost; low flexibility; viable only at very large volumes.

• Use: large industrial and project fabricators.

Horizontal vs vertical systems

• Horizontal: the norm; easy loading; fits flat production lines.

• Vertical: space-saving; integrates well with automated logistics and buffers.

Aesthetic revolution: zero-seam technology (V-Perfect)

The “putt-groove” problem with colored/foiled profiles

Traditional welding creates an external weld bead. Corner cleaning then mills away not only the bead but also foil/color, exposing the white/brown core—a visible groove that ruins aesthetics. Manual touch-up pens were laborious, inconsistent, and weather-sensitive.

How zero-seam works

• Mechanical limitation (≈0.2 mm): knives/stops limit melt flow so the external bead is tiny and needs no broad milling.

• Forming/displacement: moving tools push melt inward (into chambers) or into non-visible features (e.g., gasket grooves).

• Thermal forming: specially shaped (often heated) tools “iron” the miter as it cools, bringing foils together perfectly.

Result: an almost seamless, premium-looking corner—no visible groove, easier to clean, and no manual coloring. Manufacturers like Evomatec enable robust, production-safe integration of these solutions.

System context: the weld-and-clean line

A frame welder rarely works alone; it sets the takt for an integrated weld–clean line.

Why corner cleaning is still needed

Even with zero-seam on the visible edge, interior beads (glass rebate, hardware/gasket grooves) remain and must be removed for glazing, seals, and hardware installation.

Corner cleaning machine (corner cleaner)

After a cooling/transfer table, the cleaner clamps the frame and uses knives, drills, and cutters to remove internal beads and (on traditional welds) mill the exterior contour.

Takt-time optimization

Line efficiency depends on matching welding cycle time (e.g., 2–3 min/frame) with cleaner throughput so each frame is cleaned before the next weld exits.

Quality assurance, maintenance, and safety

Typical weld defects and causes

• Cold weld (low strength): too low temp, too short heat time, or too long changeover.

• Burned seam (visual/brittle): too high temp or too long heat time.

• Angle/dimension errors: mechanical misalignment, contaminated contour jaws (bad clamping), too short cooling (distortion).

Wear parts maintenance

• PTFE film: must be clean/intact; residue causes poor heat transfer and marks.

• Contour jaws: keep free of PVC dust/chips for accurate seating.

• Guides & pneumatics/hydraulics: smooth motion and stable pressures are essential.

CE conformity and machine safety

Industrial welders involve >250 °C plates, high forces, and moving masses. CE compliance (guards, light curtains, two-hand controls, redundant E-stops) is non-negotiable. Expert acceptance and periodic inspection safeguard people and ensure legal operation.

Economics: cost and ROI

CAPEX ranges

• Used single-head: from a few thousand euros.

• New, high-quality single-head (angle-adjustable): ~€15,000–30,000.

• New two-head: ~€35,000–70,000.

• New four-head (traditional): ~€90,000–160,000.

• Integrated weld-and-clean line (4-head, zero-seam, automation): €250,000–500,000+.

OPEX factors

• Energy: heating heavy mirrors is energy-intensive; modern insulation/cycles mitigate but don’t eliminate.

• Labor: four-head lines can run with a single operator, slashing labor per frame versus multiple single-heads.

• Wear parts: PTFE films, knives, cutters.

ROI example

Target: 50 frames/day (8-hour shift)

• Single-head: ≈3–4 min/ corner → 12–16 min/frame → 600–800 min for 50 frames → >1 shift with one machine; needs ≥2 machines/operators.

• Four-head: ≈3 min/frame → 150 min total → ~3 hours utilization; one operator easily meets target and can handle logistics/QC.

The four-head investment often pays back quickly via labor savings, higher output, lower scrap, and (with zero-seam) eliminating manual touch-up.

New vs used machines

Used can be viable on tight budgets but risks include mechanical wear, obsolete controls/parts, lack of zero-seam, and outdated safety. Professional inspections help avoid costly mistakes and ensure CE-compliant, quality production.

Window-frame welders in Industry 4.0

• ERP/PPS integration: orders (sizes, profile, color, qty.) flow to the machine; auto-setup and recipe loading.

• Automatic profile ID & data capture: barcodes load programs; machine returns OEE, counts, and alarms for traceability and real-time monitoring.

• Predictive maintenance & remote service: cycle counters and sensors forecast PTFE change; remote diagnostics shorten downtime.

Looking ahead: trends and innovations

• Full automation & robotics: unmanned cells load, weld, transfer to cleaning, and stack frames.

• Energy efficiency & recyclates: faster heat-up, better insulation; robust welding of recycled-core profiles with tighter temperature control.

• AI-driven optimization: vision monitors melt and corner quality; AI tunes parameters in real time.

• Beyond hot-plate welding?: laser plastic welding offers ultra-fine seams but remains costly and challenging for PVC and complex sections.

Choosing the right machine: a strategic decision

• Throughput: units per shift determine head count (1/2/4).

• Flexibility: special shapes vs standard rectangles.

• Aesthetics: processing colored/foiled profiles makes zero-seam a must.

A seasoned partner like Evomatec evaluates not just the machine but the entire workflow—from saw to logistics—and ensures commissioning and service meet quality and CE safety requirements.

FAQ – Frequently Asked Questions

What’s the difference between four-head and single-head welders?
A single-head welder fuses one corner at a time—slow but flexible and affordable. A four-head welder joins all four corners simultaneously—extremely fast, highly accurate, and the standard for industrial series production.

What is “mirror welding” (hot-plate welding) for window frames?
A PTFE-coated hot plate is heated to a precise temperature (≈240–260 °C). Profile ends are pressed against it until plasticized, the plate is quickly withdrawn, and the molten ends are pressed together under pressure until they cool, forming a homogeneous, inseparable joint.

Why is zero-seam technology important for colored frames?
Traditional welding creates an external bead that, when cleaned, removes foil/color at the corner and exposes the core. Zero-seam (e.g., V-Perfect) directs/limits melt so the visible edge appears seamless, eliminating manual color touch-up and delivering premium aesthetics.
