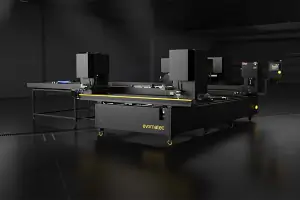

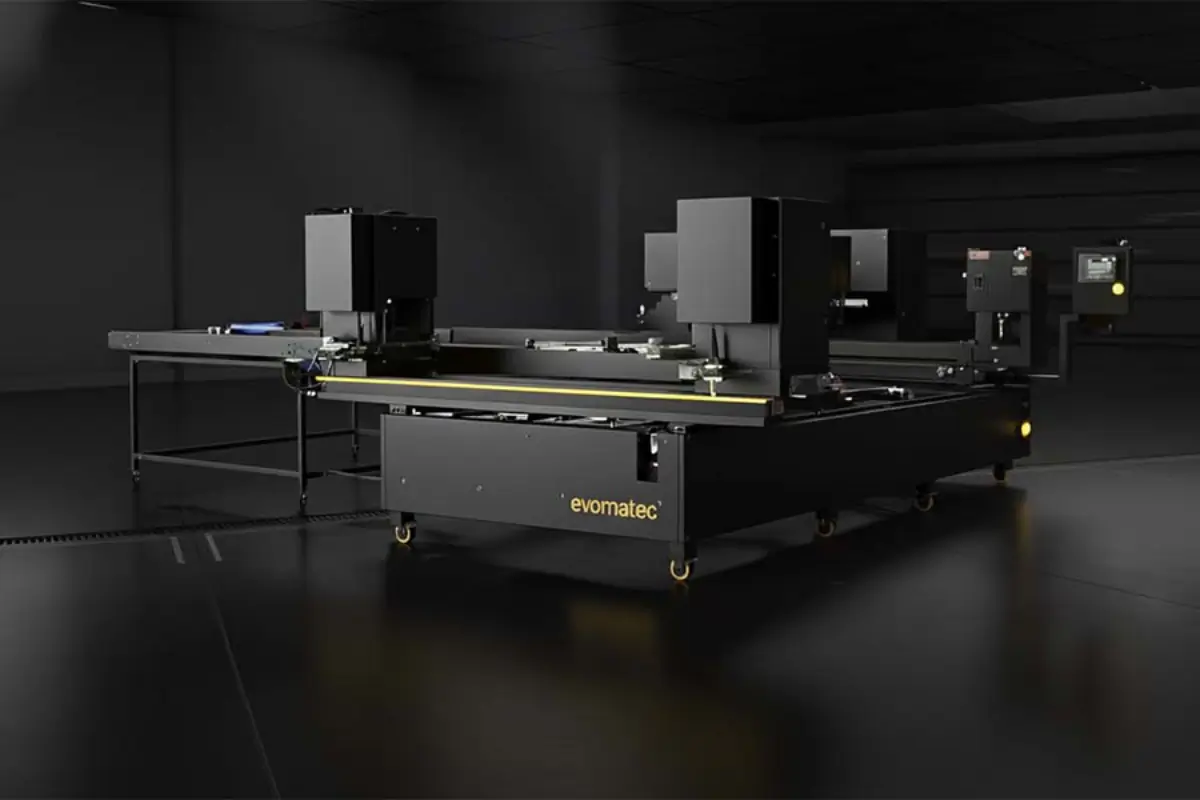

The PVC Profile Welding Machine: The Core of Modern Plastic Fabrication

The PVC profile welding machine is the technological backbone of the modern plastic window and door industry as well as numerous other sectors that depend on the precise joining of profiles. These advanced systems are responsible for converting individually cut PVC profiles into a monolithic, permanently sealed and structurally stable frame. In a world driven by efficiency, precision and flawless aesthetics, the performance of the welding technology is a decisive factor for both the end-product quality and the economics of the entire manufacturing line.

From the flexible single-head machine for custom fabrication to the fully automated four-head weld-and-clean line with zero-seam technology — the evolution of these machines has revolutionised industrial production. This article dives deep into the technology, functionalities, different machine types and future prospects of the PVC profile welding machine, serving as a comprehensive guide for professionals and interested readers alike.

---

What Is a PVC Profile Welding Machine?

To understand the complexity of these systems, a clear definition of their function and differentiation from other joining methods is required.

Definition and Core Function

A PVC profile welding machine is a stationary industrial installation specifically designed to join profiles made of thermoplastic plastics — primarily rigid polyvinyl chloride (PVC-U) — into indissoluble connections. The most common application is the fabrication of 90-degree mitred joints for window and door frames.

The core function is material-bonded joining (also called “fusion bonding”). Unlike mechanical (screws) or force-fit (clamps) connections, the profile ends are plasticised (melted) by heat and then pressed together under high pressure. Through the intermolecular diffusion of polymer chains in the melt a homogeneous, inseparable joint forms that often exhibits higher strength than the base material itself.

Why Welding and Not Gluing or Screwing?

The choice to weld PVC profiles is a technical necessity driven by the material and profile geometry.

• Mechanical joining via screws/brackets: PVC window profiles are hollow-chamber systems. These chambers are essential for thermal and acoustic insulation as well as for steel reinforcement in structurally relevant profiles. A mechanical corner connection (like used for aluminium windows) would not hermetically seal those chambers. The result: water or air ingress, massive thermal bridging, and insufficient corner strength.

• Adhesive bonding: While high-performance adhesives are used in automotive applications, they are not suitable for window manufacturing. The adhesive process is slow (curing time), messy and requires extremely strict process control (surface cleanliness, dosage). Moreover, a bonded joint rarely delivers the long-term durability and weather‐resistance of a homogeneous welded seam.

• Welding, by contrast, delivers a fully sealed, highly stable and automatable corner joint for hollow-chamber PVC profiles in seconds.

---

Why PVC Dominates Profile Applications

Although welding machines exist for various thermoplastics (e.g., PE, PP), in industrial practice the term “profile welding machine” is usually synonymous with PVC. Rigid PVC (PVC-U) dominates due to its excellent weather resistance, formability, durability, cost-effectiveness and insulating properties — making it the prevalent material in window and door construction as well as many building profiles (e.g., cable trays, claddings).

---

Historical Evolution: From Manual Joining to Industry 4.0

The modern digitally-controlled PVC profile welding machine is the result of a more than 60-year evolution, closely tied to the success of the plastic window.

The 1960s: Manual Experimentation

When the first PVC windows entered the market in the 1950s and 60s, corner joining was the Achilles’ heel. Experiments included solvent welding (chemical swelling) or simple heating devices. The first “welding machines” were largely manual: an operator held a hot plate (“mirror”) between the profiles and pressed them together manually or via lever. Quality was inconsistent, strength unreliable and cycle times long.

The 1970s/80s: Boom of PVC Windows & the Need for Automation

Driven by the oil crises and surging demand for insulating building materials, PVC windows exploded in popularity. To meet demand, automation became essential.

Pneumatic clamping and pushing cylinders replaced manual force. The introduction of programmable logic controllers (PLCs) allowed precise and repeatable control of the key parameters—temperature, time and pressure—marking the beginning of industrial-grade quality assurance in the window industry.

Milestone: Multi-Head Machines

The next revolution was productivity. Instead of welding one corner at a time (single-head machine), machines with two and then four welding units were developed. A four-head PVC profile welding machine could weld all four corners of a window frame in one operation — drastically reducing cycle time and dramatically improving dimensional accuracy and angle precision.

The Digital Revolution: From PLCs to Networking

In the 2000s the PLC controllers shifted towards PC-based or CNC control. Machines became networked, could receive job data from production planning systems (ERP) and set parameters automatically. The latest development is zero-seam technology, the response to the rising demand for coloured and laminated profiles.

---

How Does It Work? Hot-Plate Butt Welding (Mirror Welding)

Almost all PVC profile welding machines operate on the principle of hot-plate butt-welding, commonly known as mirror-welding. It is the only method that can reliably and uniformly heat complex hollow-chamber profile cross-sections.

Physical Principles: Plasticising and Diffusion

The process utilises the thermoplastic nature of PVC.

• Plasticising: The PVC is heated above its glass transition (approx. 80 °C) and further up to around 240-260 °C for processing. The material becomes a viscous melt.

• Diffusion: When two melted surfaces are pressed together under pressure, the polymer chains of both parts inter-mingle (inter-diffusion).

• Cooling: Upon cooling, the melt solidifies — the previously separate polymer chains are now locked together. The result: a homogeneous, material-bonded connection.

The Welding Cycle Step-by-Step

A complete weld cycle, which on modern machines may take only 1.5–3 minutes depending on profile and machine, is a highly precise process.

1. Profile loading and precision clamping – Cut profiles (often mitred at 45°) are loaded and clamped in contour jaws (moulded to the exact profile shape). This prevents collapse of the hollow-chamber structure under high joining pressure.

2. Pre-heating (plasticising) – The welding mirror – A heated metallic plate (mirror) with a PTFE/non-stick coating is heated and brought between the profile ends. The profiles are pressed against it under pre-heat pressure; heat penetrates ~2-3 mm into the material over ~20-40 seconds.

3. Switch-over time – critical moment – After the pre-heat time, the profiles retract a small amount, the mirror withdraws as fast as possible (often <2–3 seconds). This change-over time is the most critical parameter: if the molten surfaces cool or oxidise, they cannot properly fuse, resulting in a “cold weld.”

4. Joining & Cooling – Immediately the melted ends are pressed together under high joining pressure, forcing out air, mixing the melts, forming the molecular bond. The excess melt is expelled as the weld bead. The profiles remain clamped under pressure for the defined cooling time (e.g., 30-60 seconds) until the joint stabilises and the frame is dimensionally fixed.

5. Weld bead – The expelled melt forms the characteristic weld bead (weld burr). A consistent bead is a quality indicator but also presents functional and aesthetic challenges subsequently.

---

The Parameter Trilogy: Temperature, Time, Pressure

Quality of the weld is not determined by the machine alone but by the precise interplay of three parameters for each profile system:

1. Temperature: Mirror temperature must be within a narrow range. Too high → material degradation, HCl release, brittle joint. Too low → incomplete fusion, weak “cold weld.”

2. Time: Includes pre-heat time, switch-over time and cooling time. Each depends on profile geometry, wall thickness, colour and ambient conditions.

3. Pressure: Includes pre-heat pressure and joining pressure. Pre-heat pressure ensures contact with mirror; joining pressure ensures inter-diffusion and elimination of defects. Incorrect pressure leads to starved joints or insufficient mixing.

---

The Weld Bead: Indicator and Challenge

Though a consistent weld bead indicates correct process parameters, it is also a challenge:

• Functional issue: Inside a window frame some bead must be cleaned so that the glazing and hardware fit correctly.

• Aesthetic issue: On exterior visible surfaces the bead can look unsightly and requires post-processing.

This is why cleaning (corner-finishing) machines came into standard use, and why zero-seam technologies were developed.

---

Machine Types: The Right Solution for Every Need

The market for PVC profile welding machines is segmented by required productivity, flexibility and automation level.

Single-Head Machines (1-Head)

• Cycle: one corner at a time; 4 operations for a full frame.

• Advantages: low investment, small footprint, high flexibility (custom shapes, repairs).

• Disadvantages: low throughput, high labour cost per unit, dimensional accuracy highly dependent on operator skill.

• Ideal for: small shops, special build operations.

Two-Head Machines (2-Head)

• Two welding units: either in 90° corner arrangement (V-weld) or parallel for mullions/T-profiles.

• Advantages: faster than single-head, more flexible than four-head, moderate investment.

• Disadvantages: still requires multiple passes for full frame, dimensional accuracy less than four-head.

• Ideal for: SMEs requiring higher output but not full four-head scale.

Four-Head Machines (4-Head) – Industrial Standard

• Four welding units in square arrangement; full frame welded in one cycle.

• Advantages: maximum throughput (often <3 minutes per frame), highest dimensional accuracy and angle precision.

• Disadvantages: high investment, large footprint, less flexible for special angles (though modern machines often offer angle variation).

• Ideal for: industrial window manufacturers with medium/high volume.

Six-/Eight-Head Machines (6-Head / 8-Head) – High Output Category

• Designed for mass production: e.g., a six-head machine might weld a full frame including a fixed mullion; eight-head machines can weld two sash frames or complex doors simultaneously.

• Advantages: highest output per time unit.

• Disadvantages: very high investment, minimal flexibility, only economical for very large volumes of identical parts.

• Ideal for: large-scale industrial or facade producers.

---

Horizontal vs Vertical Systems

Besides head-count, machines differ by orientation:

• Horizontal: Profiles lie flat; the most common arrangement due to ease of loading and integration into flat production lines.

• Vertical: Profiles stand upright; this layout is often more space-efficient and better suited for advanced logistics integration (buffer stores, transfer carts). Gravity can aid positioning.

---

Dominant Application: Window Industry Specialisation

Although the term “profile welding machine” is broader, the key driver is still the window and door industry. The welding machine is the bottleneck and major quality control point of the production chain.

---

Aesthetic Challenge: Coloured & Laminated Profiles

The success of the PVC window also brought a new aesthetic demand. White profiles had been standard; trend-colours (e.g., anthracite) and wood-grain decors introduced significant new challenges.

Problem: Traditional welding produces a visible weld bead (e.g., 2 mm height). The subsequent cleaning step removes the bead but also part of the décor foil or surface layer, exposing the underlying (often white) PVC core. The result is an unsightly “socket” groove at the mitre.

Manual workaround: expensive, inconsistent and weather-sensitive touch-up with correction pens.

---

Revolution: Zero-Seam Technology (V-Perfect / Seamless Welding)

Machine-builders responded with zero-seam technology, often marketed as V-Perfect, seamless welding or contour-following welding.

How Zero-Seam Works

Various technical approaches are often combined:

• Bead limiting (e.g., 0.2 mm): Simple form: blades or limiters at the hot plate or jaws restrict excess melt to a minimal amount. A barely visible seam remains and requires no cosmetic cleaning.

• Forming/displacement: Advanced machines use movable tools to direct the molten material inward (into chambers) or into unseen cavities, avoiding exterior bead.

• Thermal forming (V-Perfect): Special heated tools “iron” the mitre during cooling, aligning the foil edges perfectly. Extremely precise mitre cutting is required.

Benefits of Seamless Corners

• For manufacturers: eliminates manual colour touch-up, reduces labour cost, enhances process reliability, enables premium products.

• For end-customers: visually flawless corners, higher perceived value, easier cleaning (no groove for dirt accumulation).

Companies such as Evomatec have pioneered these high-precision, process-secure machine solutions, giving window manufacturers access to market-leading edge technology.

---

Integration into Production Line: Weld-and-Clean

A PVC profile welding machine is rarely used in isolation industrially — it is the pace-setting actor in a weld & clean line.

Why it is rarely standalone

Even with zero-seam external corners, internal weld beads (in the glazing rebate, hardware rebate, gasket groove) still form and must be removed so that glass, gaskets and hardware can be installed correctly.

Corner-cleaning machine (Corner Finisher)

Immediately after the welding machine (often via a cooling table or automatic transfer system) the frame is passed to the corner-cleaning machine. The frame is clamped and then processed by multiple tooling (knives, cutters, drills) to clean and finish all corner areas in seconds.

Coordination and Takt Time

The efficiency of the entire line depends on how well the welding and cleaning machines are synchronised. The welding machine’s cycle time (e.g., 2-3 minutes per frame) sets the pace. The cleaner must process all four corners within that same timeframe.

---

Quality Assurance, Maintenance and Safety

A PVC profile welding machine is a precision instrument. It will only consistently deliver high results if properly maintained and calibrated.

Exact parameterisation (Recipe Control)

As previously stated, the “recipe” (temperature, time, pressure) is everything. A window manufacturer often processes multiple profile systems (5-chamber, 7-chamber, door profile). Every profile requires a validated welding program in the machine control. Quality assurance begins with precise parameter determination, often validated through destructive corner strength testing.

Common fault sources and maintenance

• PTFE (Teflon) coating: The non-stick layer on the welding mirrors is the key wear part. It must be checked daily; burnt PVC residues degrade heat transfer and cause optical defects. The film must be replaced regularly.

• Clamping jaws (contour jaws): PVC dust or chips accumulate and impair profile positioning.

• Guides and pneumatics/hydraulics: All moving elements must operate smoothly and precisely; pneumatic pressures must remain constant to maintain correct pre-heat and joining forces.

CE-compliance and operational safety

Industrial welding machines involve serious risks: >250 °C temperatures, high joining forces (several tonnes), fast-moving heavy assemblies. Compliance with European machine directives (CE) is mandatory. Necessary features include: protective enclosures, light-curtains, two-hand operation for loading, emergency-stop circuits. During acceptance or modernisation, highest expertise is required. Based on our extensive project experience at Evomatec, we ensure all inspections cover quality and CE-compliant safety with utmost care.

---

Economic Considerations: Costs, ROI & Efficiency

Acquiring a PVC profile welding machine is one of the largest single investments for a window or profile manufacturing facility.

Acquisition costs (CAPEX) summary

The investment varies widely with head count, automation level and zero-seam capability:

• Used single-head machines: from a few thousand euros.

• New high-quality single-head (angle-adjustable): ~€15,000 – €30,000.

• New two-head machines: ~€35,000 – €70,000.

• New four-head machines (standard, conventional): ~€90,000 – €160,000.

• Integrated weld-and-clean line (4-head, zero-seam, automation): ~€250,000 – €500,000+.

Operating costs (OPEX): Energy, Personnel, Maintenance

Investment is only half the equation—ongoing costs are critical:

• Energy: Heating large welding mirrors is the primary power draw. Modern machines have optimised heating cycles and insulation, but consumption remains significant.

• Personnel: The biggest saving potential. A four-head line ideally requires only one operator, whereas equivalent production on single-head machines needs multiple operators.

• Consumables: Regular exchange of PTFE films, knives and cutters in the corner-cleaning machine.

ROI Calculation Example

Suppose a plant needs to produce 50 window frames per day (8-hour shift).

• Scenario 1: Single-head machine
  Cycle time per corner: ~3-4 minutes (incl. handling)
  Per frame (4 corners): ~12-16 minutes
  For 50 frames: ~600-800 minutes (10-13 hours) – not feasible in one shift with one machine; would need at least two machines and two operators.

• Scenario 2: Four-head machine
  Cycle time per frame (all 4 corners welded simultaneously): ~3 minutes (incl. handling)
  For 50 frames: ~150 minutes (~2.5 hours)
  One machine, one operator covers the shift easily and still has time for other tasks (logistics, quality control).
  Investment in the four-head machine often pays off quickly from labour savings and increased production capacity.

New vs Used: What to consider?

Used machines can provide a cost-effective entry point, but carry risk:

• Mechanical wear: Guides and spindle may be worn, leading to dimension errors.

• Old control systems: Spare parts for outdated PLC generations may be unavailable.

• Technology gap: Rarely support zero-seam.

• Safety compliance: Older machines may not meet current CE standards.
  A professional inspection is mandatory. With our broad experience we ensure each review covers full CE compliance and production quality in detail.

---

Future Outlook: PVC Profile Welding in Industry 4.0

The development of PVC profile welding machines is far from complete. The “smart factory” trends shape the next generation of these systems.

Full Automatisation & Robotics (Unmanned Welding Cells)

The next step is the “lights-out” welding cell: robot arms load profiles from the saw into the welding machine, remove finished frames, pass them to the corner-cleaner, stack them on carts or transfer them to the next station.

Networking, Data Capture & Predictive Maintenance

The welding machine is fully integrated into digital production planning (ERP/PPS). A barcode scanner reads the profile label on entry; the correct “recipe” is loaded and dimensions set automatically. Simultaneously the machine sends status data (OEE, counts, faults) back to the control centre. Sensors monitor wear parts (e.g., PTFE film) and forecast replacements (predictive maintenance) before quality degradation occurs.

Energy Efficiency & Sustainability (Welding Recycled-Core Profiles)

With rising energy costs, the efficiency of heating elements is optimised (faster heat-up, better insulation). Another trend: welding of profiles with recycled-core material (outer layer new material, inner core recycled PVC). These profiles melt differently and demand sophisticated temperature control.

AI-Assisted Process Optimisation

The future is the self-optimising machine. Vision systems (optical inspection) or melt-viscosity sensors could detect deviations (e.g., due to material batch variation) in real time. An artificial intelligence engine might adjust welding parameters (temperature, pressure) dynamically to guarantee a perfect joint.

New Joining Technologies

Although mirror-welding dominates today, alternatives are under research. Laser welding of plastics offers potential for ultra-fine seams—but for complex profile geometries and PVC (which absorbs lasers poorly) it remains expensive and technically challenging.

---

Evomatec as Partner for Modern Profile Fabrication

Choosing the right PVC profile welding machine is a strategic decision that goes far beyond the machine purchase. It requires a deep understanding of the entire process—from saw to logistics.

As an experienced machine-builder partner, Evomatec analyses your precise requirements: target unit volumes, profile types, zero-seam strategy. Based on that we configure not just a machine but a holistic production concept.

A machine is only as good as the service behind it. Our years of project experience guarantee that all commissioning, service and inspections are conducted under the strictest quality and CE-safety standards.

---

FAQ – Frequently Asked Questions

What is the difference between a single-head and a four-head PVC profile welding machine?

A single-head welding machine welds only one corner at a time. The operator must load and position the frame four times manually. It is slow but flexible (ideal for custom angles) and cost-effective for small volumes.

A four-head welding machine welds all four corners of a frame (for example a window frame) simultaneously in one cycle. It is extremely fast, dimensionally precise and the standard for industrial serial manufacturing.

What does “mirror-welding” (hot-plate butt welding) mean for PVC profiles?

Mirror-welding is the standard joining process for thermoplastic profiles. A “welding mirror” (a flat, PTFE-coated heating plate) is heated to a precise temperature (e.g., 240-260 °C for PVC). The two profile ends are pressed against it until they plasticise. The plate is then quickly withdrawn and the molten ends are pressed together under pressure until they cool and form a permanent, homogeneous material bond.

Why is “zero-seam” technology important for coloured PVC profiles?

With traditional welding a weld bead (melt surplus) occurs. For coloured or laminated profiles (e.g., wood-grain) this bead must be milled off in a subsequent cleaning process, removing the colour or foil layer at the corner and exposing the (often white) PVC core. This visible groove spoils the aesthetics. Zero-seam technology (e.g., V-Perfect) is a modern welding method that guides the weld surplus inward or shapes it so that the foil edges meet cleanly. The result is an optically flawless, clean corner that requires no manual touch-up.

---
